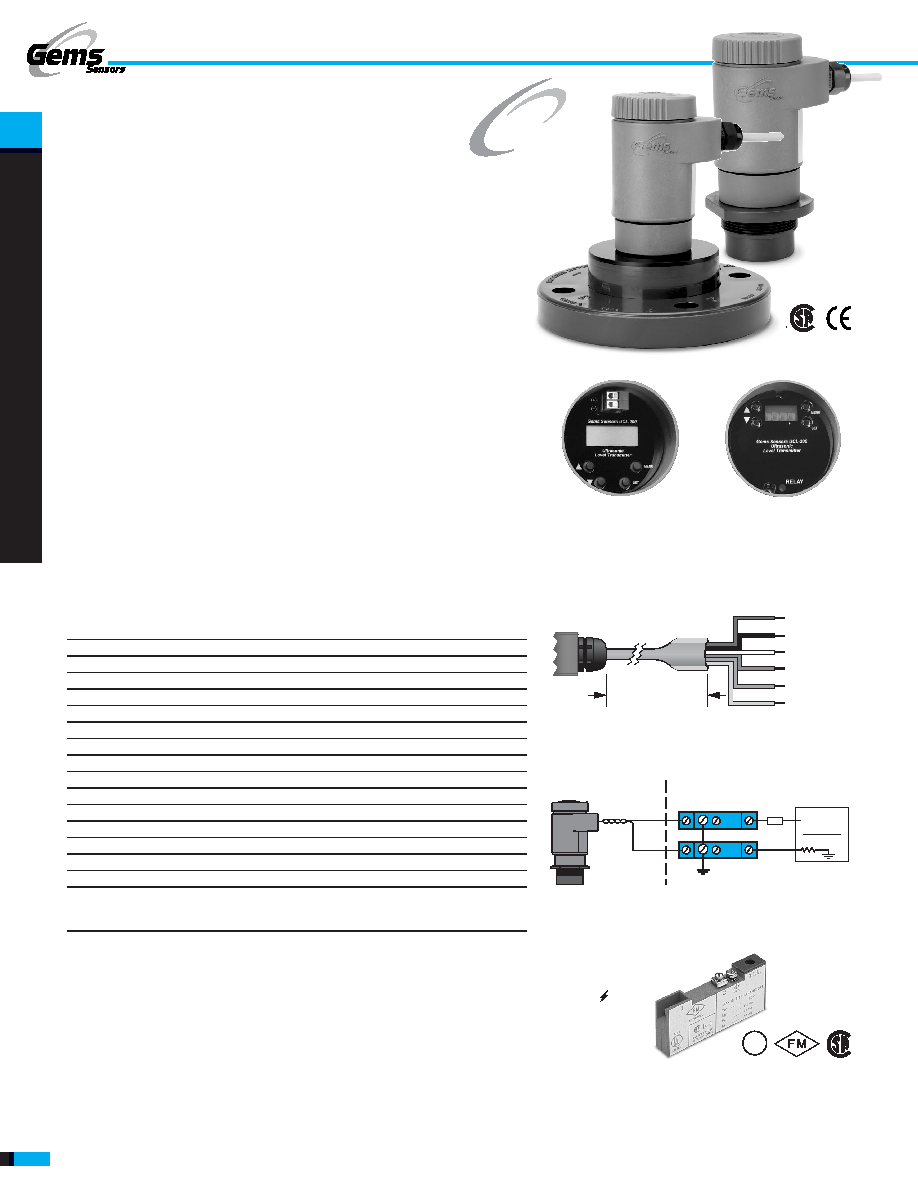

LEVEL
SENSORS
–
CONTINUOUS
www.gemssensors.com
C-26
LEVEL
SENSORS
–
CONTINUOUS
C-27
RED (+)
BLACK (-)
WHITE (SIGNAL)
BLUE (COM)
GREEN (NC)
YELLOW (NO)
9 CABLE (228 mm)
FUSE
HAZARDOUS
AREA
NON-HAZARDOUS
AREA
DC POWER
SUPPLY
SIGNAL
RETURN
BARRIER
( + )
( - )
2
1
3
2
1
3
LOAD
UL
New!
UCL-200 Premier Continuous
Ultrasonic Sensors
Accuracy of ±0.25%
Easy push-button calibration
Automatic temperature compensation over entire range
Filtration eliminates false echo signals
Small beam (8°) allows installation in tight spaces
Our premier ultrasonic sensors are available in three models:
Intrinsically Safe (201001): This two-wire model provides non-contact
measurement up to 18 feet. Approved for use in Class I, Groups A, B,
C and D; Class II, Groups E, F and G; Class III; T3C environments, the
transmitter is an excellent choice for use with solvent, hydrocarbon and
petroleum type liquids.
General Purpose with Relays (201002): This three-wire model provides
non-contact measurement up to 24.5 feet and features an integral relay
for pump, valve or alarm control. This transmitter is an excellent choice
for applications with dirty, coating, scaling or corrosive type liquids such
as wastewater, crude oil or wax.
Long Range with Relays (201003): This flange mounted, three-wire
model provides non-contact measurement up to 40 feet. Its deeper
measuring range makes this general purpose transmitter ideal for large
bulk storage tanks, water or chemical reservoirs and waste stations.
Media examples include chemicals, acids and slurries.
Specifications
Accuracy
±0.25% of span
Resolution
0.125
Output
4-20mA
Beam Width
8-degree conical
Failure Mode
22mA
Supply Voltage
14 to 36 VDC (Intrinsically Safe version to 32V)
Pressure
30 psi @ 77°F
Temperature
-40°F to +140°F (-40°C to +60°C)
Temperature Compensation
Automatic over entire range
Enclosure Rating
NEMA 4X (IP 65)
Enclosure Material
Polypropylene
Transducer Material
PVDF
Calibration
Push button
Display units
Inches (cm)
Conduit Connection
0.5 NPT
CE Compliance
EN 50082-2 immunity
EN 55011 emissions
ENN 61010-1 safety1
Notes:
1. Not applicable to Part Number 201001.
LCD display on
Part Number 201001
LED display on
Part Numbers
201002 and 201003
Wiring Diagram
SPDT Relay
Part Numbers 201002 and 201003
Intrinsically Safe
Part Number 201001
The exceptionally
compact, almost
“wafer-thin”
design of GEMS 65800 Series zener barriers saves
space and simplifies installation. They limit D.C.
voltage and current to the hazardous area and provide
a path for fault current. Encapsulated construction is
impervious to dust and moisture.
Part Number
111954
