| 型號： | 203206 |
| 廠商： | ERNI ELECTRONICS INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 8 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK |
| 文件頁數： | 1/1頁 |
| 文件大小： | 21K |
| 代理商： | 203206 |

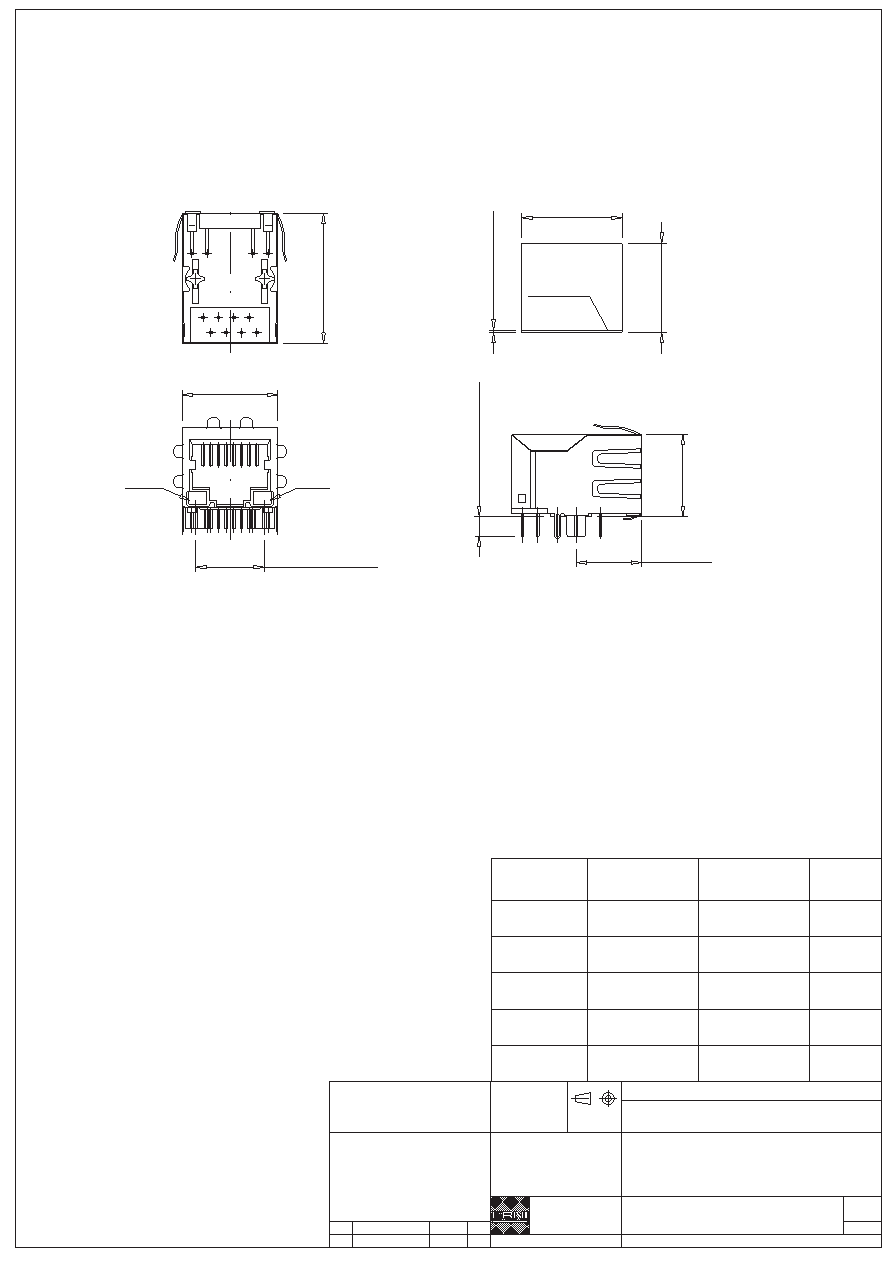

11JUN03
b
8C8T, 1X1, INT. MAG., LED ALIGNED
MJIM
203204
MOD JACK - MJIM
-
2:1
-
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
RECOMMENDED PANEL
CUTOUT
L.E.D. 2
1
L.E.D. 1
8
PCB EDGE
LP
14.72
[.580]
10.89 [.429]
13.63
[.537]
11.43
±0.13 [.450±.005]
15.88 [.625]
3.20
±0.20
[.126
±.008]
0.38
±0.10
[.015
±.004]
16.66 [.656]
21.59
[.850]
MAX
HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK
SHIELDING: Cu ALLOY, PLATED WITH Ni
ELECTRICAL CHARACTERISTICS
CONTACT RESISTANCE: 30 MILLIOHMS MAX
OPERATING TEMPERATURE: 0C TO 70C
TERMINAL FINISH: SnPb
CONTACT FINISH: Au, 0.8
m (30 in), OVER Ni
MECHANICAL CHARACTERISTICS
CONTACTS: PHOSPHOR BRONZE
DURABILITY: 1000 MATING CYCLES
MATERIALS AND FINISH
LED LENS: EPOXY
NOTE 2: PANEL GROUND FLANGES BOTH SIDES AND TOP (GF5)
NOTE 1: SIDE SHIELD TABS IN REAR 3.05mm (R)
YELLOW
LED 2 LEFT
LED 2 LINK
GREEN
ORANGE/GREEN
203209
203208
203206
203207
NO.
203205
IDENT. NR.
ORANGE/GREEN
L9
YELLOW
GREEN
LED 1 RIGHT
LED 1 RECHTE
YELLOW
GREEN
L8
L3
L2
LED
L1
COD
E
Date
Rev.
in mm
ERNI Components
CHESTER, VA U.S.A.
Group/Type
[in]
I
Scale
Designation
Tolerances
Consider
pr
otection
memo
fr
om
DIN
34
All rights reserved.
Only for information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Subject to modification without
prior notice.
Drawing will not be updated.
Information:
All Dimensions
SCHEMATIC NUMBER: M3D02
