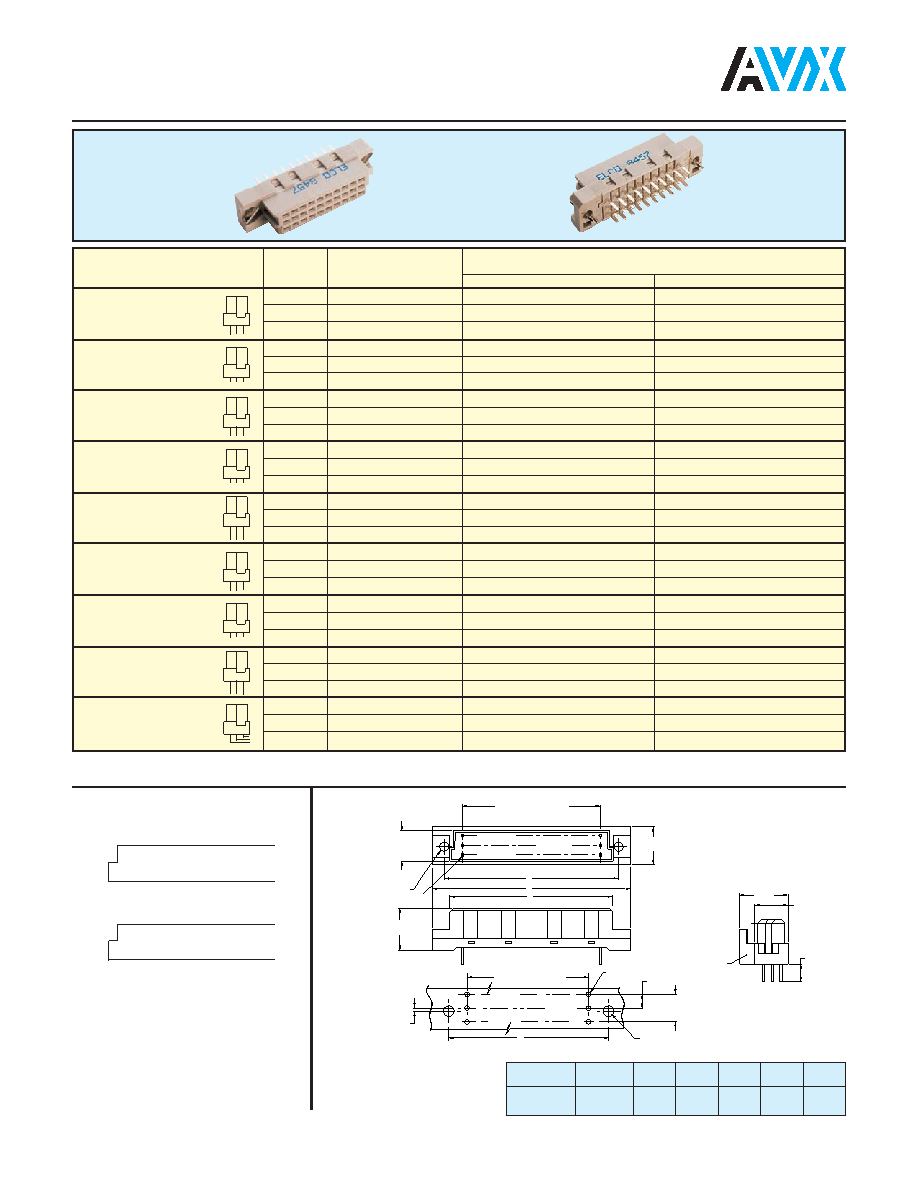

18
Female Style 1/3 C
Series 8457 – 3 rows (3 x 10)
Contact Design
Part Number
and
Number of
Performance classes according to DIN 41612
Termination Length
Contacts
Loading Description
II
I
0.6 x 0.6 mm Post Profile
30
a + b + c fully loaded
20 8457 030 001 025
20 8457 030 001 049
4.5 mm (Y) Straight
20
a + c fully loaded
20 8457 030 001 026
20 8457 030 001 050
0.6 x 0.6 mm Post Profile
30
a + b + c fully loaded
20 8457 030 002 025
20 8457 030 002 049
2.9 mm (Y) Straight
20
a + c fully loaded
20 8457 030 002 026
20 8457 030 002 050
0.3 x 0.79 mm Post Profile
30
a + b + c fully loaded
20 8457 030 003 025
20 8457 030 003 049
4.5 mm (Y) Straight
20
a + c fully loaded
20 8457 030 003 026
20 8457 030 003 050
0.3 x 0.79 mm Post Profile
30
a + b + c fully loaded
20 8457 030 004 025
20 8457 030 004 049
2.9 mm (Y) Straight
20
a + c fully loaded
20 8457 030 004 026
20 8457 030 004 050
0.6 x 0.6 mm Post Profile
30
a + b + c fully loaded
20 8457 030 005 025
20 8457 030 005 049
13.0 mm (Y) Straight
20
a + c fully loaded
20 8457 030 005 026
20 8457 030 005 050
0.6 x 0.6 mm Post Profile
30
a + b + c fully loaded
20 8457 030 010 025
20 8457 030 010 049
7.0 mm (Y) Straight
20
a + c fully loaded
20 8457 030 010 026
20 8457 030 010 050
0.6 x 0.6 mm Post Profile
30
a + b + c fully loaded
20 8457 030 011 025
20 8457 030 011 049
3.5 mm (Y) Straight
20
a + c fully loaded
20 8457 030 011 026
20 8457 030 011 050
0.6 x 0.6 mm Post Profile
30
a + b + c fully loaded
20 8457 030 012 025
20 8457 030 012 049
19.4 mm (Y) Straight
20
a + c fully loaded
20 8457 030 012 026
20 8457 030 012 050
0.6 x 0.6 mm Post Profile
30
a + b + c fully loaded
20 8457 030 013 025
20 8457 030 013 049
4.5 mm (Y) Right Angled
20
a + c fully loaded
20 8457 030 013 026
20 8457 030 013 050
DIMENSIONS
LOADING DESCRIPTION
30 contacts, rows a + b + c fully loaded
●●●●
●
c
●●●●
●
b
●●●●
●
a
20 contacts, rows a + c fully loaded
●●●●
●
c
b
●●●●
●
a
No. Contact
Contact
Positions
Rows
A
B
C
D
E
30
3 (3 x 10)
9
22.86
34.75
39.70
29.06
(0.900)
(1.368)
(1.563)
(1.144)
Unit: millimeters (inches)
NB: Alternative Prefix Variations Available: 22, 24, 25, 26 & 27, please refer to Page 10.
Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.
D
A EQ SP @ 2.54 [0.100] = B
C
A EQ SP @ 2.54 [0.100] = B
2.54
[0.100]
1.02
[0.040]
KEYING
2.84
[0.112]
HOLE PATTERN
For Y dimension
see contact design
ROW A
ROW B
E
C
0.30
[0.012]
ROW B
ROW C
10.5
[0.413]
13.7
[0.528]
2.84
[0.110]
ROW C
8.46
[0.333]
10.5
[0.413]
11.58
[0.456]
ROW A
Y
5.08
[0.200]
DIA.
1
