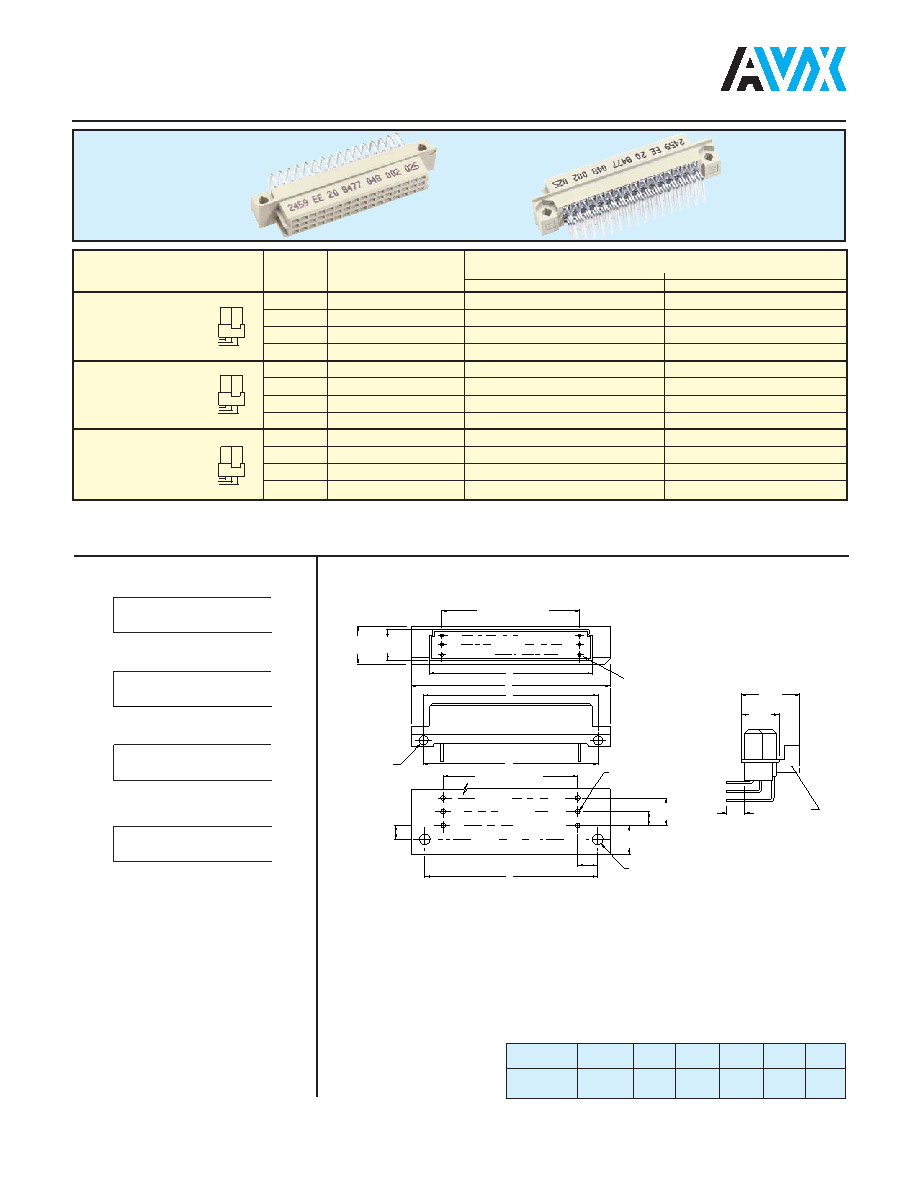

56
Female Style 1/2 R
Series 8477 – 3 rows (3 x 16) Inverted
48 contacts, rows a + b + c fully loaded
●●●●
●
c
●●●●
●
b
●●●●
●
a
32 contacts, rows a + c fully loaded
●●●●
●
c
b
●●●●
●
a
16 contacts, rows a + c even loading
●
c
b
●
a
16 contacts, row a loading only
c
b
●●●●
●
a
No. Contact
Contact
Positions
Rows
A
B
C
D
E
48
3 (3 x 16)
15
38.10
53.90
48.26
44.30
(1.500)
(2.122)
(1.900)
(1.744)
Contact Design
Part Number
and
Number of
Performance classes according to DIN 41612
Termination Length
Contacts
Loading Description
II
I
48
a + b + c fully loaded
20 8477 048 006 025
20 8477 048 006 049
32
a + c fully loaded
20 8477 048 006 026
20 8477 048 006 050
0.3 x 0.79 mm Post Profile
16
a + c even loading
20 8477 048 006 033
20 8477 048 006 057
3.0 mm (Y) Right Angled
16
a loading only
20 8477 048 006 027
20 8477 048 006 051
48
a + b + c fully loaded
20 8477 048 008 025
20 8477 048 008 049
32
a + c fully loaded
20 8477 048 008 026
20 8477 048 008 050
0.6 x 0.6 mm Post Profile
16
a + c even loading
20 8477 048 008 033
20 8477 048 008 057
11.43 mm (Y) Right Angled
16
a loading only
20 8477 048 008 027
20 8477 048 008 051
48
a + b + c fully loaded
20 8477 048 012 025
20 8477 048 012 049
32
a + c fully loaded
20 8477 048 012 026
20 8477 048 012 050
0.6 x 0.6 mm Post Profile
16
a + c even loading
20 8477 048 012 033
20 8477 048 012 057
4.5 mm (Y) Right Angled
16
a loading only
20 8477 048 012 027
20 8477 048 012 051
Unit: millimeters (inches)
NB: Alternative Prefix Variations Available: 26, please refer to Page 10.
Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.
DIMENSIONS
LOADING DESCRIPTION
D
2.84
[0.112]
HOLE PATTERN
For Y dimension
see contact design
ROW A
ROW B
8.46
[0.333]
D
ROW B
ROW A
10.5
[0.413]
13.4
[0.528]
10.5
[0.413]
5.31
[0.209]
Y
KEYING
ROW C
5.08
[0.200]
5.08 [0.200]
DIA.
A EQ SP @ 2.54 [0.100] = B
C
E
D
2.54
[0.100]
2.54
[0.100]
2.54
[0.100]
1.02
[0.040]
A EQ SP @ 2.54 [0.100] = B
1
