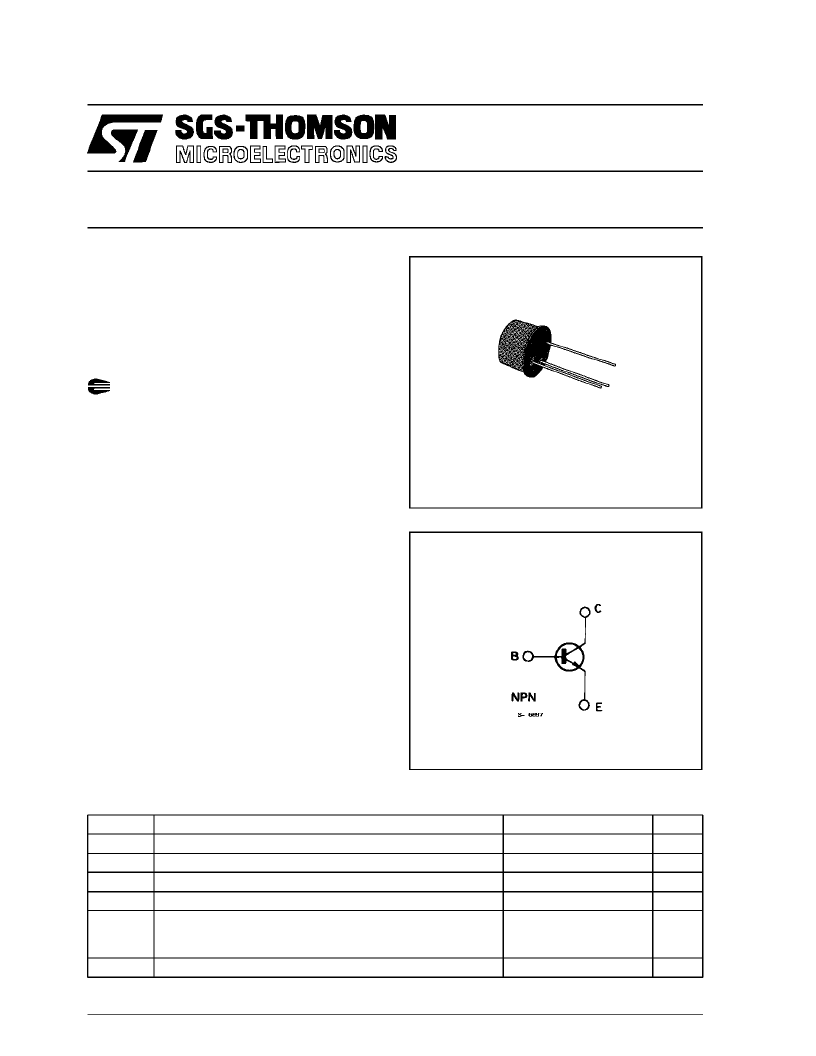

2N1613
2N1711
January 1989
SWITCHES AND UNIVERSAL AMPLIFIERS
The 2N1613 and2N1711 are siliconplanar epitaxial
NPN transistors in Jedec TO-39 metal case. They
are designed for use inhigh-performance amplifier,
oscillator and switching circuits.
The 2N1711is also used to advantage in amplifiers
wherelow noise is animportant factor.
ABSOLUTE MAXIMUM RATINGS
Symbol
V
CBO
V
CER
V
EBO
I
C
P
tot
Parameter
Value
75
50
7
500
0.8
3
1.7
– 65 to 200
Unit
V
V
V
mA
W
W
W
°
C
Collector-base Voltage (I
E
= 0)
Collector-emitter Voltage (R
BE
≤
10
)
Emitter-base Voltage (I
C
= 0)
Collector Current
Total Power Dissipation at T
amb
≤
25
°
C
at T
case
≤
25
°
C
at T
case
≤
100
°
C
T
stg
, T
j
Storage and Junction Temperature
Products approved to CECC 50002-104 avail-
able onrequest.
DESCRIPTION
TO-39
INTERNAL SCHEMATIC DIAGRAM
1/5
