Semelab plc.
Telephone (01455) 556565. Telex: 341927. Fax (01455) 552612.
Prelim. 1/94
LAB
SEME
2N3019CSM
HIGH FREQUENCY, NPN
TRANSISTOR IN A
HERMETICALLY SEALED
CERAMIC SURFACE MOUNT PACKAGE
FOR HIGH RELIABILITY APPLICATIONS
FEATURES
SILICON PLANAR EPITAXIAL NPN
TRANSISTOR
HERMETIC CERAMIC SURFACE MOUNT
PACKAGE (SOT23 COMPATIBLE)
CECC SCREENING OPTIONS AVAILABLE
SPACE QUALITY LEVELS AVAILABLE
HIGH SPEED SATURATED SWITCHING
APPLICATIONS:
For high reliablitity general purpose
applications requiring small size and low
weight devices.
V
CBO
V
CEO
V
EBO
I
C
P
D
P
D
R
ja
T
j
T
stg
Collector
–
Base Voltage
Collector
–
Emitter Voltage
Emitter
–
Base Voltage
Collector Current
Total Device Dissipation
Derate above 50°C
Thermal Resistance Junction to Ambient
Max Junction Temperature
Storage Temperature
140V
80V
7V
1A
350mW
2.00mW / °C
350°C / W
200°C
–55 to 200°C

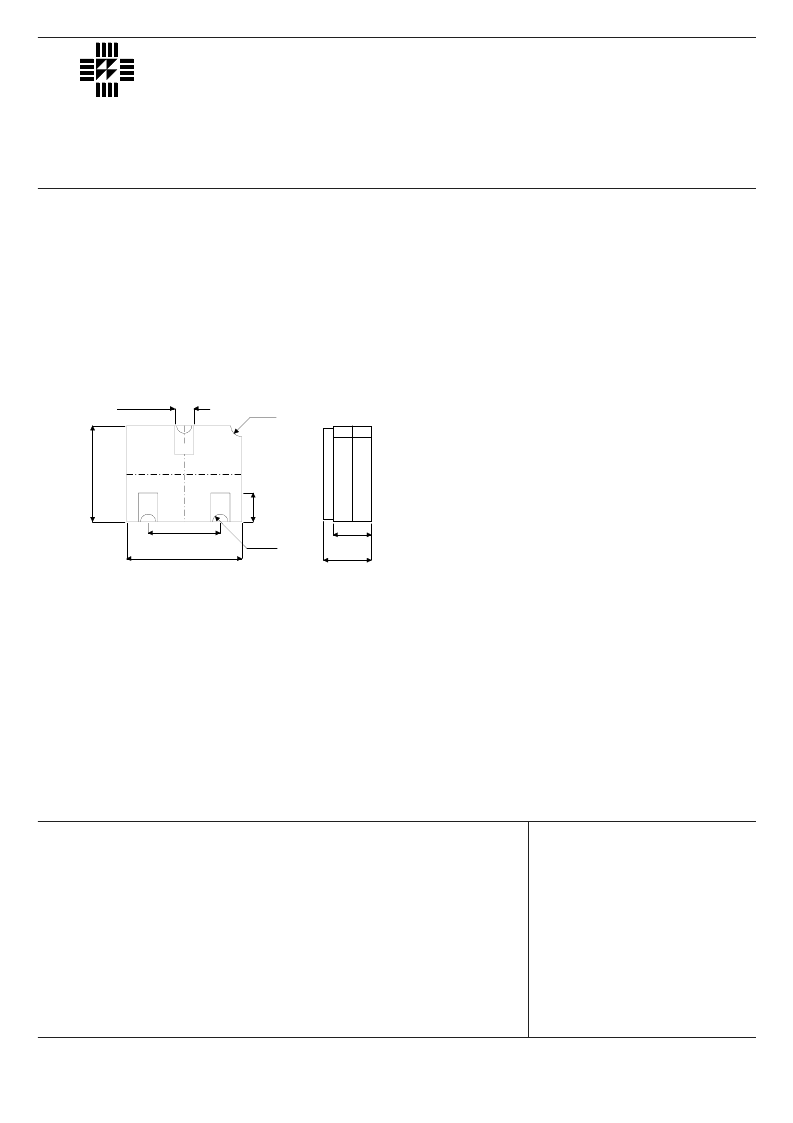

MECHANICAL DATA
Dimensions in mm (inches)
SOT23 CERAMIC (CSM)
LCC1 PACKAGE
ABSOLUTE MAXIMUM RATINGS
(T
case
= 25°C unless otherwise stated)
PAD 1 – Base
Underside View
PAD 2 – Emitter
PAD 3 – Collector
2
1
0.51 ± 0.10
(0.02 ± 0.004)
0.31
(0.012)
1.91 ± 0.10
(0.075 ± 0.004)
3.05 ± 0.13
(0.12 ± 0.005)
2
(
0
(
1.02 ± 0.10
(0.04 ± 0.004)
1.40
(0.055)
max.
A
(0.31
rad.
A =
3
