Pomona

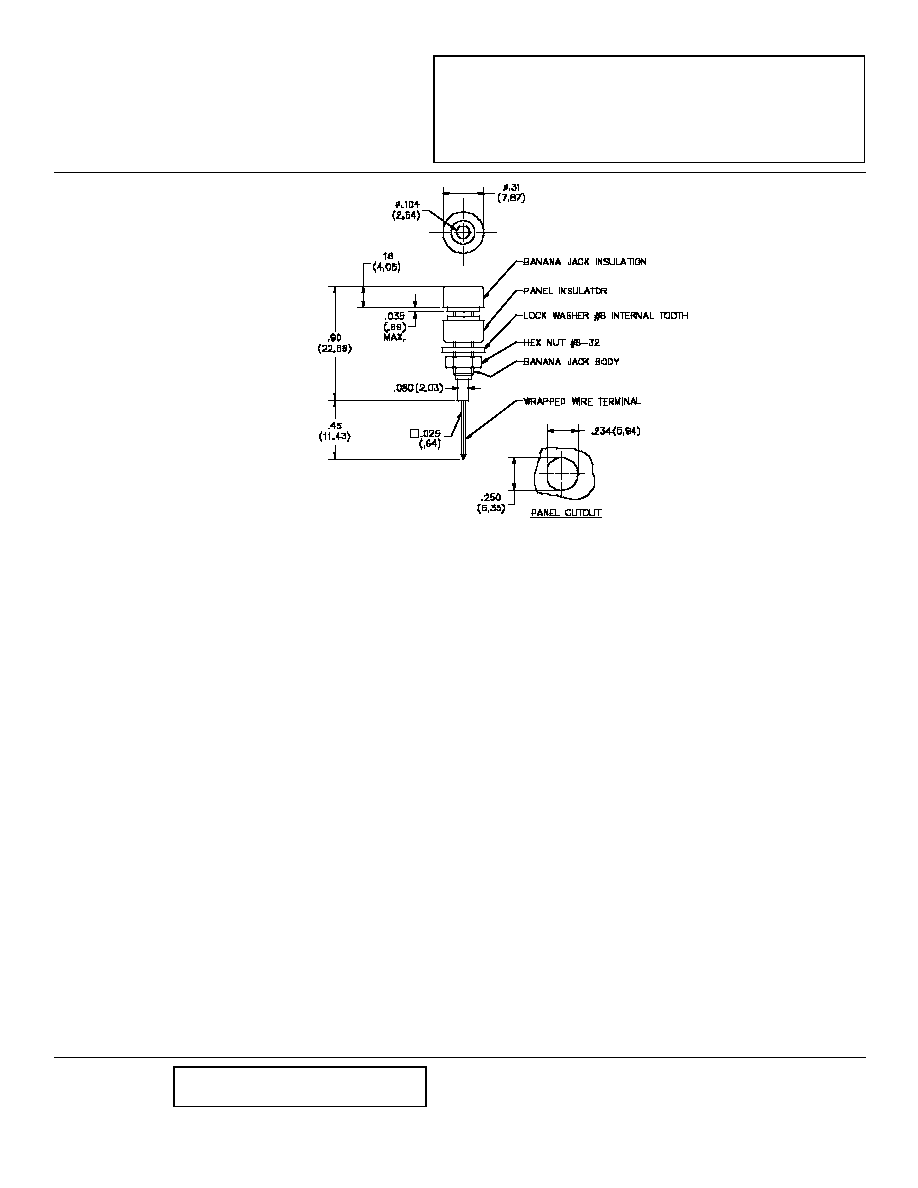

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Made in USA
6/9/99
PomonaACCESS 90223
(800) 444-6785 or (425) 446-6010
SY/EH/LS
More drawings available at www.pomonaelectronics.com
S:\Engineering \Release\DataSheets\FlukeDataSheet\d4022_1_01.doc
Page 1 of
1
Model 4022
Insulated Banana Jack, Miniature
With Wire Wrap Terminal
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
FEATURES:
Accepts miniature banana plugs.
Mounts in panels up to .250” thick.
MATERIALS:
Jack: Nickel Plated Brass
Terminal: Gold Plated Phosphor Bronze
Insulation: Polycarbonate molded to Banana Jack body
Panel Insulator: Polycarbonate. Color matches color of Banana Jack insulation.
Lockwasher #8 Internal Tooth: Steel. Nickel plated per QQ-N-290 Class 2, 200/300 microinches.
Wrapped Wire Terminal: Beryllium Copper. Gold plated per MIL-G-45204, Type II Class 00 over electroless nickel
per MIL-C-26074, Class 1, 200/300 microinches.
RATINGS:
Operating Temperature: +115°C (+239°F) Max.
Operating Voltage: 1500 VDC
Current: 3 Amperes
ORDERING INFORMATION: Model 4022-*
Standard Colors: Available in 10 colors: -0 Black, -2 Red, -3 Orange, -4 Yellow, -5 Green, -6 Blue,
-7 Violet, -8 Gray, -9 White
Sold in packages of 10 per color.
