42036-1 Product Details
Corporate Home |
Electronic Components | Segments | Who We Are
Products
Documentation
Resources
My Account
Customer Support
42036-1
TE Part Number: 42036-1
Active
Add to Part List
View 3D PDF
Ring and Spade Tongue Terminals
Always EU RoHS/ELV Compliant
(Statement of
Compliance
)
Product Highlights:
Terminal Shape = Ring Tongue
Receptacle Style = Straight
Barrel Type = Open Barrel
Wire/Cable Type = Regular Wire
Wire Range = 0.30-0.90 [22-18] mm [AWG]
View all Features | Find Similar Products
Previous 1 2 3 [4] 5 ... 20 Next
Check Pricing & Availability
Search for Tooling
Product Feature Selector
Compare Products
Contact Us About This Product
Request Samples
Quick Links
Documentation & Additional Information
Product Drawings:
RING (PDF, English)
Catalog Pages/Data Sheets:
MACHINE APPLIED TERMINATIONS, OPEN BARREL (PDF, English)
Product Specifications:
Terminal, AMPLIVAR, Ring, Crimping (PDF, English)
Terminal, Ring, Extruded, Crimping (PDF, English)
Application Specifications:
Ring and Spade Terminals (PDF, English)
Instruction Sheets:
None Available
CAD Files: (CAD Format & Compression Information)
2D Drawing (DXF, Version L)
3D Model (IGES, Version L)
3D Model (STEP, Version L)
List all Documents
Additional Information:
Product Line Information
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Terminal Shape = Ring Tongue
Receptacle Style = Straight
Barrel Type = Open Barrel
Wire/Cable Type = Regular Wire
Insulation = No
Insulation Support = Insulation Support
Insulation Diameter (mm [in]) = 2.03-2.54 [.080-.100]
Stud Size = 8 [M4]
Stud Diameter (mm [in]) = 4.17 [0.164]
Shape = RING-001
Heavy Duty = No
Material = Brass
Body Related Features:
Wire Range (mm [AWG]) = 0.30-0.90 [22-18]
Stock Thickness (mm [in]) = 0.51 [0.020]
Industry Standards:
Government/Industry Qualification = No
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Always was RoHS compliant
Packaging Related Features:
Packaging Method = Strip
Other:

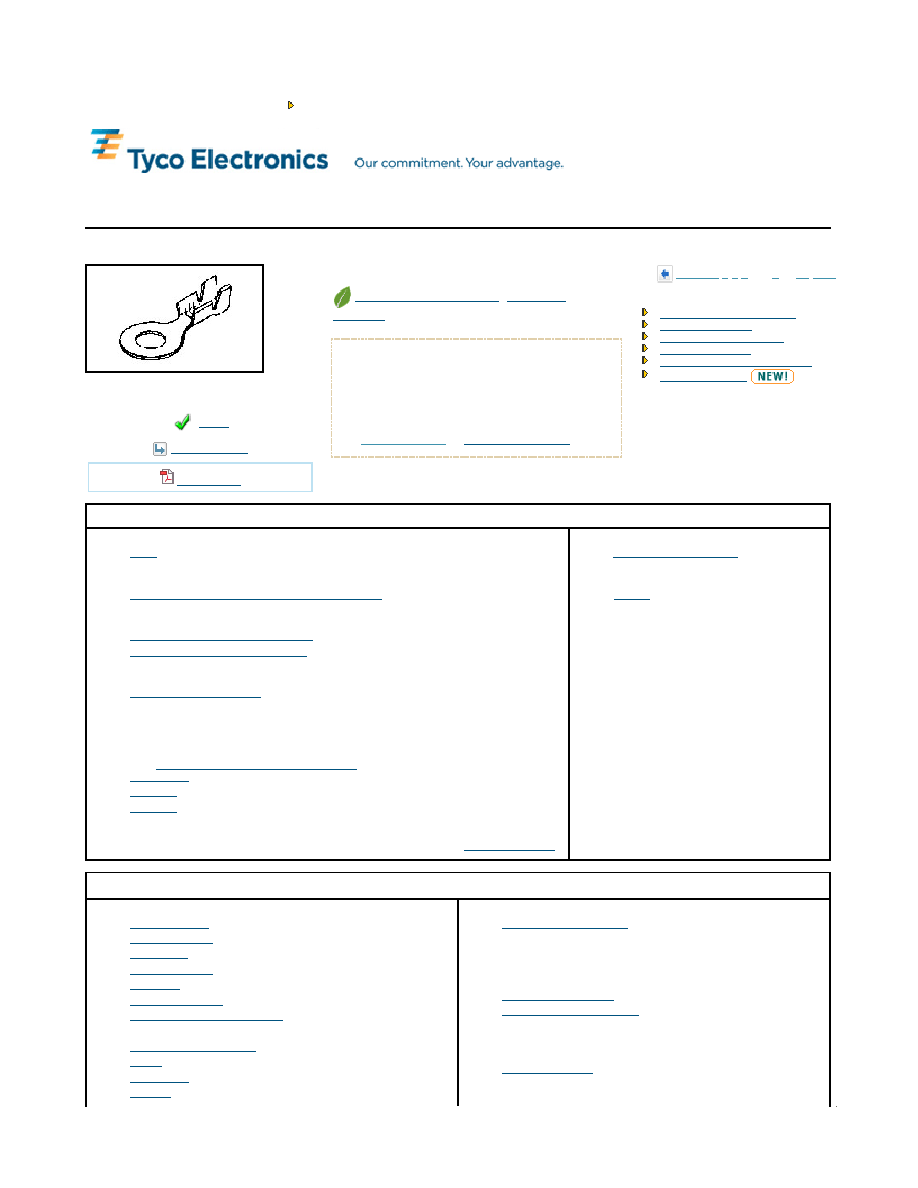

Page 1 of 2
42036-1 Product Details - Tyco Electronics
9/30/2008
http://catalog.tycoelectronics.com/catalog/bin/TE.Connect?C=123&M=PPROP&P=2824,7...
