F-76
MX01
Power
Connectors
F
FEATURES AND SPECIFICATIONS
4.20mm (.165") Pitch
Mini-Fit, HCS
Header
44472
Single Row, Vertical
With Pegs
Features and Benets
s
Carries 3 more amperes per circuit than 5566
series headers
s
Headers available with mounting pegs for increased
board retention
s
Single row conguration saves board space
Reference Information
Product Specication: PSX-44476-0001
Packaging: Tray or bag
UL File No.: E29179
CSA File No.: LR19980
TUV License No.: R75142
Mates With: 5557 single row housing
Designed In: Millimeters
Electrical
Voltage: 600V
Current: (Used with 16 AWG)
Contact Resistance: 10m
max.
Dielectric Withstanding Voltage: 1500V
Insulation Resistance: 1000 M
min.
Mechanical
Insertion Force to PCB: 5.0kg max.
Mating Force: 0.7kg (1.54 lb) max.
Unmating Force: 0.35kg (0.7 lb) min.
Normal Force: 200g min.
Durability: 30 cycles
Physical
Housing: 6/6 nylon, UL 94V-2 or UL 94V-0
Contact: High Copper Alloy
Plating: Tin
Operating Temperature: -40 to +105C
Circuits
2–3
4–6
7–10
12–24
Amperes-Jr.
9
8
7
6
Amperes-HCS
12
11
10
9

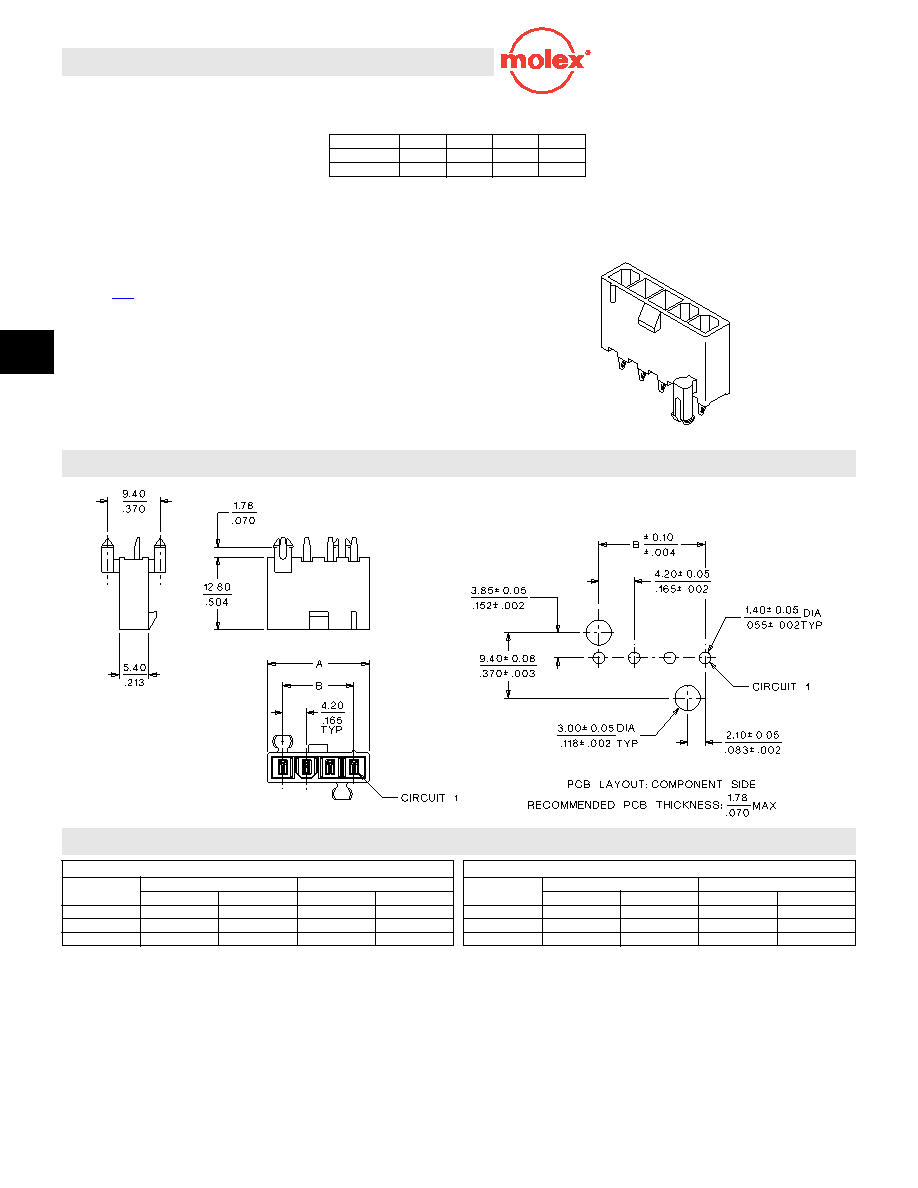

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
With Drain Holes
Circuits
Order No.
Dimension
94V-2
94V-0
A
B
3
44472-0313
44472-0314
13.80 (.543)
8.40 (.331)
4
44472-0401
18.00 (.709)
12.60 (.496)
5
44472-0502
22.20 (.874)
16.80 (.661)
Without Drain Holes
Circuits
Order No.
Dimension
94V-2
94V-0
A
B
3
44472-0311
44472-0312
13.80 (.543)
8.40 (.331)
4
18.00 (.709)
12.60 (.496)
5
44472-0504
22.20 (.874)
16.80 (.661)
