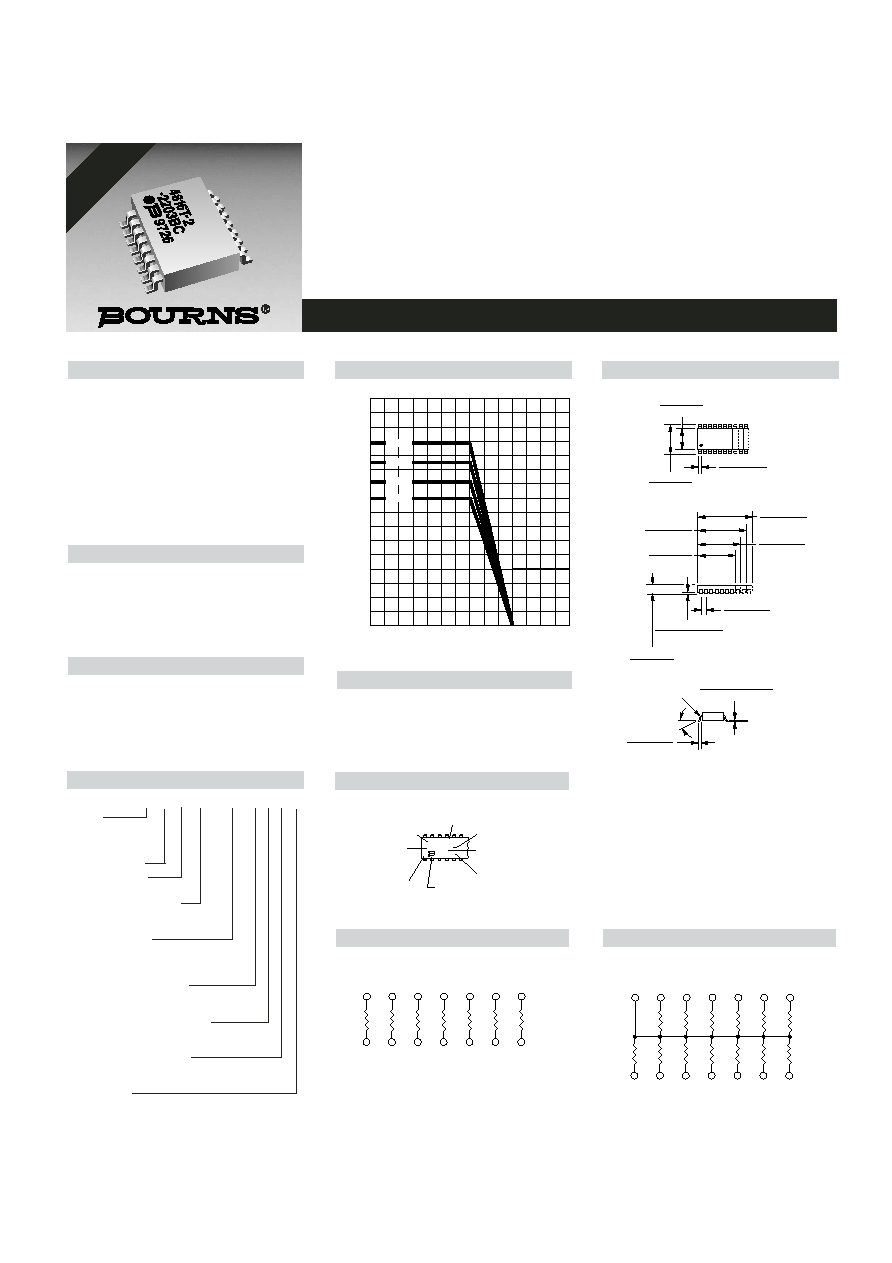

4800T - Thin Film Medium Body Gull Wing
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Isolated Resistors (1 Circuit)
Available in 14, 16, 18, and 20 Pin
Bussed Resistors (2 Circuit)
Available in 14, 16, 18, and 20 Pin
These models incorporate 7, 8, 9, or 10
thin-film resistors of equal value, each
connected between a separate pin.
Power Rating per Resistor........0.10 watt
Resistance Range .......10 to 100K ohms
These models incorporate 13, 15, 17 or
19 thin-film resistors of equal value,
each connected by a common pin.
Power Rating per Resistor........0.08 watt
Resistance Range .........10 to 50K ohms
1
7
14
8
14
8
1
7
Product Characteristics
Resistance Range ........10 to 100K ohms
Resistance Tolerance
.........................±0.1 %, ±0.5 %, ±1 %
Temperature Coefficient
..................±100 ppm/°C, ±50 ppm/°C,
±25 ppm/°C
TCR Tracking .........................±5 ppm/°C
Temperature Range
.................................-55 °C to +125 °C
Maximum Operating Voltage............50 V
Environmental Characteristics
TESTS PER MIL-STD-202 .........R MAX
Thermal Shock ...............................0.1 %
Short Time Overload ......................0.1 %
Resistance to Soldering Heat ........0.1 %
Moisture Resistance ......................0.1 %
Life ............................................... 0.5 %
Physical Characteristics
Lead Frame Material
..........................Copper, solder coated
Body Material Flammability
...........................Conforms to UL94V-0
Body Material....................Thermoplastic
WATTS
AMBIENT TEMPERATURE ( C )
°
1.75
1.50
1.25
1.00
.75
.50
.25
4820T
0
70
150
25
125
4818T
4816T
4814T
Package Power Ratings at 70 °C
4814T ......................................1.12 watts
4816T ......................................1.28 watts
4818T ......................................1.44 watts
4820T ......................................1.60 watts
5.59 ± .12
(.220 ± .005)
7.62 ± .25
(.300 ± .010)
.432 ± .076
(.017 ± .003)
9.91 ± .12
(.390 ± .005)
12.45 ± .12
(.490 ± .005)
11.18 ± .12
(.440 ± .005)
13.72 ± .12
(.540 ± .005)
.13 + .12/ - .00
(.005 + .005/ - .000)
2.03 ± .12
(.080 ± .005)
.611 ± .101
(.024 ± .004)
R = .008" TYP.
8° MAX.
Governing dimensions are metric. Dimensions in parentheses
are inches and are approximate.
TYP.
1.27 ± .050
(.050 ± .005*)
TYP.
.305 + .000/ - .101
(.012 + .000/ - .004)
PIN ONE
INDICATOR
CIRCUIT
PART
NUMBER
MANUFACTURER'S
TRADEMARK
RESISTANCE
CODE (4 DIGIT)
DATE CODE
-2203BC
4816T-2
YYWW
ABSOLUTE
TOLERANCE CODE
TC CODE
Typical Part Marking
Represents total content. Layout may vary.
How To Order
48 16 T - 2 - 2222 F A B __
Model
(48 = SOM Medium
Body Gull
Wing)
Number of Pins
Physical Config.
T = Thin Film
Electrical Configuration
2 = Bussed
1 = Isolated
Resistance Code
First 3 digits are significant
Fourth digit represents the
number of zeros to follow.
Absolute Tolerance Code
B = ±0.1%
F = ±1%
D = ±0.5%
Temperature Coefficient Code
A = ±100ppm/°C
C = ±25ppm/°C
B = ±50ppm/°C
Ratio Tolerance (Optional)
A = ±0.05% to R1 D = ±0.5% to R1
B = ±0.1% to R1
Terminations
L = Tin-plated (lead free)
Blank = Tin/Lead-plated
Consult factory for other available options.
Package Power Temp. Derating Curve
Product Dimensions
Features
■
Lead free versions available (see How to
Order “Termination” option)
■
RoHS compliant (lead free version)*
■
Increased lead density
■
Custom circuits available per factory
REV. 01/05
For information on thin film applications,
download Bourns’ Thin Film Application
Note.
LEAD
FREE
VERSIONS
ARE
RoHS
COMPLIANT
