www.vishay.com
489D, 499D
Vishay Sprague
Document Number 42070
Revision 02-Aug-02
112
For technical questions, contact eurotant@vishay.com

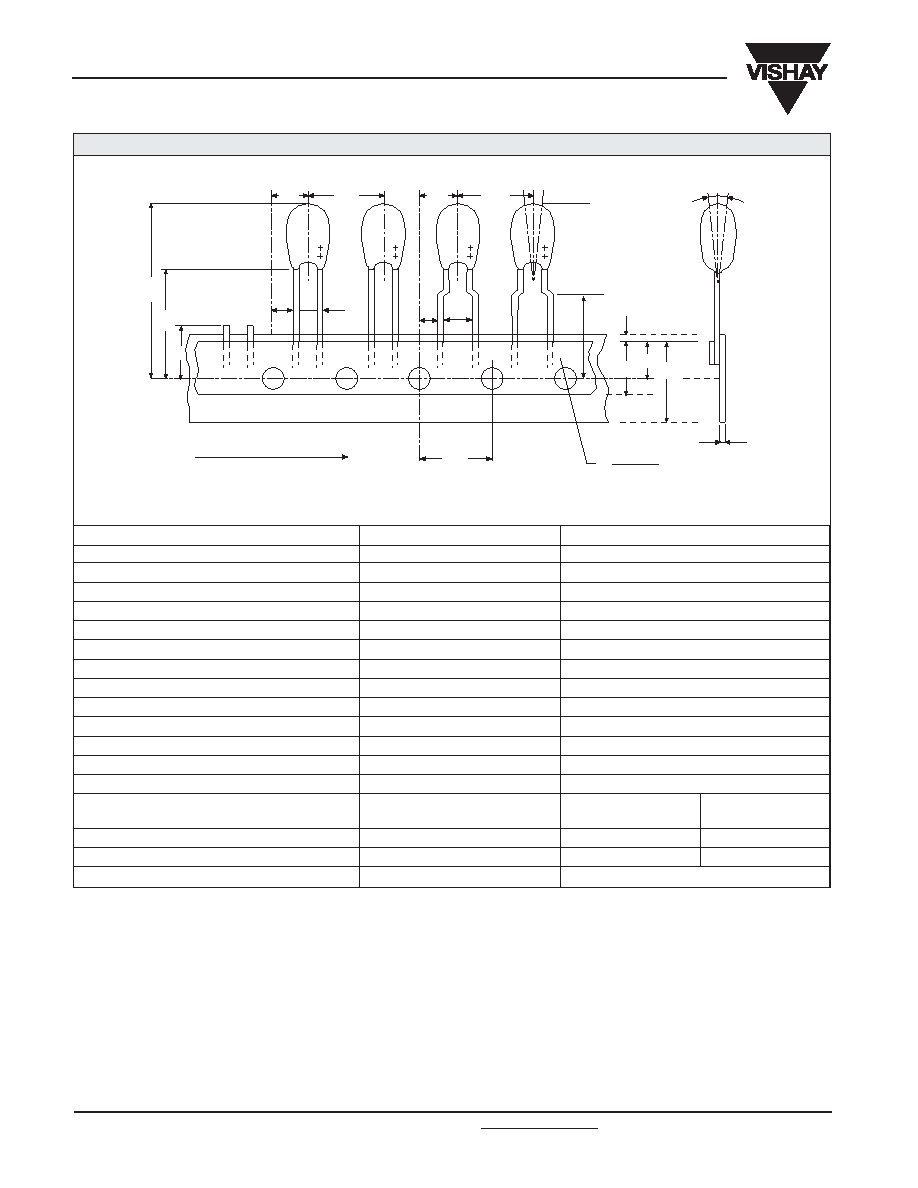

TAPE AND REEL PACKAGING in millimeters
DESIGNATION
SYMBOL
DIMENSIONS (mm)
Pitch of component
P
12.7 ± 1.0
Feed hole pitch
P0
12.7 ± 0.3
Tape width
W
18 (+1 / - 0.5)
Hold down tape width
W0
5.0
Hole position
W1
9 (+0.75 / -0.5)
Hold down tape position
W2
0 (+3 /-0)
Overall component height
H1
32 max
Component alignment
P
± 1.3 max
Feed hole diameter
D0
4.0 ± 0.3
Tape thickness
t
0.5 ± 0.2
Component alignment
H0 ± 2
Lengh of snipped leads
L
11 max
Lead clinch height
H0
16.0 ± 0.5
Lead wire spacing
F
2.5
+ 0.6
5
+ 0.6
Feed hole center to wire center
P1
5.1 ± 0.7
3.65 ± 0.7
Hole center to component center
P2
6.35 ± 1.3
Component height
H
18 ± 1
Dimensions for components on tape and tolerances:
(meets IEC 286-2)
- 0.1
h
W2
D0
H0
W0
W1
W
t
P1
P2
H2
F
P
P2
P
P1
F
P0
L
H
Unreeling direction
Resin-Coated, Radial-Leaded
Solid Tantalum Capacitors
