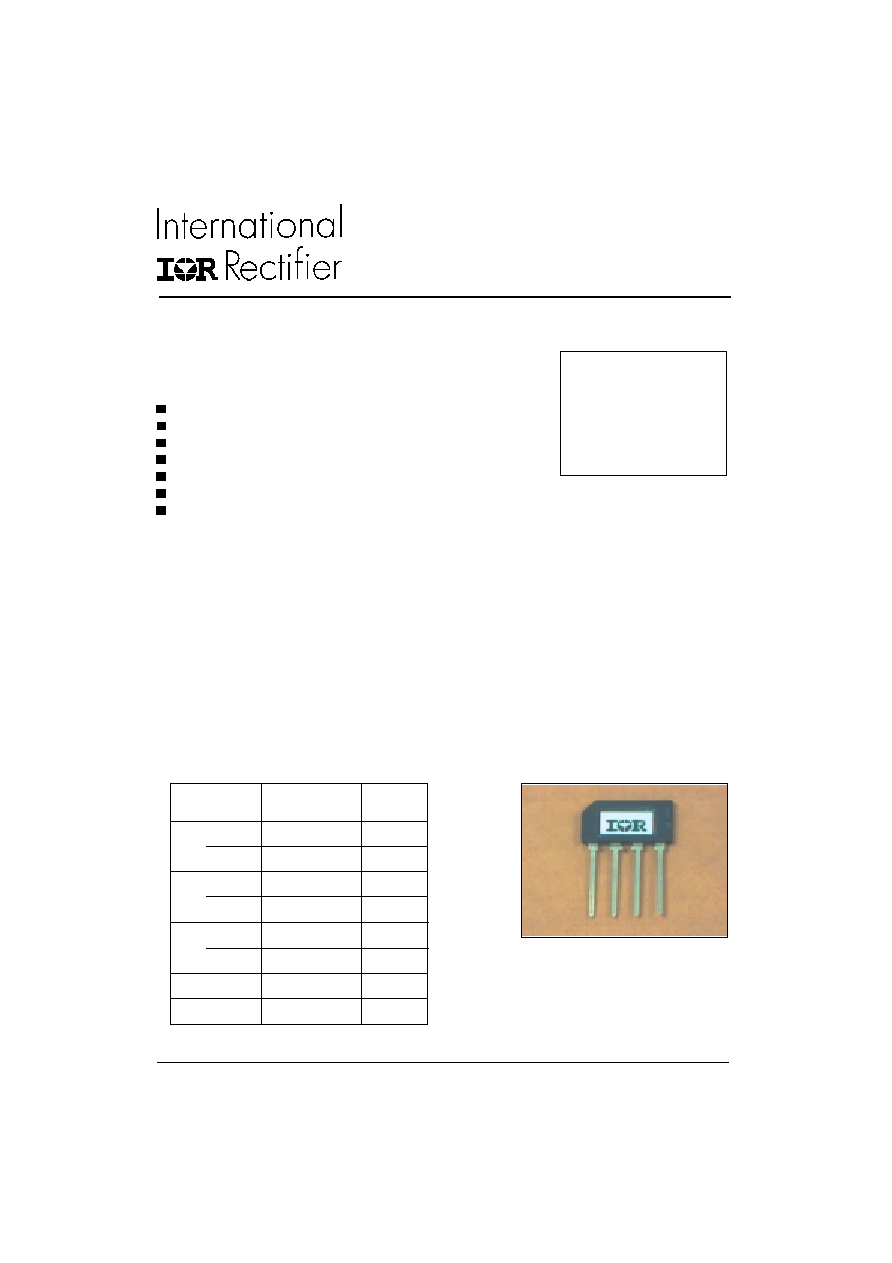

4.0 Amps Single Phase Full Wave
Bridge Rectifier
I
O(AV) = 4A
V
RRM = 50/ 1200V
4GBL Series
1
Preliminary Data Sheet rev. A I2716 11/00
www.irf.com
Features
Diode chips are glass passivated
Easy to assemble & install on P.C.B.
High Surge Current Capability
High Isolation between terminals and molded case
Leads are suitable for high temperature
Soldering at 260°C for 8-10 seconds
UL evaluation is under process
Description
These GBL Series of Single Phase Bridges consist
of four glass passivated silicon junction connected
as a Full Wave Bridge. These four junctions are
encapsulated by plastic molding technique. These
Bridges are mainly used in Switch Mode power
supply and in industrial and consumer equipment.
Parameters
4GBL
Units
Major Ratings and Characteristics
I
O
4A
@ T
C
50
°C
I
FSM
@50Hz
150
A
@ 60Hz
158
A
I2t
@ 50Hz
113
A2s
@ 60Hz
104
A2s
VRRM
range
50 to 1200
V
T
J
- 55 to 150
oC
4GBL
