Agilent 4N35
Phototransistor Optocoupler
General Purpose Type
Data Sheet
Features
High Current Transfer Ratio
(CTR: min. 100% at IF = 10 mA,
VCE = 10 V)
Response time (tr: typ., 3 s at
VCE = 10 V, IC = 2 mA, RL = 100 )
Input-output isolation voltage
(Viso = 3550 Vrms)
Dual-in-line package
UL approved
CSA approved
IEC/EN/DIN EN 60747-5-2 approved
Options available:
– Leads with 0.4" (10.16 mm)
spacing (W00)
– Leads bends for surface
mounting (300)
– Tape and reel for SMD (500)
– IEC/EN/DIN EN 60747-5-2
approvals (060)
Applications
I/O interfaces for computers
System appliances, measuring
instruments
Signal transmission between
circuits of different potentials and
impedances
Description
The 4N35 is an optocoupler for
general purpose applications. It
contains a light emitting diode
optically coupled to a photo-
transistor. It is packaged in a 6-pin
DIP package and available in wide-
lead spacing option and lead bend
SMD option. Response time, tr, is
typically 3
s and minimum CTR is
100% at input current of 10 mA.

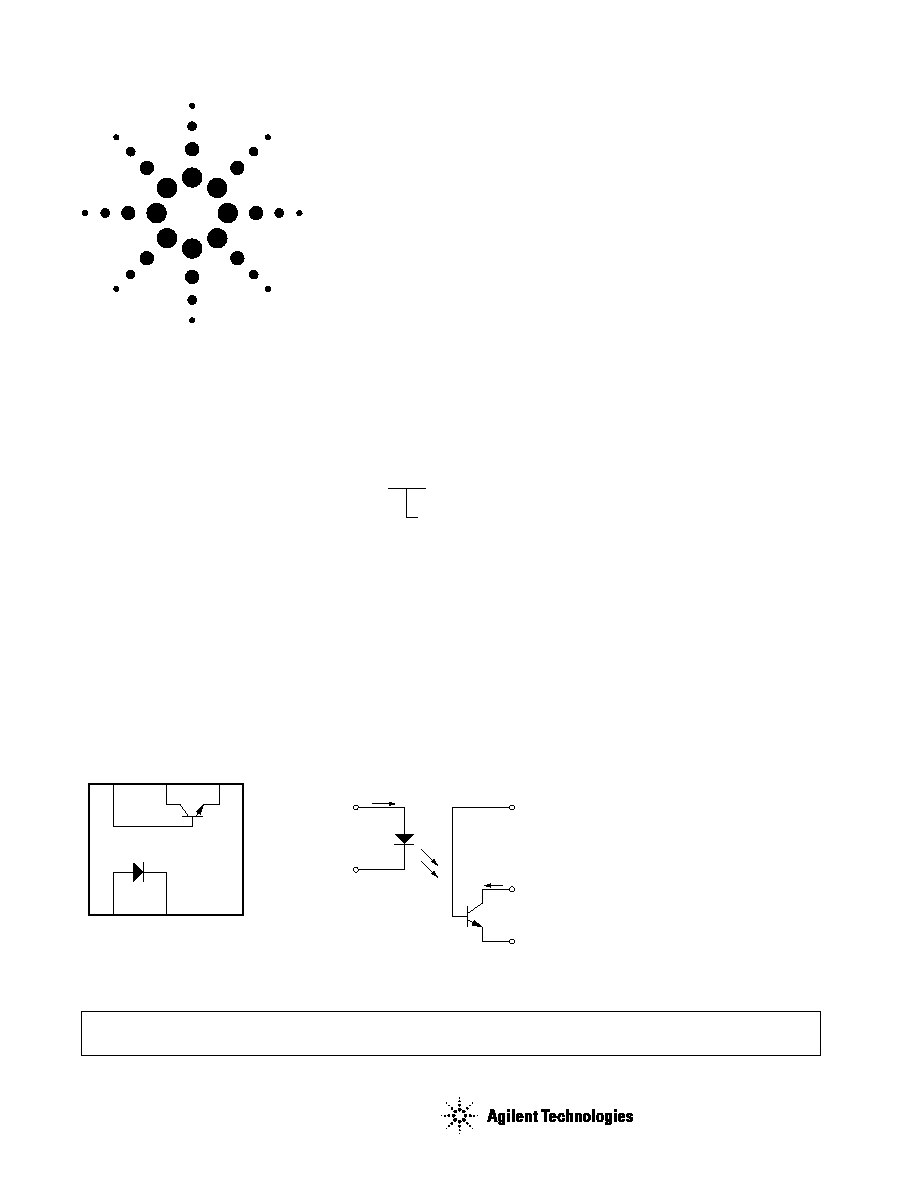

Functional Diagram
Ordering Information
Specify part number followed by
Option Number (if desired).
4N35-XXXX
Option Number
060 = IEC/EN/DIN EN 60747-5-2
Option
W00 = 0.4" Lead Spacing Option
300 = Lead Bend SMD Option
500 = Tape and Reel Packaging
Option
XXXE = Lead Free Option
Schematic
CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component to
prevent damage and/or degradation which may be induced by ESD.
6
54
12
3
PIN NO. AND INTERNAL
CONNECTION DIAGRAM
1. ANODE
2. CATHODE
3. NC
4. EMITTER
5. COLLECTOR
6. BASE
1
2
ANODE
CATHODE
VF
+
–
IF
6
5
4
BASE
COLLECTOR
EMITTER
IC
