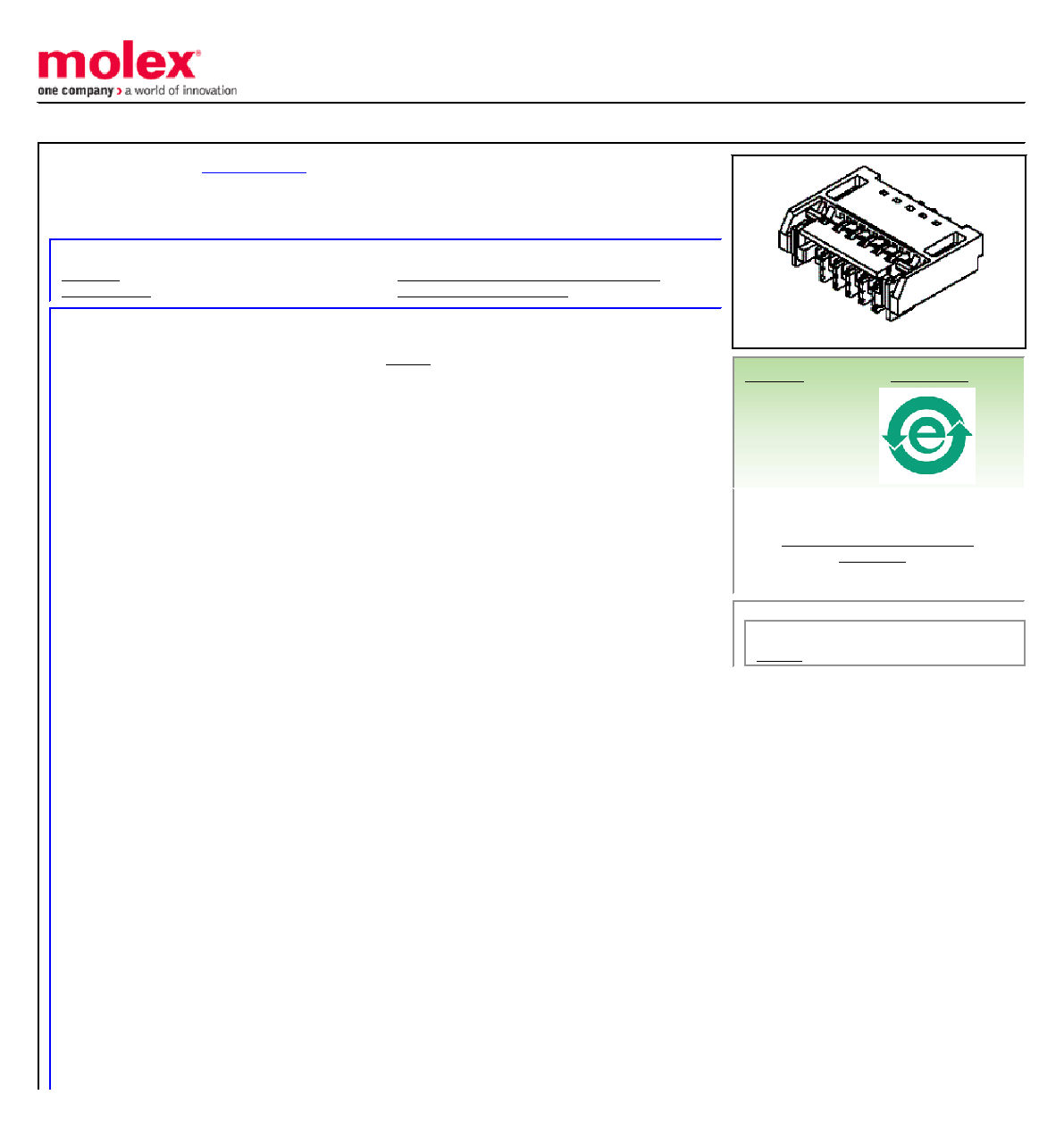

This document was generated on 01/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
0.30mm (.012") Pitch Easy-On FPC Connector, Right Angle, SMT, Bottom Contact
Style, 1.80mm (.071") Mated Height, 15 Circuits
Documents:
General
Product Family
FFC/FPC Connectors
Series
Product Name
Easy-On
Physical
Circuits (Loaded)
15
Circuits (maximum)
15
Color - Resin
Black
Color - Resin
Natural
Contact Position
Bottom
Durability (mating cycles) min
20 cycles
Entry Angle
90° Angle
Mated Height (in)
0.071 In
Mated Height (mm)
1.80 mm
Material - Metal
Copper
Material - Metal
Phosphor Bronze
Material - Plating Mating
Gold
Material - Plating Termination
Gold
Material - Resin
High Temperature Thermoplastic
Number of Rows
1
Orientation
Right Angle
PCB Locator
No
PCB Retention
None
Packaging Type
Embossed Tape on Reel
Pitch - Mating Interface (in)
0.012 In
Pitch - Mating Interface (mm)
0.30 mm
Pitch - Term. Interface (in)
0.012 In
Pitch - Term. Interface (mm)
0.30 mm
Plating min: Mating (in)
4
Plating min: Mating (m)
0.1
Plating min: Termination (in)
2
Plating min: Termination (m)
0.05
Polarized to PCB
No
Stackable
No
Surface Mount Compatible (SMC)
Yes
Temperature Range - Operating
-20°C to +85°C
Termination Interface: Style
Surface Mount
Wire/Cable Type
FPC only
Electrical
Current - Maximum
0.200 Amp
Voltage - Maximum
50V AC(RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification
PS-501912-001
Sales Drawing
SD-501912-001
Series image - Reference only
ELV and RoHS
Compliant
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
501912 Series
