Subject to reasonable modifications due to technical advances.
Pepperl+Fuchs Group Tel.: Germany (06 21) 7 76-0 USA (330) 4 25 35 55 Singapore 7 79 90 91 Internet http://www.pepperl-fuchs.com
Copyright Pepperl+Fuchs, Printed in Germany
3

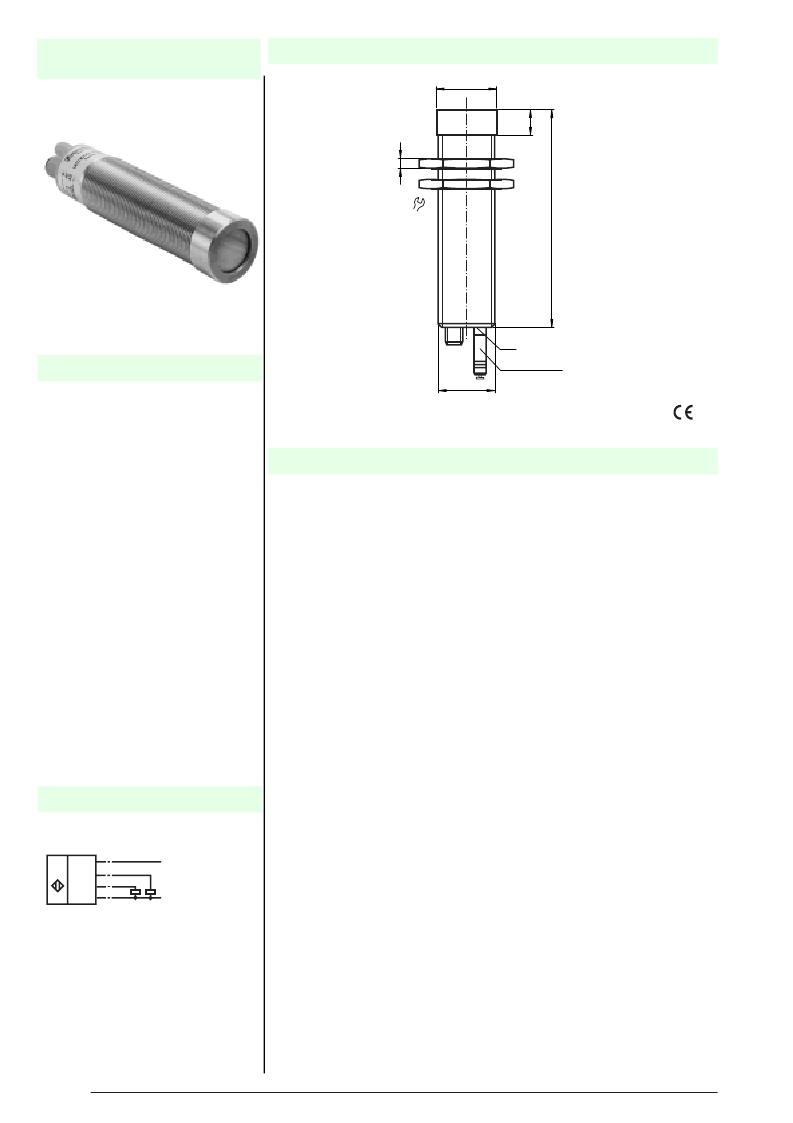

Technische Daten
Technical data
Features
Electrical connection
Dimensions
Current and voltage output
High chemical resistance through te-
flon-cated transducer surface
12 bit D/A transducer
Evaluation limits can be taught-in
Temperature compensation
Compact construction
Plug connection
General specifications
Sensing range
Standard target plate
Unusable area
Transducer frequency
Response delay
Standard conformity
Indicating/Operating means
LED yellow
200 ... 1000 mm
100 mm x 100 mm
0 ... 200 mm
approx. 175 kHz
≤
100 ms
EN 60947-5-2
permanently yellow: object in the evaluation range
yellow, flashing: Teach-in function evaluation limits, slope
permanent green: Power on green, flashing: TEACH-IN function,
object detected permanently red: Connector removed red, flashing:
Error, teach-in function object not detected
LED red/green
Temperature/TEACH-IN connector
Temperature compensation, TEACH-IN of the switch points, output
function change over
Electrical specifications
Rated operational voltage U
e
10 ... 30 V DC, ripple 10 %
SS
Power consumption
P
0
≤
800 mW
Output
Output type
1 current output 4 ... 20 mA
1 voltage output 0 ... 10 V
Repeat accuracy
≤
0.1 % of final value
Resolution
depending on the set evaluation range:
0.172 mm, if evaluation range < 705 mm,
evaluation range [mm] / 4096, if evaluation range > 705 mm
Deviation of the characteristic
curve
Load impedance
current output:
≤
500 Ohm
Voltage output:
≥
1000 Ohm
Temperature influence
< 2 % of full-scale value
(
≤
0.2 % / K without temperature compensation)
Ambient conditions
Ambient temperature
-25 ... +70 °C (248 ... 343 K)
Storage temperature
-40 ... +85 °C (233 ... 358 K)
Mechanical specifications
Protection degree
IP65 according to EN 60529
Connection type
V1 connector (M12 x 1), 4 pin
Material
Housing
high grade steel (stainless), PTB
Transducer
epoxy resin/hollow glass bead mixture; Polyurethane foam, PTFE
coated
Mass
188 g
≤
0.2 % of final value
Standard symbol/Connection:
+ U
B
4-20 mA
- U
B
1
4
2
3
U
0-10 V
Temperature probe
Coded plug
5
M30x1.5
1
1
32
36
LED
Single head system
UCC1000-30GM-IU-V1
1
0
