6-9
Dialight Corporation 1501 Route 34 South Farmingdale, NJ 07727 TEL: (732) 919-3119 FAX: (732) 751-5778 www.dialight.com
6

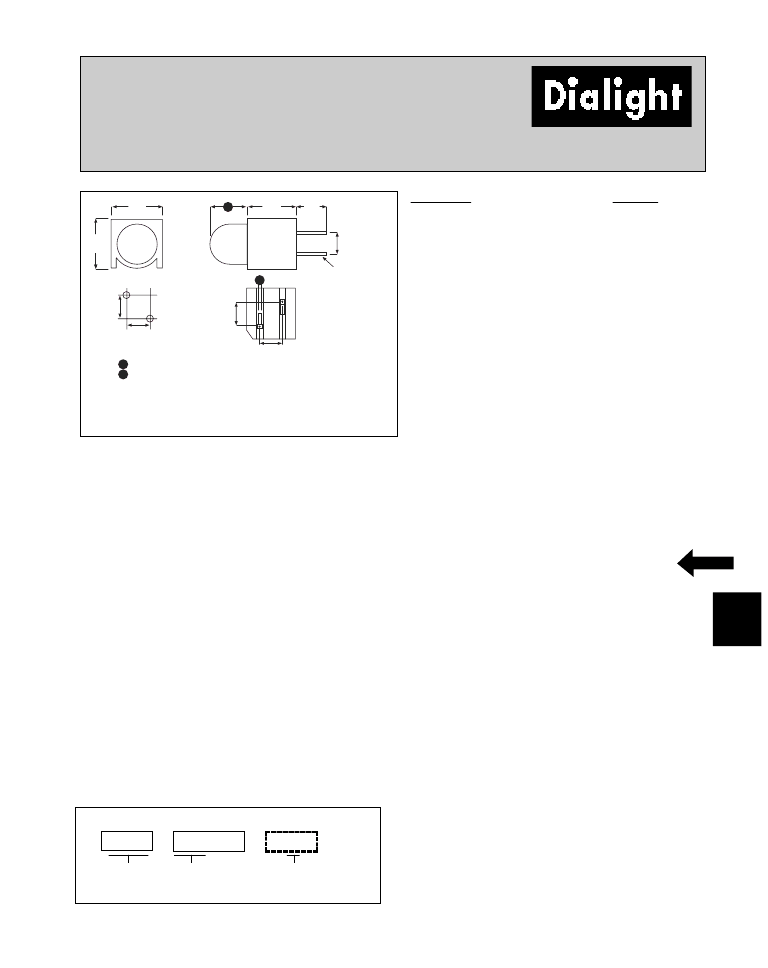

LED CBI
Top View, Single
5mm
Circuit Board Indicator
550-xx04
B
[2.54
REP.C. HOLE
PATTERN
[2.54
[2.54
[6.10
[6.10
[2.54
[5.84
[3.68
A
Yellow Cathode for
Yellow/Green Bi-Color
CATHODE
[2.54
3.43 [.135] for -0204 to -0404, 5.0 [.197] for all others
.635 [.025] for -0504 to -0704, .508 [.020] for all others
Hole diameter: 1.22 [.048] for .635 [.025], 1.02 [.040] for all others
A
B
PART NO.
COLOR
GENERAL PURPOSE
550-0204
550-0304
550-0404
Green
Yellow
Red
INTEGRAL RESISTOR
550-0504
550-0704
550-0804
Red, 5V
Green, 5V
Yellow, 5V
LOW CURRENT
550-1104
550-1204
550-1304
Red
Yellow
Green
HIGH EFFICIENCY
550-2204
550-2304
550-2404
550-2504
Green
Yellow
Red
Orange
BI-COLOR
550-3004
550-3104
Red/Green
Yellow/Green
SUPER BRIGHT, DIFFUSED
550-5104
550-5204
550-5304
Red
Green
Yellow
(Non-tinted, Non-diffused)
550-5504
550-5604
550-5704
SUPER BRIGHT, WATER CLEAR
Red
Green
Yellow
Features
Multiple CBIs form horizontal LED arrays on 6.35mm
(0.250”) center-lines.
High Contrast, UL 94 V-0 rated, black housing
Oxygen index: 32%
Polymer content: PBT, 0.160 g
Housing stand-offs facilitate PCB cleaning
Solderability per MIL-STD-202F, method 208F
LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
Compatible with:
550-xx04-004 quad block
Custom
For custom LEDs contact factory.
Tolerance note: As noted, otherwise:
LED Protrusion: ±0.04 mm [±0.016]
CBI Housing: ±0.02mm[±0.008]
Dimensions in mm [inches]
5 5 0
x x 0 4
0 1 0
Reverse Polarity Option
1) Cathode Opposite Side
of notch
–010 Ordering Code Suffix required ONLY for Reverse Polarity Option
LED Type
PART NUMBER ORDERING CODE
–
Standard Polarity shown in drawing: Cathode same side as notch
Series
to the part numbers shown above.
To order any of the 550-xx04 part numbers with Reverse
Polarity (Cathode opposite side of notch), please add -010
–
NEW
