MAX4714
0.8
, Low-Voltage, Single-Supply
SPDT Analog Switch in SC70
6
_______________________________________________________________________________________
tr < 5ns
tf < 5ns
50%
VINL
LOGIC
INPUT
RL
50
COM
GND
IN
CL INCLUDES FIXTURE AND STRAY CAPACITANCE.
VOUT = VN_
(
RL
)
RL + RON
VINH
tOFF
0V
NO
OR NC
0.9
× V0UT
0.9
× VOUT
tON
VOUT
SWITCH
OUTPUT
LOGIC
INPUT
LOGIC INPUT WAVEFORMS INVERTED FOR SWITCHES
THAT HAVE THE OPPOSITE LOGIC SENSE.
V+
CL
35pF
V+
VOUT
MAX4714

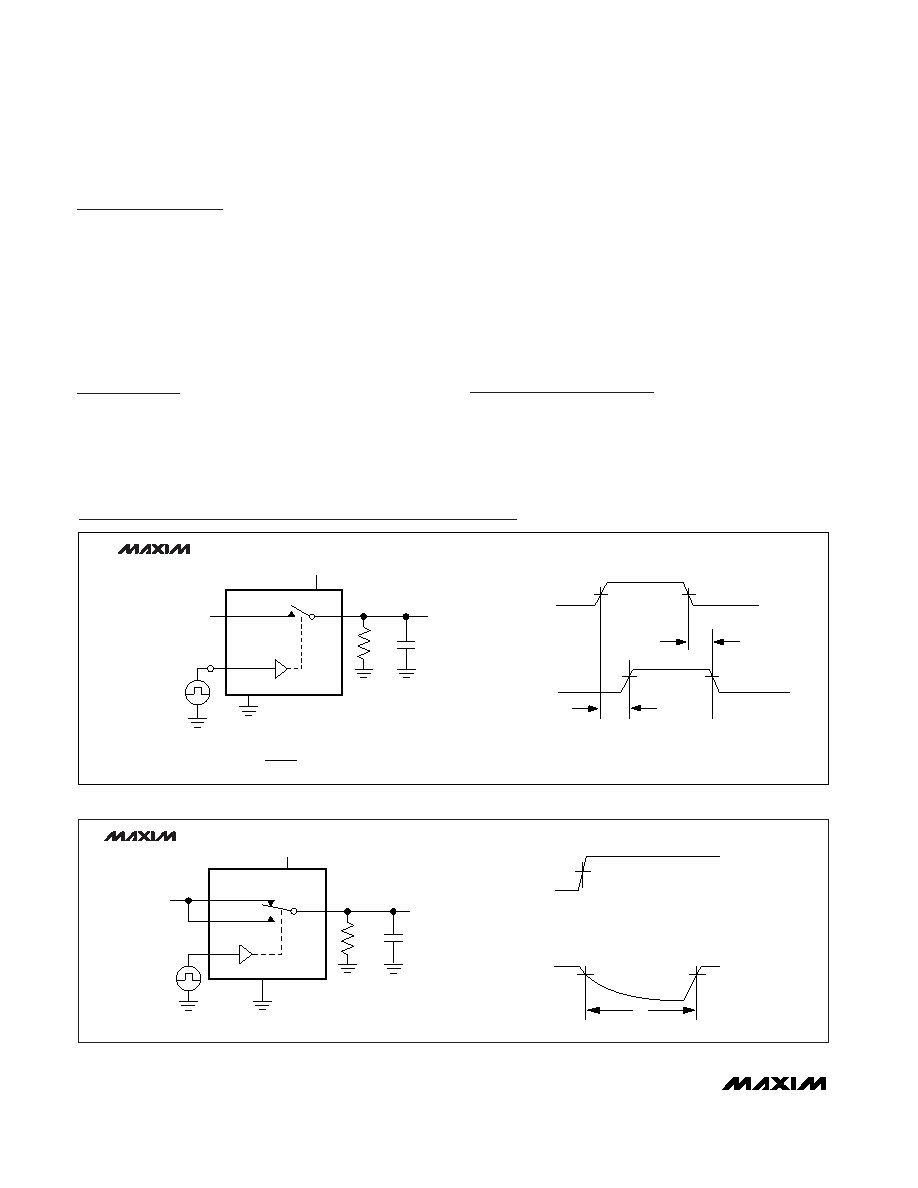

Figure 1. Switching Time
50%
VINH
VINL
LOGIC
INPUT
VOUT
0.9
× VOUT
tD
LOGIC
INPUT
RL
50
GND
CL INCLUDES FIXTURE AND STRAY CAPACITANCE.
NO
IN
NC
VOUT
V+
CL
35pF
VN_
COM
MAX4714
Figure 2. Break-Before-Make Interval
Test Circuits/Timing Diagrams
Detailed Description
The MAX4714 is a low-on-resistance (RON), low-volt-
age, single-pole/double-throw (SPDT) analog switch
that operates from a +1.6V to +3.6V supply. The
MAX4714 has break-before-make switching. This
device also has fast switching speeds (tON = 18ns,
max, tOFF = 12ns, max).
When powered from a +3V supply, the 0.8
(max) RON
allows high continuous currents to be switched in a
variety of applications.
Applications Information
Logic Inputs
The MAX4714 logic input can be driven up to +3.6V
regardless of the supply voltage. For example, with a
+3.3V supply, IN may be driven low to GND and high to
+3.6V. Driving IN rail-to-rail minimizes power consump-
tion.
Analog Signal Levels
Analog signals that range over the entire supply voltage
(V+ to GND) can be passed with very little change in
on-resistance (see Typical Operating Characteristics).
The switches are bidirectional, so the NO, NC, and
COM pins can be used as either inputs or outputs.
Chip Information
TRANSISTOR COUNT: 135
PROCESS: CMOS
