3.4 - 29
3.4

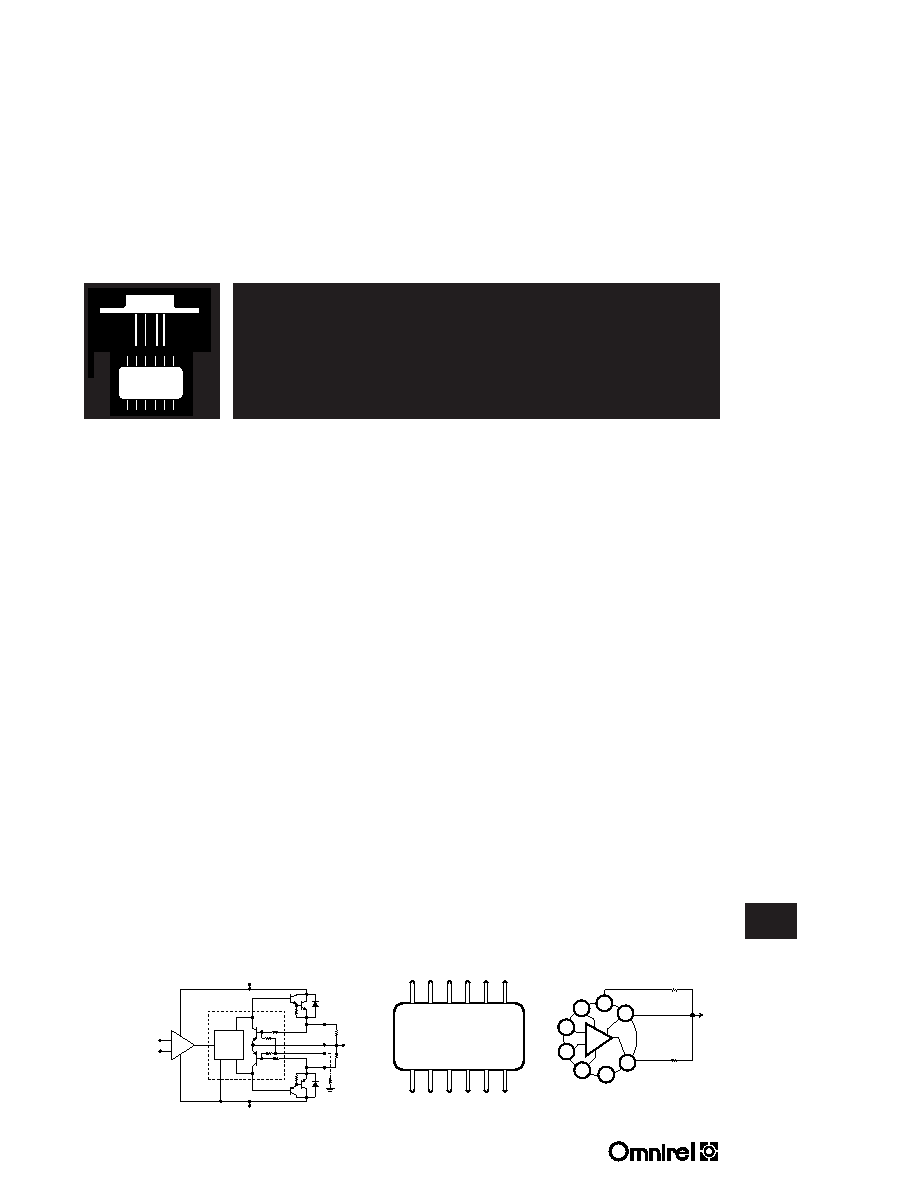

15 Amp Peak Operational Amplifier
4 11 R0
HIGH POWER, VERY HIGH CURRENT OPERATIONAL
AMPLIFIER APPROVED TO DESC DRAWING 5962-90659
FEATURES
Approved to DESC 5962-90659
Available In Isolated Standard TO-3, “Copper Slug” TO-3 And
Power DIP Packages
15 Amp Peak Output Current
Power Supplies to ±50V
Class A/B Output Stage
Low Distortion
DESCRIPTION
The OMA512 is a high voltage, very high current operational amplifier designed to
drive a wide variety of resistive and reactive loads. The circuit is a hybrid integrated
type housed in a variety of hermetically sealed packages and is isolated from the
case. It is ideally suited for critical environments in applications such as motor
drivers, servo amplifiers, audio amplifiers and synchro exertation.
ABSOLUTE MAXIMUM RATINGS @ 25°C
Supply Voltage ..................................................... ±50V
Output Current: Source ................................................ 15A
Sink ............................................. See SOA
Power Dissipation, Internal ........................................... 125W
Input Voltage: Differential ......................................... ±50V - 3V
Common Mode ......................................... ±50V
Operating Temperature Range ................................ -55°C to 125°C
Storage Temperature Range ................................. -65°C to 150°C
Lead Temperature (10 Sec. Soldering) ................................ 300°C
OMA512SKCB
OMA512SKB
OMA512SDB
SCHEMATIC TO-3
PIN CONNECTION
4
2
1
7
OUT
(Optional)
RCL+
RCL–
RVI
8
5
+
–
-VS
6
+VS
3
BIAS
CIRCUIT
Output
+Current
Limit
+VS
-VS
+RCL
-RCL
+IN
-IN
RVI
-Current
Limit
1
2
3
4
5
6
7
8
+
-
D-12 Top View
TO-3 Top View
N/C -CL
Out R
V1
+CL N/C
-V
S
N/C +IN
-IN
N/C +V
S
Pin 1
