a
AMP03
Precision, Unity-Gain
Differential Amplifier
FEATURES
High CMRR: 100 dB Typ
Low Nonlinearity: 0.001% Max
Low Distortion: 0.001% Typ
Wide Bandwidth: 3 MHz Typ
Fast Slew Rate: 9.5 V/ s Typ
Fast Settling (0.01%): 1
s Typ
Low Cost
APPLICATIONS
Summing Amplifiers
Instrumentation Amplifiers
Balanced Line Receivers
Current-Voltage Conversion
Absolute Value Amplifier
4to 20 mA Current Transmitter
Precision Voltage Reference Applications
Lower Cost and Higher Speed Version of INA105
GENERAL DESCRIPTION
The AMP03 is a monolithic unity-gain, high speed differential
amplifier. Incorporating a matched thin film resistor network,
the AMP03 features stable operation over temperature without
requiring expensive external matched components. The AMP03
is a basic analog building block for differential amplifier and
instrumentation applications.
The differential amplifier topology of the AMP03 both amplifies
the difference between two signals and provides extremely high
rejection of the common-mode input voltage. By providing
common-mode rejection (CMR) of 100 dB typical, the AMP03
solves common problems encountered in instrumentation design.
As an example, the AMP03 is ideal for performing either addi-
tion or subtraction of two signals without using expensive
externally matched precision resistors. The large common-mode
rejection is made possible by matching the internal resistors to
better than 0.002% and maintaining a thermally symmetric
layout. Additionally, due to high CMR over frequency, the
AMP03 is an ideal general amplifier for buffering signals in a
noisy environment into data acquisition systems.
The AMP03 is a higher speed alternative to the INA105.
Featuring slew rates of 9.5 V/
s and a bandwidth of 3 MHz, the
AMP03 offers superior performance to the INA105 for high
speed current sources, absolute value amplifiers, and summing
amplifiers.

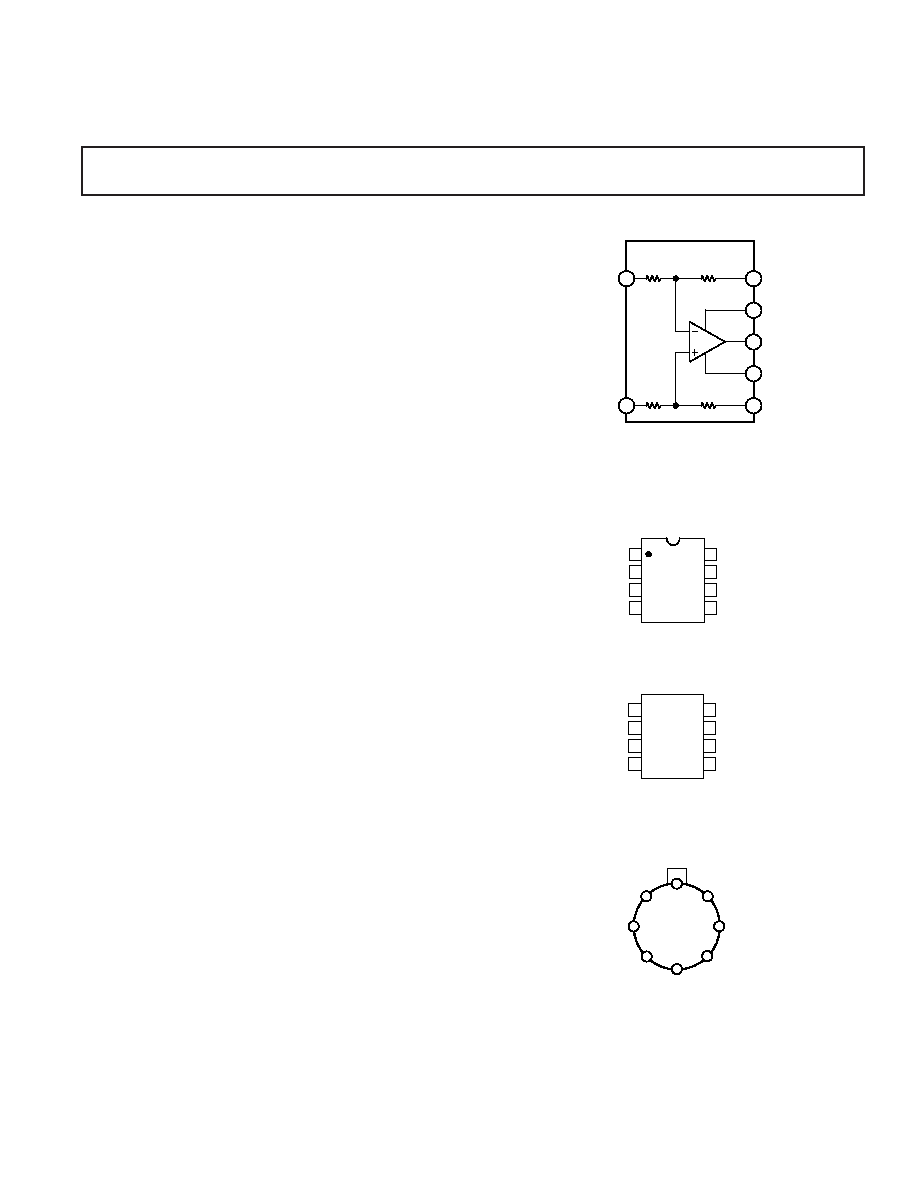

FUNCTIONAL BLOCK DIAGRAM
–IN
+IN
SENSE
+VCC
OUTPUT
–VEE
REFERENCE
25k
6
7
1
2
3
4
5
AMP03
PIN CONNECTIONS
8-Lead PDIP
(P Suffix)
1
2
3
4
8
7
6
5
TOP VIEW
(Not to Scale)
NC = NO CONNECT
AMP03
REFERENCE
SENSE
OUTPUT
V+
NC
–IN
+IN
V–
8-Lead SOIC
(S Suffix)
1
2
3
4
8
7
6
5
TOP VIEW
(Not to Scale)
NC = NO CONNECT
AMP03
REFERENCE
SENSE
OUTPUT
V+
NC
–IN
+IN
V–
Header
(J Suffix)
8
REFERENCE 1
–IN 2
+IN 3
7 V+
6 OUTPUT
5 SENSE
4
V–
NC
NC = NO CONNECT
