MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION
725 E.Walnut St., Garland, TX 75040
(972) 272-3571
Fax (972) 487-6918
www.micropac.com
E-MAIL:
optosales@micropac.com
6 - 24
62005
GaAlAs LIGHT EMITTING DIODE “PILL PACK”
Mii
OPTOELECTRONIC PRODUCTS
DIVISION
REVISED 02/22/01
Features:
Hermetically sealed
High output, 880nm
Small package
PC board mountable
Spectrally matched to the 61055 series detector
Applications:
Incremental encoding
Reflective sensors
Position sensors
Level sensors
DESCRIPTION
The
62005
is a P-N GaAlAs Infrared Light Emitting Diode in a package designed to be mounted in a double-clad printed circuit
board. It is spectrally and mechanically matched to companion phototransistors and photodarlingtons and is lensed to provide
good light transfer and to minimize crosstalk. Available binned to customer specifications and/or screened to MIL-PRF-19500.
ABSOLUTE MAXIMUM RATINGS
Storage Temperature..........................................................................................................................................-65°C to +150°C
Operating Temperature ......................................................................................................................................-55°C to +125°C
Reverse Voltage( at 25°C case temperature) .....................................................................................................................2Vdc
Forward Current – Continuous ……………(See note 1) ..................................................................................................100mA
Soldering Temperature (10 Seconds)................................................................................................................................240°C
NOTES:
1.
Derate linearly to 125
°
C free-air temperature at the rate of 1mA/
°
C.

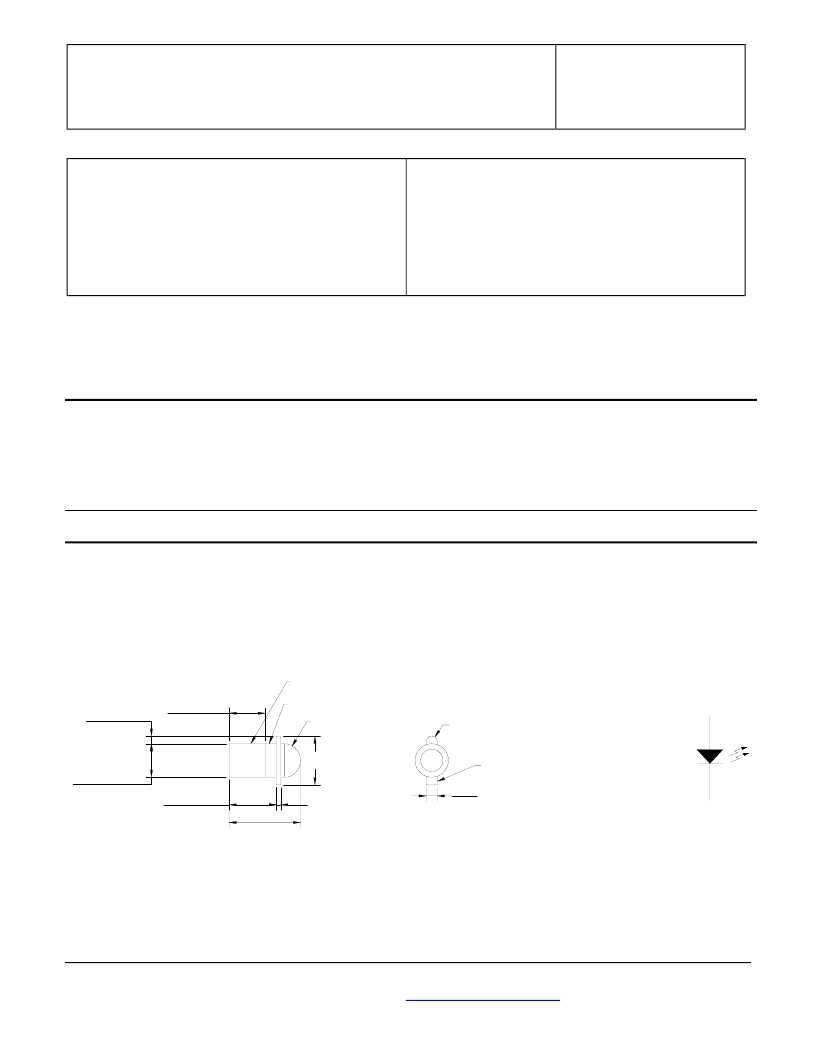

Package Dimensions Schematic Diagram
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
0.024 [.610]
0.016 [.406]
CATHODE
0.135 [3.429]
0.122 [3.098]
0.008 [0.19]
0.088 [2.235]
0.082 [2.083]
0.067 [1.702]
0.063 [1.600]
0.061 [1.549]
0.058 [1.473]
0.092 [2.337]
0.084 [2.134]
0.019 [0.483]
0.009 [0.229]
CERAMIC
LENS
ANODE
R0.010 [R0.25]
K
A
