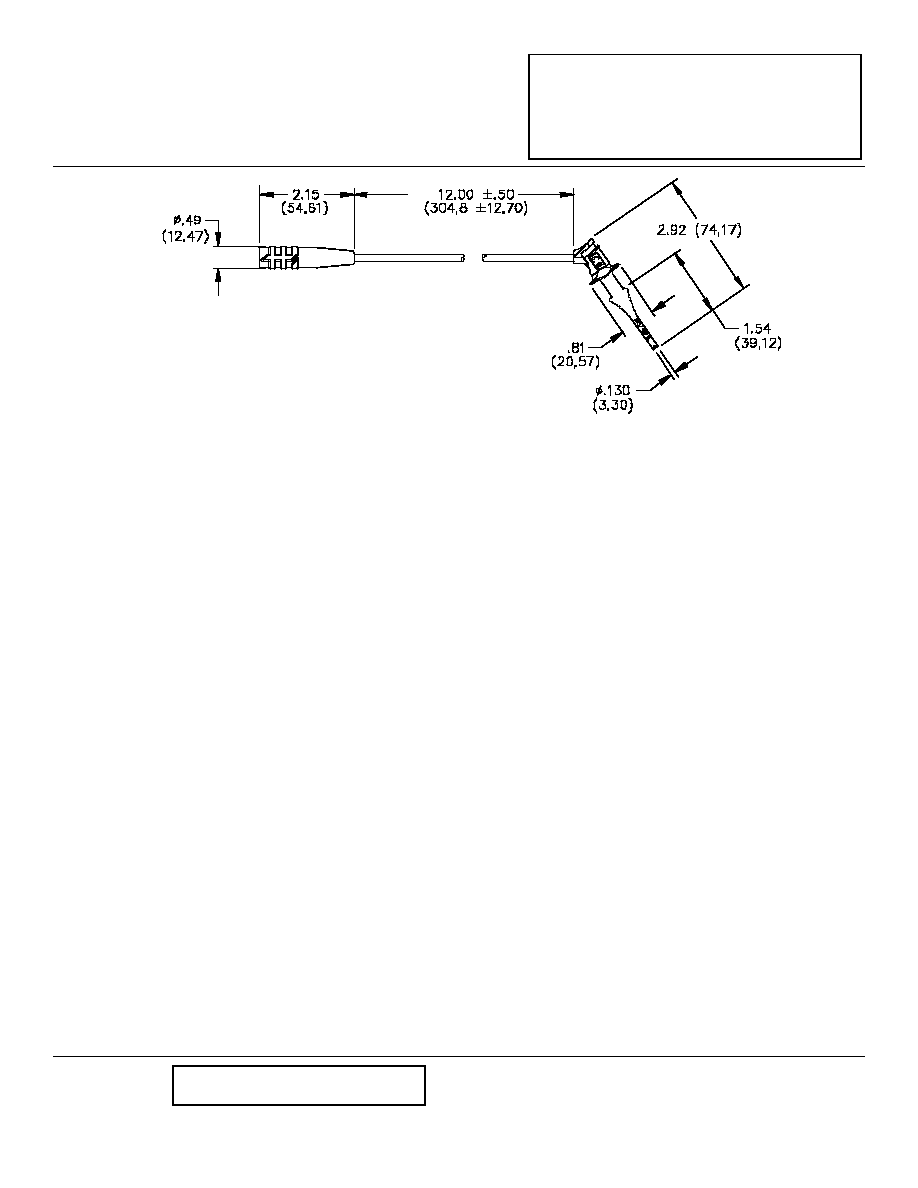

Model 6261
Minipincer Test Clip To
Sheathed Banana Jack
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
FEATURES:
Newly designed Minipincer Test Lead Patch Cord with Pincer contacts complies with IEC 1010-2-31, which
is the latest international safety standard for test accessories.
Pincer width is a slim .36” (9,14 mm) for easier access to test terminals.
Pincer clamp is gold plated Beryllium Copper to ensure signal integrity & attaches onto component leads up to
.060” (1,5 mm) O.D.
Pincer patch cord can connect directly to Pomona’s sheathed type flexible tests leads for added patch cord
length.
For added safety, the grabber and banana plug body insulation material is fire retardant Nylon 6, UL94V-0
rated.
Banana jack is molded directly to the wire for a long lasting connection.
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance.
MATERIALS:
Grabber: Body: Nylon 6 – Fire Retardant – UL94 V-O Rated, Color per part number
Pincer: Beryllium Copper, Gold Plated, Compression Spring: Music Wire
Wire: 18 AWG, 65 x 36 Tinned Copper, Insulation – Silicone, .144” (3,66 mm) O.D., Color per Part Number
Banana Jack: Body - Brass, Nickel Plated
Insulation - Nylon 6, Fire Retardant UL94 V-0 Rated, Color per part number
RATINGS:
IEC 1010 2-031, Category II, P2 Compliant
Operating Voltage: 300 VRMS/DC Max.
Current: 5 Amperes Max.
ORDERING INFORMATION: Model 6261-12-*
Standard Wire Length: 12" (30,48 cm). Additional lengths can be quoted upon request.
* = Color Code, -0 Black and –2 Red
