MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION
725 E. Walnut St., Garland, TX 75040
(972) 272-3571
Fax (972) 487-6918
www.micropac.com
E-MAIL: optosales@micropac.com
3 - 22
66013
DUAL CHANNEL, HERMETICALLY SEALED, HIGH-SPEED
6N134 OPTOCOUPLER
Mii
OPTOELECTRONIC PRODUCTS
DIVISION
Features:
DSCC Approved 8102801EX
5 MHz bandwidth typical
1500 Vdc isolation test voltage
TTL compatible input and output
High radiation immunity
Faraday shield to provide high common mode
rejection
Applications:
Military and space
High reliability systems
Voltage level shifting
Isolated receiver input
Communication systems
Medical systems
DESCRIPTION
The
66013
dual channel optocoupler consists of two LED’s optically coupled to two high speed, high gain inverting detector
gates. Maximum isolation can be achieved while providing TTL outputs capable of switching with propagation delays of 55ns
typical. The 66013 is a 16 pin dual-in-line, hermetically sealed package and is available in standard and MIL-PRF-38534
screened versions or tested to customer specifications.
ABSOLUTE MAXIMUM RATINGS
Storage Temperature..........................................................................................................................................-65°C to +150°C
Operating Free-Air Temperature Range............................................................................................................-55°C to +125°C
Lead Solder Temperature (For 10s, 1/16” [1.6mm] from package)...................................................................................260°C
Peak Forward Input Current (each channel)..............................................................................................40mA (1ms duration)
Average Forward Input Current (each channel)................................................................................................................. 20mA
Input Power Dissipation (each channel)............................................................................................................................ 35mW
Reverse Input Voltage (each channel).................................................................................................................................... 5V
Supply Voltage.........................................................................................................................................7V(1 minute maximum)
Output Current - I
O
(each channel)......................................................................................................................................25mA
Output Power Dissipation (each channel) .........................................................................................................................40mW
Output Voltage - V
O
(each channel).........................................................................................................................................7V
Total Power Dissipation (both channels)..........................................................................................................................350mW

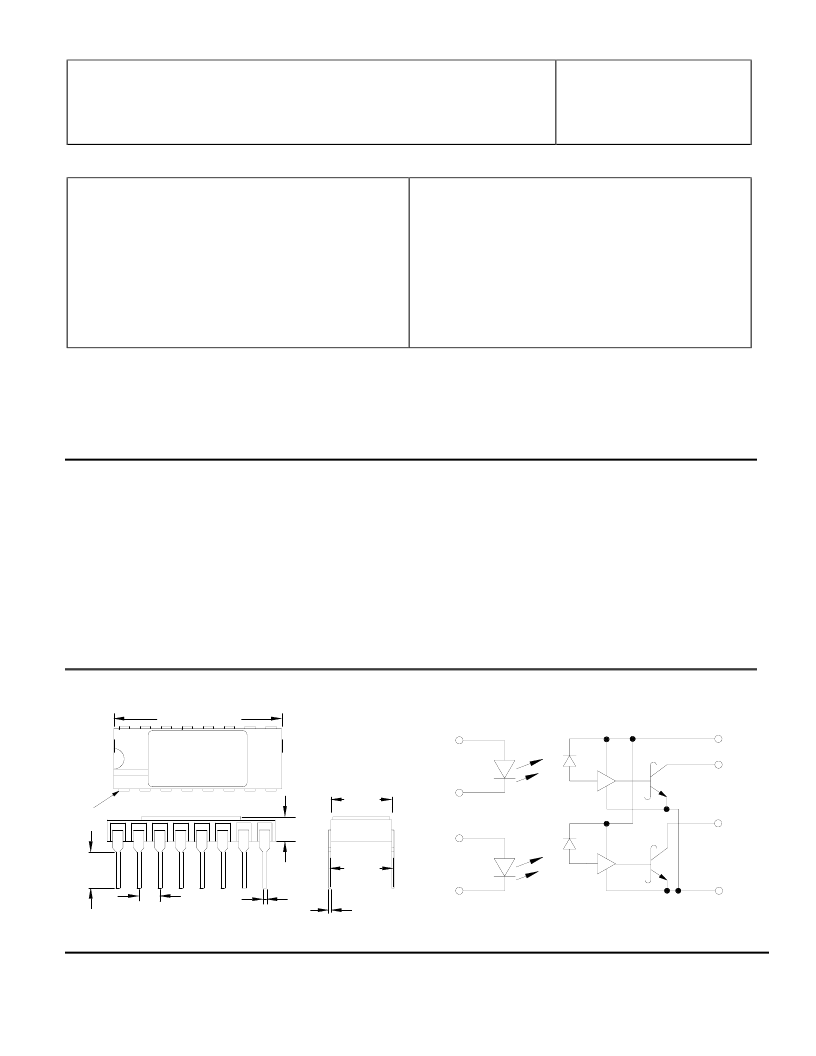

Package Dimensions
Schematic Diagram
PIN 1
2
10
14
15
1
GND
.800±.020 [20.32]
0.120 [3.05]
0.175 [4.45]
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
0.018 [0.46]
0.100 [2.54]
0.290 [7.37]
0.301 [7.65]
0.011 [0.28]
6
5
K
A
A
K
Vo1
Vcc
Vo2
12
