MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION
725 E. Walnut St.., Garland, TX 75040
(972) 272-3571
Fax (972) 487-6918
www.micropac.com
E-MAIL: optosales@micropac.com
3 - 34
66056
SINGLE/DUAL CHANNEL, HERMETICALLY SEALED,
VERY HIGH SPEED OPTOCOUPLER
Mii
OPTOELECTRONIC PRODUCTS
DIVISION
Rev 1 7/3/01
Features:
DSCC Approved 8102802PX (Dual); and
single channel version optocoupler
10 MHz bandwidth typical
1500 Vdc isolation test voltage
TTL compatible input and output
High radiation immunity
Faraday shield to provide high common mode
rejection
Applications:
Military and space
Voltage level shifting
Isolated receiver input
Communication systems
Medical systems
DESCRIPTION
The
66056
single and dual channel optocouplers consist of LED’s optically coupled to two high speed, high gain inverting
detector gates. Maximum isolation can be achieved while providing TTL outputs capable of switching with propagation delays
of 55ns typical. The 66056 is available in military temperature range and military temperature with 100% device screening.
The devices are built in eight-pin dual-in-line, hermetically sealed packages and provide high input to output DC isolation.
ABSOLUTE MAXIMUM RATINGS
Storage Temperature ............................................................................................................................................-65°C to +150°C
Operating Free-Air Temperature Range...............................................................................................................-55°C to +125°C
Lead Solder Temperature ..........................................................................................260°C for 10s (1.6mm below seating plane)
Peak Forward Input Current (each channel) .................................................................................................40mA (1ms duration)
Average Forward Input Current (each channel)…(see Note 1) ............................................................................................ 20mA
Input Power Dissipation (each channel) ............................................................................................................................... 35mW
Reverse Input Voltage (each channel) ........................................................................................................................................5V
Supply voltage - V
CC
..................................................................................................................................7V(1 minute maximum)
Output Current - I
O
(each channel) ........................................................................................................................................ 25mA
Output Power Dissipation (each channel) ............................................................................................................................ 40mW
Output Voltage - V
O
(each channel) ............................................................................................................................................7V
Total Power Dissipation (per channels) .............................................................................................................................. 175mW
NOTES:
1. Derate I
F
at 0.05mA/°C above 25°C.

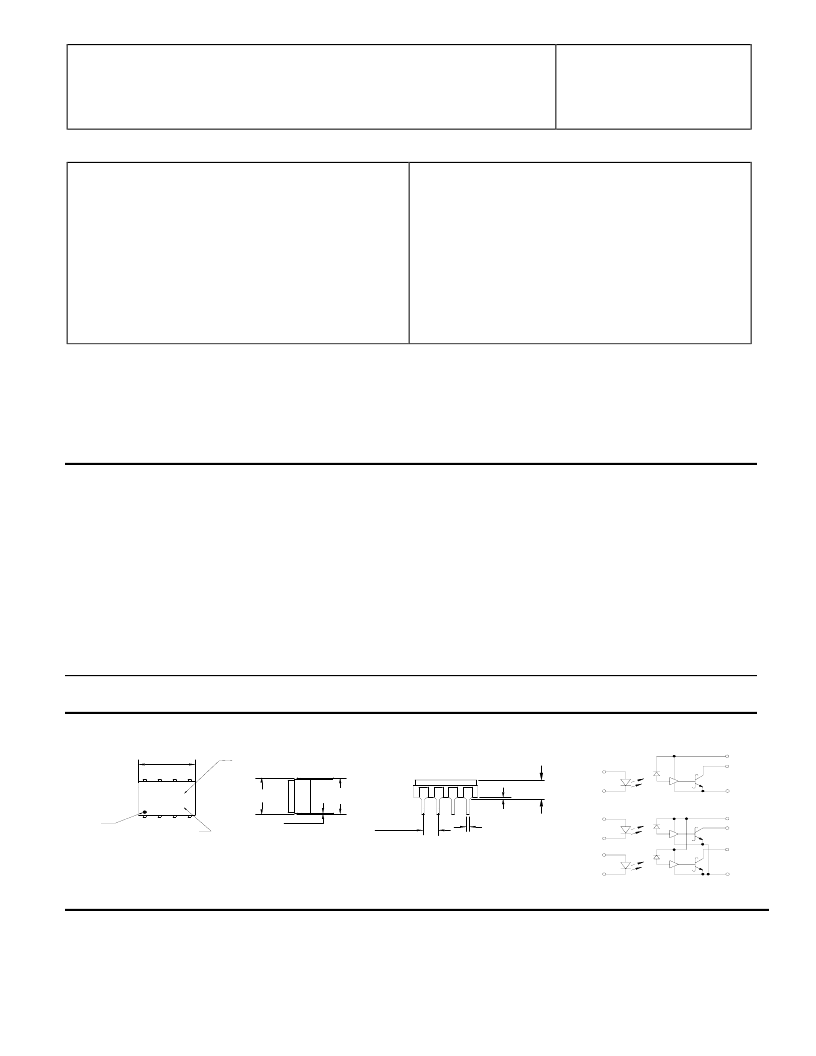

Package Dimensions
Schematic Diagrams
A LL D IM E N S IO N S A R E IN IN C H E S [M ILLIM E T E R S ]
N O T E :
S ID E VIEW
R EAR VIEW
2
4
3
1
YY W W
U S A
XX XX
E N D V IE W
6
8
7
5
0.170 [4.32]M A X
P IN O N E
TY P E N U M B E R
0.370 [9.040]
0.390 [9.90]
0.320 [8.13]M A X
D A TE C O D E
0.280 [7.11]
0.310 [7.88]
P IN O N E
0.020 [0.51] M IN
0.007 [0.18]
0.013 [0.33]
0.090 [2.28]
0.110 [2.80]
.020 [0.51] M A X
2
K
5
6
A
1
K
A
8
G N D
5
V o2
6
7
V o1
V cc
3
K
5
G N D
2
A
6
V o
8
V cc
S ingle C hannel
D ual C hannel
N O TE :
A .01 to .1 uF bypass
capacitor m ust be placed
betw een V cc and G nd
