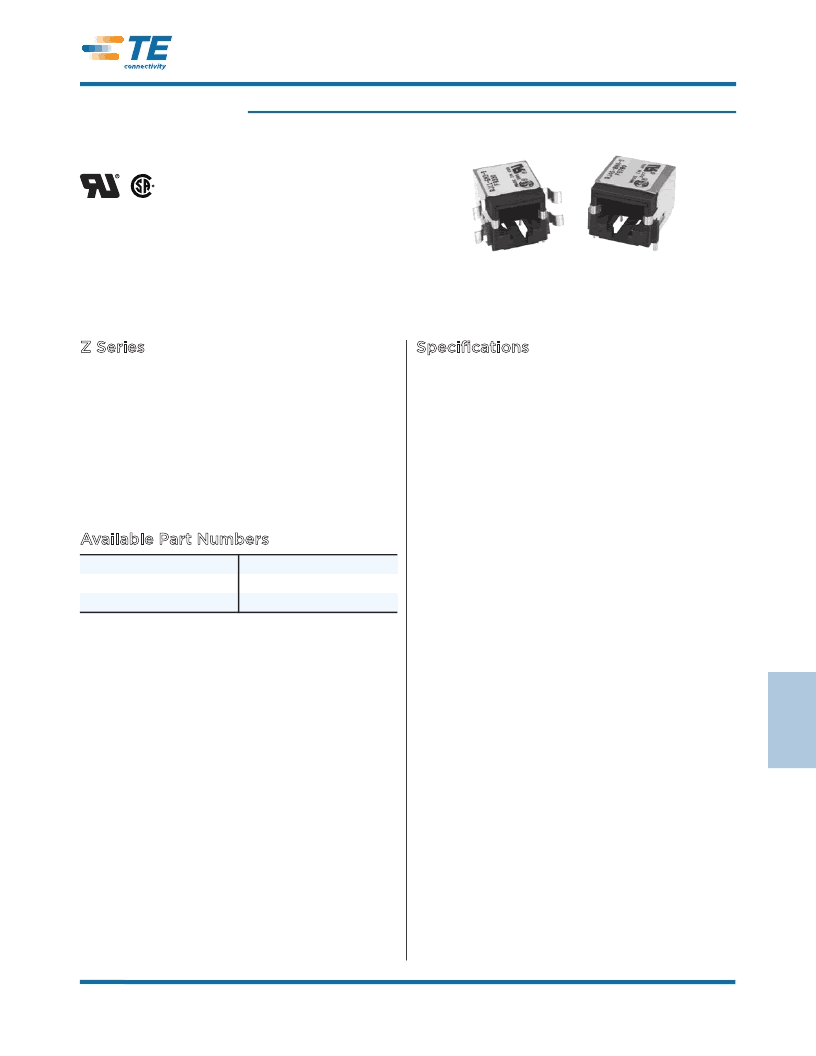

253
Z Series
Corcom Product Guide
S
Z Series
Low profile
Low Profile Unfiltered Modular Jacks
6
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
Catalog: 1654001
Issue Date: 06.2011
For email, phone or live chat, please go to
te.com/help
corcom.com
UL Recognized
CSA Certified
Unfiltered
Available unshielded or shielded with board
grounded shield or spring fingered panel
ground interface
RJ11-6Z
RJ11-6Z3
RJ11-6Z4
RJ45-8Z
RJ45-8Z3
RJ45-8Z4
Available Part Numbers
Shield 3
RJ11
Specifications
Contacts:
Material:
Plating:
Barrier underplating:
Resistance:
Initial:
After 500 mating cycles:
Shield Material:
Housing Material:
Shield 4
RJ45
Model dimensions and PC board layout on pages 255-259
Phosphor Bronze
50 microinches gold
100 microinches nickel
20 m
max.
30 m
max.
Tin-plated copper alloy
Black glass-filled polyester
(VALOX 457)
Dielectric Withstanding Voltage:
Line to Line and Line to Ground:
1000 VAC for
60 seconds
Printed Circuit Board Retention:
Before soldering:
After soldering:
1 lb. minimum
20 lb. minimum
