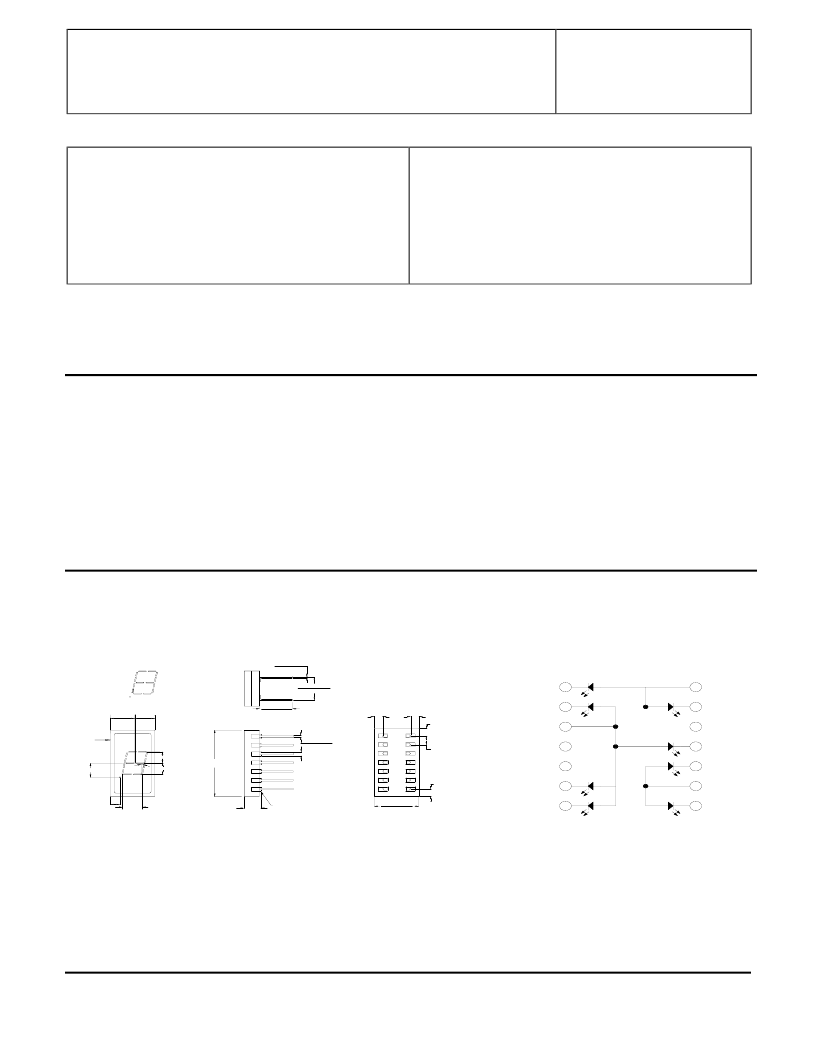

MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION
725 E.Walnut Str., Garland, TX 75040
(972)272-3571
Fax (972)487-6918
www.micropac.com
E-MAIL: OPTOSALES @ MICROPAC.COM
2 - 2
67025
4N41-SEVEN SEGMENT HERMETICALLY SEALED DISPLAY
Mii
OPTOELECTRONIC PRODUCTS
DIVISION
Features:
Hermetically Sealed
Left Hand Decimal
TTL Compatible
High Luminous Intensity
Large Character Height
Applications:
High reliability systems
Instrumentation panels
Communication equipment
Medical equipment
DESCRIPTION
The
67025
(4N41) is a hermetically sealed seven segment display. The high luminous intensity and large character height
make the 67025 ideal for most applications. This high reliability display is available in standard and screened versions.
ABSOLUTE MAXIMUM RATINGS
Storage Temperature..........................................................................................................................................-65°C to +125°C
Operating Free-Air Temperature Range............................................................................................................-55°C to +100°C
Lead Solder Temperature (1/16” [1.6mm] below seating plane for 10s)...........................................................................260°C
Reverse Voltage at 25°C Free-Air Temperature
Each Segment ..................................................................................................................................................................6V
Decimal Point.....................................................................................................................................................................3V
Peak Forward Current at (or below) 70°C Free-Air Temperature (derate linearly to 100°C at the rate of 6.7mA/°C)
Each Segment or Decimal Point ...............................................................................................................................200mA
Average Forward Current at (or below) 70°C Free-Air Temperature (derate linearly to 100°C at the rate of 1mA/°C for each
segment or 8mA/°C for total device)
Each Segment or Decimal Point ..................................................................................................................................30mA
Package Dimensions Schematic Diagram
PIN 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
ANO D ES
E,F,G ,DP
ANO D ES
A,B,
ANO D ES
C,D
DP
A
F
B
C
D
E
G
NC
NC
NC
NC-N O INTERNAL CO NNECTIO N
0.162 [4.11]
0.176 [4.500]
10°
SEATING PLANE
0.760 [19.31]
0.740 [18.79]
A
G
D
E
F
C
B
D.P.
ALL PINS
14
13
12
11
10
9
8
7
6
5
4
2
3
1
0.410 [10.42]
0.390 [9.90]
0.300 [7.62]
ALL PINS
0.260 [6.60]
0.010 [0.310]
0.220
[5.6]
0.180
[4.6]
0.127 [3.23]
0.127 [3.23]
0.087 [2.20]
0.150 [3.81]
0.045 [1.14] M IN
0.022 [0.56]
0.018 [0.457]
0.012 [0.30]
0.008 [0.305]
ALL PINS
0.075 [1.90] M AX
0.075 [1.90] M AX
0.085 [2.16] M AX
0.100 [2.54] T.P.
12 PLACES
(SEE NO TE C.)
0.085 [2.15] M AX
NOTES:
a. All linear dimensions are in millimeters and parenthetically in inches.
b. Centerlines of character segments and decimal points are shown as dashed lines. Associated dimensions are nominal.
c. The true-position pin spacing is 2.54mm (0.10”) between centerlines. Each centerline is located within 0.26mm (0.010”) of it’s true longitudinal
position relative to pins 4 and 11.
