參數資料
| 型號： | 68170-014 |
| 元件分類： | 集成電路和元件插座 |
| 英文描述： | 14 CONTACT(S), MALE, DIP CONNECTOR, IDC |
| 文件頁數： | 1/1頁 |
| 文件大小： | 315K |
| 代理商： | 68170-014 |
PDM: Rev:C
Released
.
STATUS:
Printed: Dec 26, 2005
PDM: Rev:D
Released
.
STATUS:
Printed: Jul 26, 2010

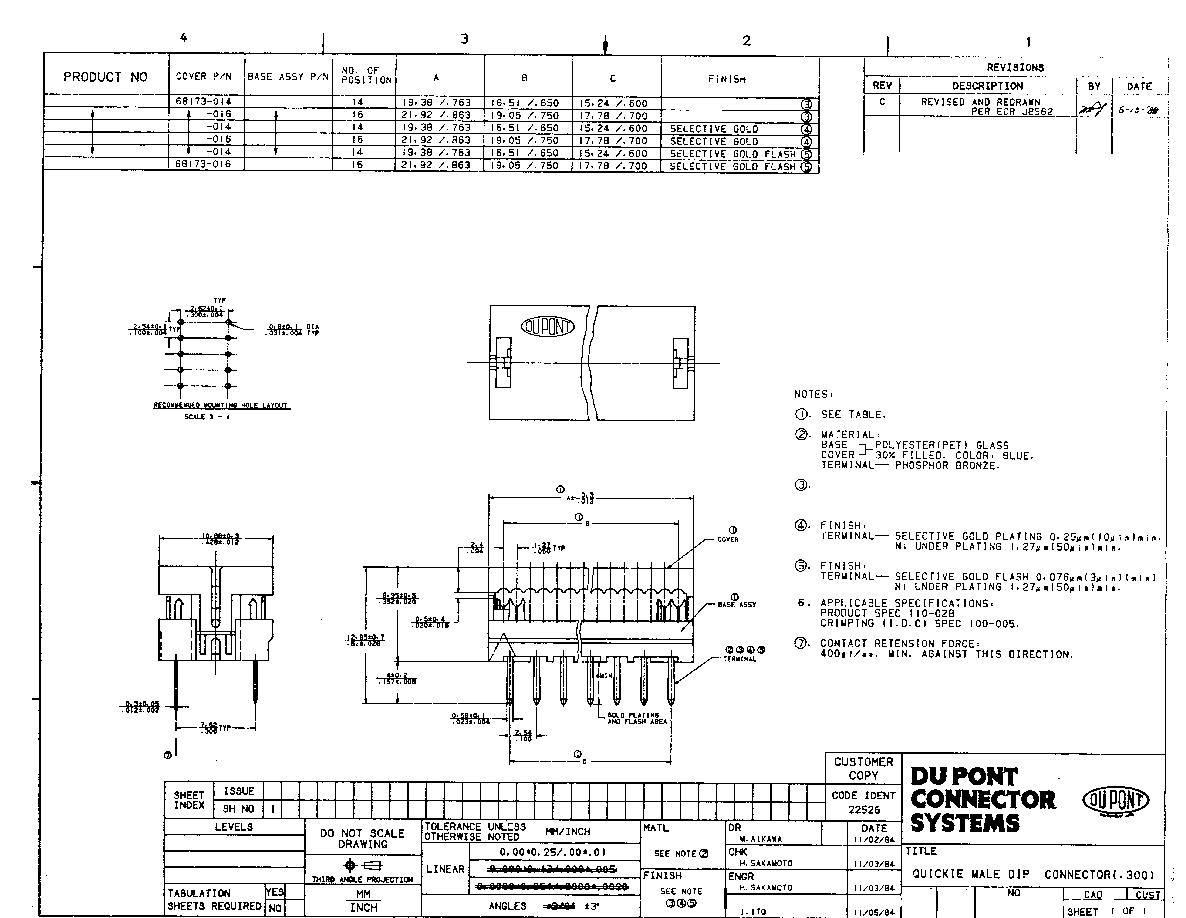

DRW
68170
SIZE
C
SCALE
5-1
APPD
68170-014/014LF
-016/016LF
-114/114LF
-116/116LF
-214/214LF
68170-216/216LF
68171-014/014LF
-016/016LF
-114/114LF
-116/116LF
-214/214LF
67171-216/216LF
ALL OVER SnPb / Sn
TERMINAL FINISH: 1.27um/50u" min Ni UNDER PLATING.
P/N WITHOUT "LF" SUFFIX: ALL OVER 3.8um/150u" SnPb(93/7) PLATING;
P/N WITH "LF" SUFFIX: ALL OVER 3.8um/150u" MATTE SnPLATING;
8. THE P/N WITH "LF" SUFFIX IS LEAD FREE PART NUMBER;
9. HE PACKAGING FOR THE LEAD FREE P/N MEETS GS-14-920 SPECIFICATION;
10. FOR LEAD FREE P/N THE PRODUCT MEETS EUROPEAN UNION DIRECTIVES
AND OTHER COUNTRY REGULATION AS DESCRIBED IN GS-22-008.
11. FOR LEAD FREE P/N, THE HOUSING WILL WITHSTAND EXPOSURE TO 260
DEGREE C FOR 10 SECONDS IN A WAVE SOLDER APPLICATION.
D
REVISED AND REDRAWN
PER N05-0366
DT
12/27/05
