| 型號： | 6850-4500PL |
| 廠商： | 3M ELECTRONIC PRODUCTS DIVISION |
| 元件分類： | 電路板相疊連接器 |
| 英文描述： | 50 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/4頁 |
| 文件大小： | 309K |
| 代理商： | 6850-4500PL |
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M

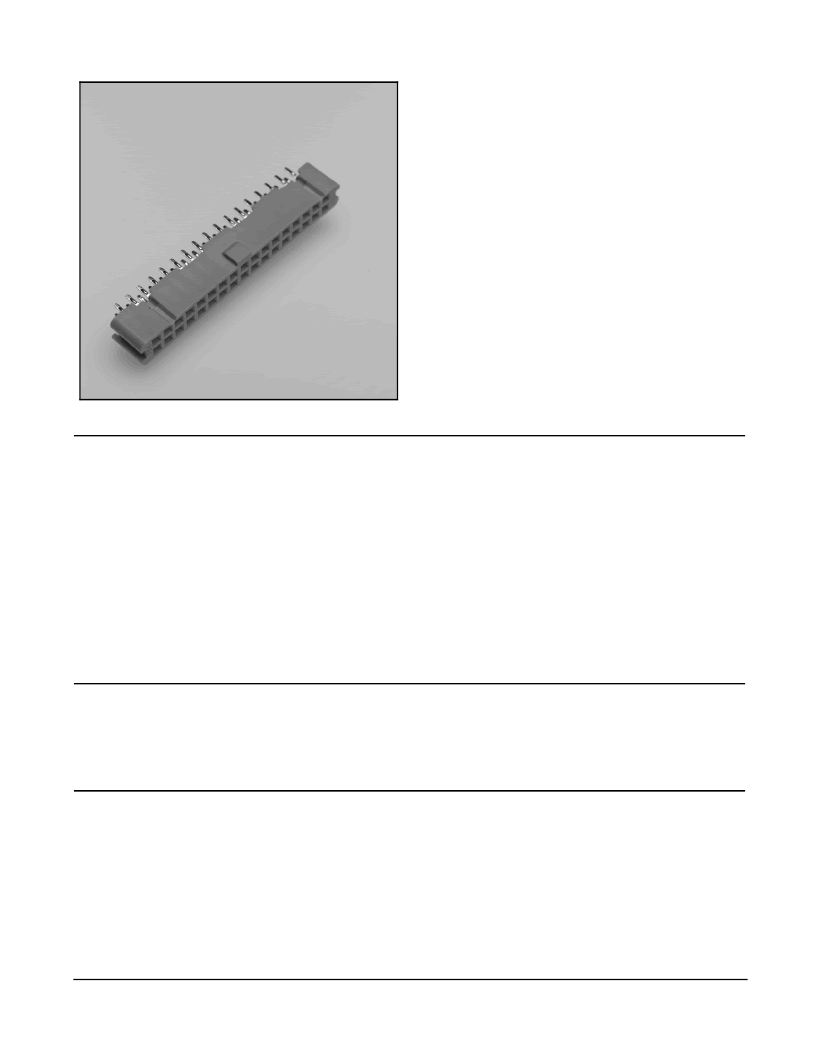

Polarized Boardmount Socket
.100
″
×
.100
″
Centerbump Polarization with Straight Solder Tails
6800 Series
Physical
Electrical
Environmental
Insulation
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact
Material: Copper Alloy
Plating
Underplating: 2
μ
m [ 79
μ″
] Nickel
Wiping Area: 0.3
μ
m [ 12
μ″
] Gold
Solder Tails: Gold flash
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 V
RMS
at Sea Level
Temperature Rating:
-55
°
C to +105
°
C
Process Rating:
Maximum insulator temperature 191°C (Solder Wave Process Only)
Standard centerbump with straight solder tails
Mates with low profile shrouded headers
Part number on each piece
Optional keying plug
34-50 contacts
Military dual polarization
Board retention feature
See regulatory information appendix (RIA) for
chemical compliance information
TS-0689-B
Sheet 1 of 2
Date Modified: August 28, 2007
UL File No.: E68080
