參數資料
| 型號： | 7007L35PF |
| 廠商： | INTEGRATED DEVICE TECHNOLOGY INC |
| 元件分類： | SRAM |
| 英文描述： | 32K X 8 DUAL-PORT SRAM, 35 ns, PQFP80 |
| 封裝： | 14 X 14 MM, 1.40 MM HEIGHT, GREEN, TQFP-80 |
| 文件頁數： | 1/21頁 |
| 文件大小： | 168K |
| 代理商： | 7007L35PF |
1
OCTOBER 2008
DSC 2940/13
2008 Integrated Device Technology, Inc.
I/O
Control
Address
Decoder
MEMORY
ARRAY
ARBITRATION
INTERRUPT
SEMAPHORE
LOGIC
Address
Decoder
I/O
Control
R/
WL
CEL
OEL
BUSYL
A14L
A0L
2940 drw 01
I/O0L-I/O7L
CEL
OEL
R/
WL
SEML
INTL
M/
S
BUSYR
I/O0R-I/O7R
A14R
A0R
SEMR
INTR
CER
OER
(2)
(1,2)
(2)
R/
WR
CER
OER
R/
WR
15
HIGH-SPEED
32K x 8 DUAL-PORT
STATIC RAM
Features
◆
True Dual-Ported memory cells which allow simultaneous
reads of the same memory location
◆
High-speed access
– Military: 25/35/55ns (max.)
– Industrial: 20/25/35/55ns (max.)
– Commercial: 15/20/25/35/55ns (max.)
◆
Low-power operation
– IDT7007S
Active: 850mW (typ.)
Standby: 5mW (typ.)
– IDT7007L
Active: 850mW (typ.)
Standby: 1mW (typ.)
◆
IDT7007 easily expands data bus width to 16 bits or more
using the Master/Slave select when cascading more than
one device
◆
M/
S = H for BUSY output flag on Master,
M/
S = L for BUSY input on Slave
◆
Interrupt Flag
◆
On-chip port arbitration logic
◆
Full on-chip hardware support of semaphore signaling
between ports
◆
Fully asynchronous operation from either port
◆
TTL-compatible, single 5V (±10%) power supply
◆
Available in 68-pin PGA and PLCC and a 80-pin TQFP
◆
Industrial temperature range (–40°C to +85°C) is available
for selected speeds
◆
Green parts available, see ordering information
NOTES:
1. (MASTER):
BUSY is output; (SLAVE): BUSY is input.
2.
BUSY and INT outputs are non-tri-stated push-pull.

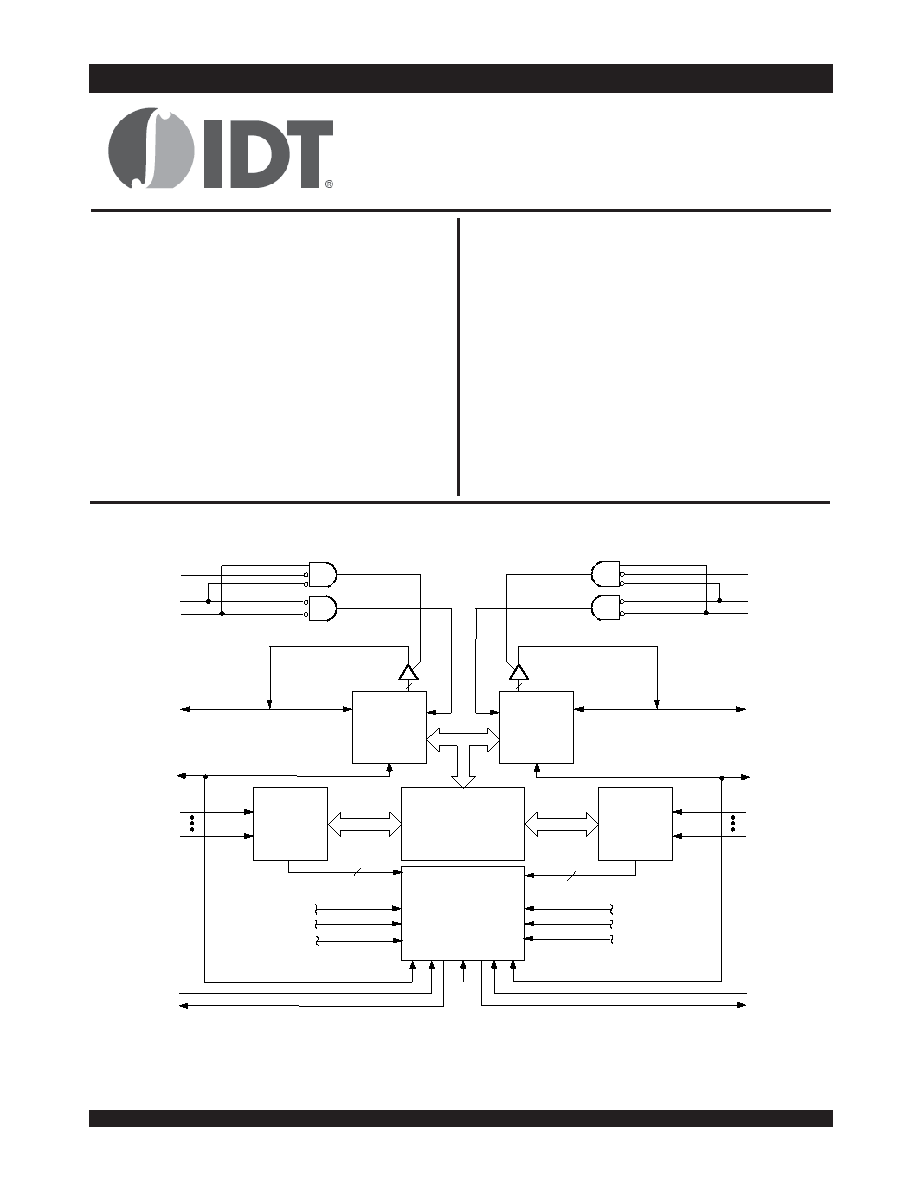

Functional Block Diagram
IDT7007S/L
