IDT70T9169/59L
High-Speed 2.5V 16/8K x 9 Synchronous Pipelined Dual-Port Static RAM
Industrial and Commercial Temperature Ranges
15
A Functional Description
The IDT70T9169/59 provides a true synchronous Dual-Port Static
RAM interface. Registered inputs provide minimal set-up and hold
times on address, data, and all critical control inputs. All internal
registers are clocked on the rising edge of the clock signal, however,
the self-timed internal write pulse is independent of the LOW to HIGH
transition of the clock signal.
An asynchronous output enable is provided to ease asynchronous
bus interfacing. Counter enable inputs are also provided to stall the
operation of the address counters for fast interleaved memory appli-
cations.
CE0
= VIH or CE1 = VIL for one clock cycle will power down the
internal circuitry to reduce static power consumption. Multiple chip
enables allow easier banking of multiple IDT70T9169/59's for depth
expansionconfigurations.WhenthePipelinedoutputmodeisenabled,two
cycles are required to get valid data on the outputs.
Depth and Width Expansion
TheIDT70T9169/59featuresdualchipenables(refertoTruthTable
I)inordertofacilitaterapidandsimpledepthexpansionwithnorequire-
mentsforexternallogic.Figure4illustrateshowtocontrolthevariouschip
enables in order to expand two devices in depth.
The IDT70T9169/59 can also be used in applications requiring
expandedwidth,asindicatedinFigure4.Sincethebanksareallocated
atthediscretionoftheuser,theexternalcontrollercanbesetuptodrive
the input signals for the various devices as required to allow for 18-bit
or wider applications.

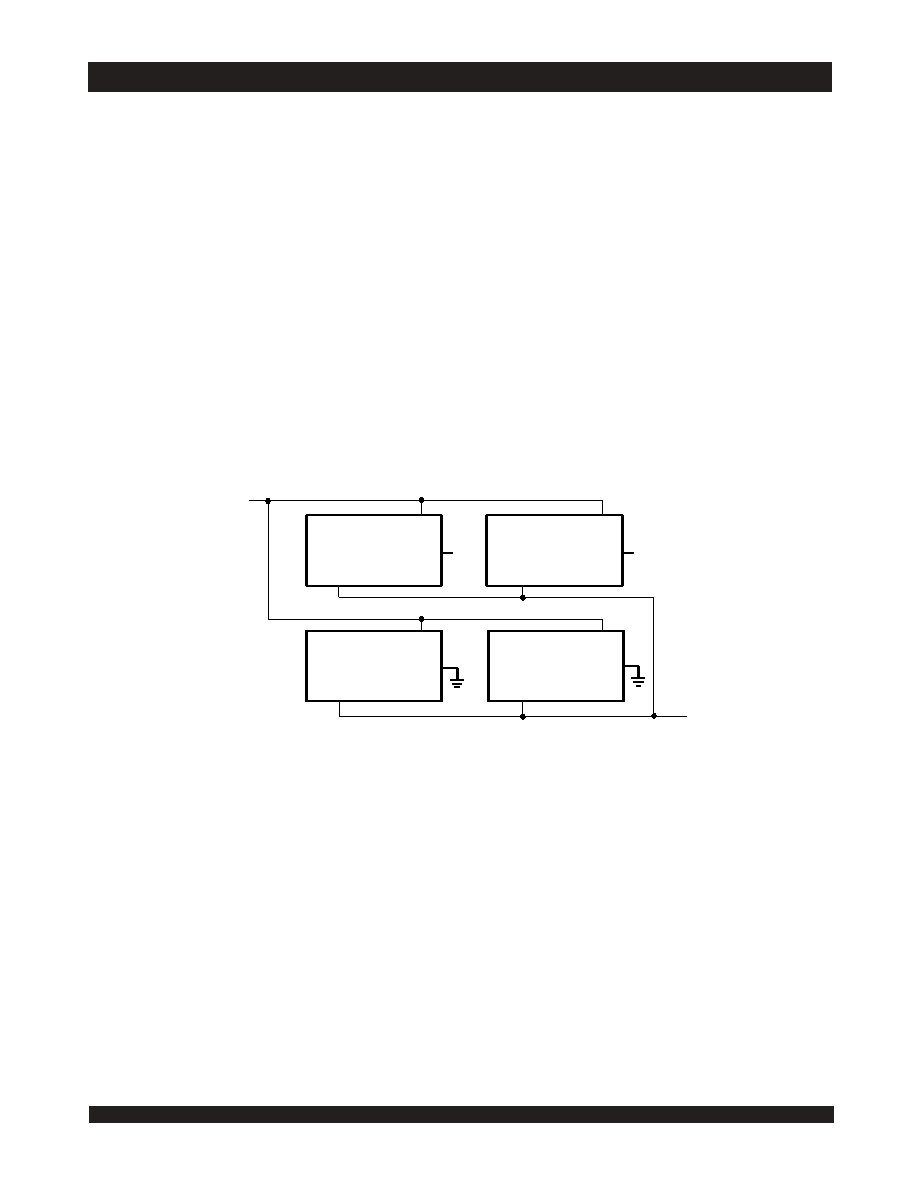

Figure 4. Depth and Width Expansion with IDT70T9169/59
5654 drw 19
IDT70T9169/59
CE0
CE1
CE0
CE1
A14/A13(1)
CE1
CE0
VDD
IDT70T9169/59
Control Inputs
CNTRST
CLK
ADS
CNTEN
R/
W
OE
NOTE:
1. A14 is for IDT70T9169, A13 is for IDT70T9159.
