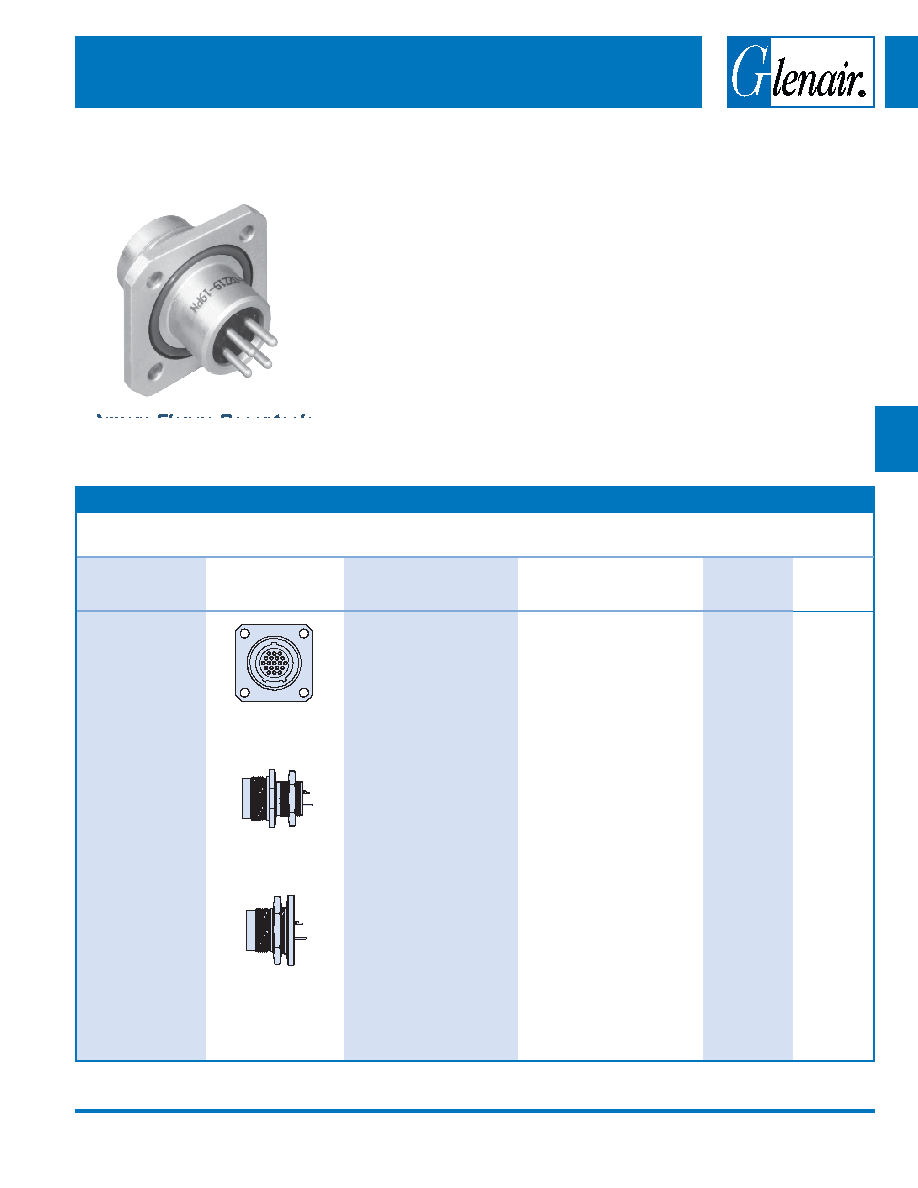

Series 802 “Aqua Mouse”
3500 PSI Rated
Square Flange Receptacle
with 4 #16 PCB Contacts
(Layout 9-4)
Series 802 PCB/Solder Receptacles
feature .020" gold-plated tails for
solder termination to rigid or exible
circuits or solder cups for attaching
wire. Contacts are non-removable.
316 series stainless steel
shells and Viton O-rings for
excellent performance in corrosive
environments.
Three Shell Styles: jam nut with
o-ring for rear panel mounting, jam nut
with o-ring for front panel mounting, or
square ange for front panel mounting.
HOW TO ORDER SERIES 802 PCB / SOLDER CUP RECEPTACLES
Sample Part Number
802-012
– 00
Z1
6-1
P
A
Series
Shell Style
Shell Material / Finish
Shell Size- Insert
Arrangement
Contact
Type
Shell Key
Position
802-012
Receptacle with
Solder Cup or PCB
Contacts
02
Square Flange
00
Jam Nut for Front
Panel Mounting
07
Jam Nut for Rear
Panel Mounting
Z1
Stainless Steel /
Passivated
ZM
Stainless Steel /
Electroless Nickel Plated
5-3
3 #23 Contacts
6-1
1 #16 Contact
6-4
4 #23 Contacts
6-7
7 #23 Contacts
7-1
1 #12 Contact
7-10
10 #23 Contacts
8-13
13 #23 Contacts
9-4
4 #16 Contacts
9-19
19 #23 Contacts
10-26 26 #23 Contacts
12-2
2 #12 Contacts
12-37 37 #23 Contacts
14-55 55 #23 Contacts
15-85 85 #23 Contacts
P
Pin, PC Tail
S
Socket, PC
Tail
E
Pin, Solder
Cup
F
Socket,
Solder Cup
A
Normal
B
Pos. B
C
Pos. C
D
Pos. D
Series 802 Receptacles for PCB or Solder Cup
Epoxy Sealed to prevent water
ingress in "open face" condition.
Viton o-ring provides sealing to
3500 PSI hydrostatic pressure
when mated. Open face (unmated)
pressure rating is 1 meter immersion
for one hour. For 1000 PSI open face
rating, please see the following Series
802 Hermetic connector information.
