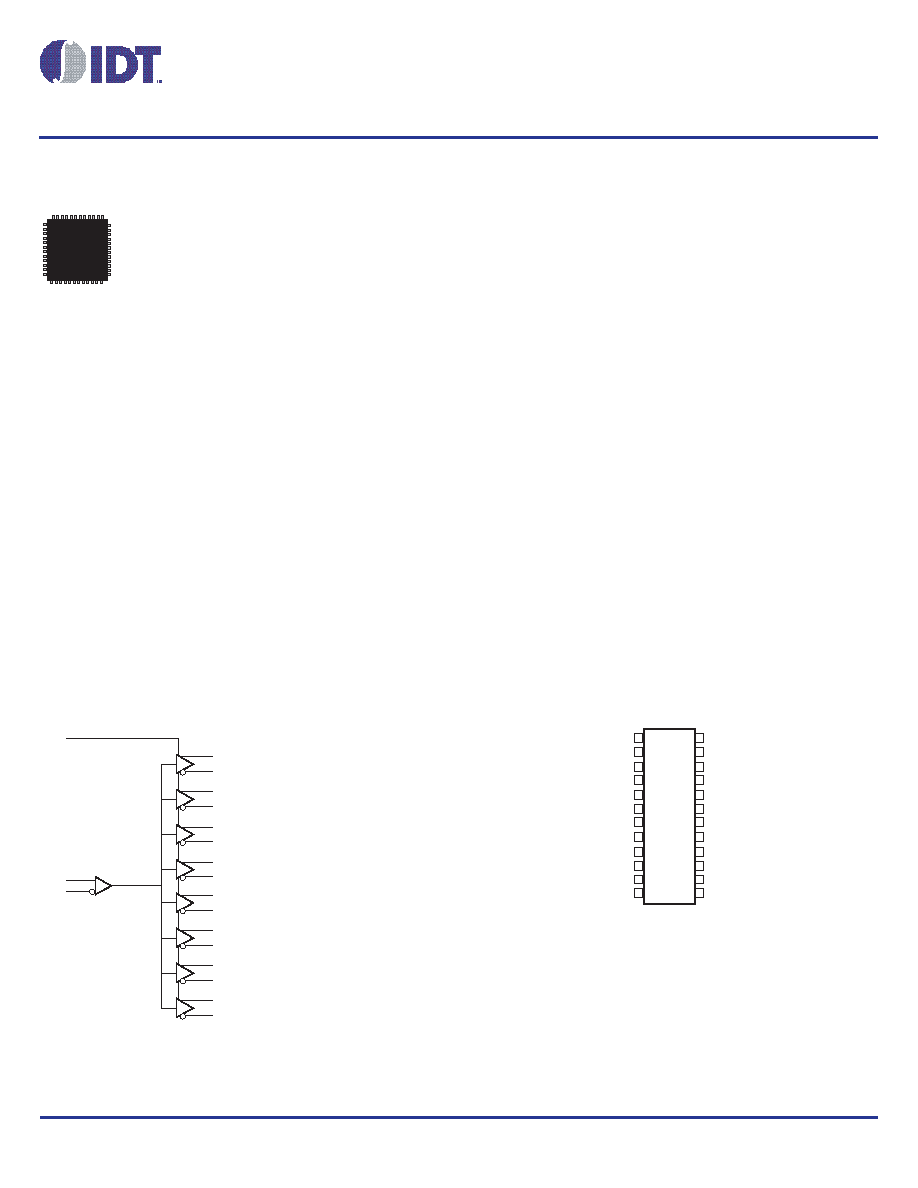

DATASHEET
ICS85408BGI REVISION B JULY 2, 2009
1
2009 Integrated Device Technology, Inc.
Low Skew, 1-to-8,
Differential-to-LVDS Clock
ICS85408I
General Description
The ICS85408I is a low skew, high performance 1-to-8
Differential-to-LVDS Clock Distribution Chip and a
member of the HiPerClockS family of High
Performance Clock Solutions from IDT. The ICS85408I
CLK, nCLK pair can accept most differential input
levels and translates them to 3.3V LVDS output levels. Utilizing Low
Voltage Differential Signaling (LVDS), the ICS85408I provides a low
power, low noise, low skew, point-to-point solution for distributing
LVDS clock signals.
Guaranteed output and part-to-part skew specifications make the
ICS85408I ideal for those applications demanding well defined
performance and repeatability.
Features
Eight differential LVDS output pairs
One differential clock input pair
CLK/nCLK can accept the following differential input levels:
LVPECL, LVDS, LVHSTL, HCSL, SSTL
Maximum output frequency: 700MHz
Translates any differential input signal (LVPECL, LVHSTL, SSTL,
HCSL) to LVDS levels without external bias networks
Translates any single-ended input signal to LVDS with resistor
bias on nCLK input
Multiple output enable inputs for disabling unused outputs
in reduced fanout applications
Additive phase jitter, RMS: 167fs (typical)
Output skew: 50ps (maximum)
Part-to-part skew: 550ps (maximum)
Propagation delay: 2.4ns (maximum)
3.3V operating supply
-40°C to 85°C ambient operating temperature
Available in both standard (RoHS 5) and lead-free (RoHS 6)
packages
HiPerClockS
ICS
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
nQ6
Q6
nQ5
Q5
nQ4
Q4
nQ3
Q3
nQ2
Q2
nQ1
Q1
Q7
nQ7
GND
OE
VDD
GND
VDD
CLK
nCLK
Q0
nQ0
CLK
nCLK
OE
Q0
nQ0
Q1
nQ1
Q2
nQ2
Q3
nQ3
Q4
nQ4
Q5
nQ5
Q6
nQ6
Q7
nQ7
Pin Assignment
ICS85408I
24-Lead TSSOP
4.4mm x 7.8mm x 0.925mm package body
G Package
Top View
Block Diagram
