M-40
MX01
Memory
Card
Systems
M
FEATURES AND SPECIFICATIONS
1.27mm (.050") Pitch
PC Card Receptacle
89074
Straddle Mount, Standard and
Offset Tail Versions
Features and Benets
s
Compatible with PCMCIA and JEIDA standards
s
Dual beam contact design
s
Various offset tails
Reference Information
Packaging: Tube
Mates With: PC card headers
Designed In: Millimeters
Electrical
Voltage: 100V
Current: 0.5A
Contact Resistance: 40m
max.
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 1000 M
min.
Mechanical
Contact Retention to Housing: 4.9N min.
Mating Force: 39.2N max.
Unmating Force: 6.67N min.
Durability: 10,000 cycles
Physical
Housing: Black glass-lled LCP, UL 94V-0
Contact: Beryllium Copper Alloy
Plating: Gold over Palladium Nickel on contact area, Tin/Lead
on solder tails, Nickel underplate overall
Operating Temperature: -20 to +90C

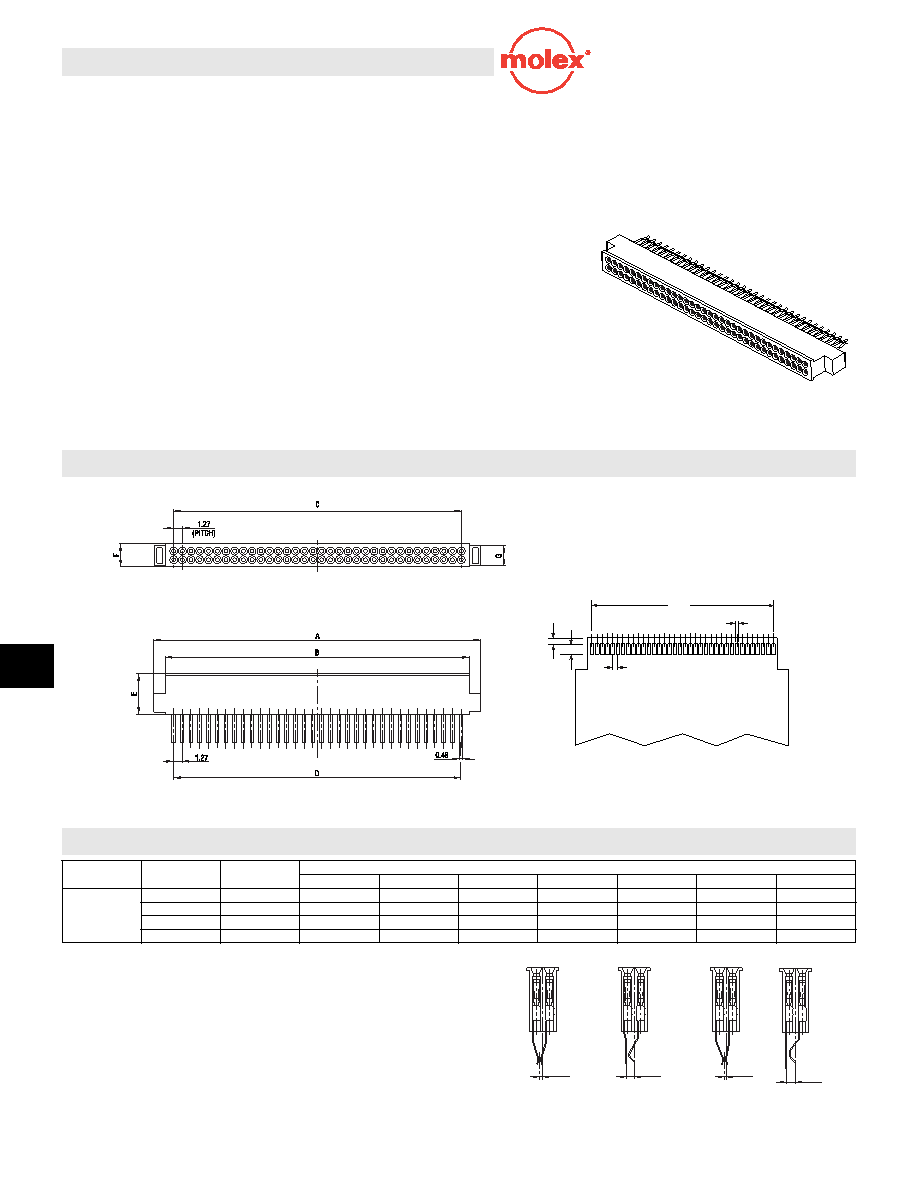

CATALOG DRAWING (FOR REFERENCE ONLY)
1.50
41.91
0.88 (34X)
1.27 (Pitch)
RECOMMENDED P.C.B. LAYOUT
2.50
ORDERING INFORMATION AND DIMENSIONS
Circuits
Order No.
Offset Style
Dimension
A
B
C
D
E
F
G
68
89074-6801
1
47.46 (1.869)
44.46 (1.750)
41.91 (1.650)
6.60 (.260)
3.30 (.130)
2.70 (.106)
89074-6821
2
47.46 (1.869)
44.46 (1.750)
41.91 (1.650)
6.60 (.260)
3.30 (.130)
2.70 (.106)
89074-6831
3
47.46 (1.869)
44.46 (1.750)
41.91 (1.650)
6.60 (.260)
3.30 (.130)
2.70 (.106)
89074-6851
5
47.46 (1.869)
44.46 (1.750)
41.91 (1.650)
6.60 (.260)
3.30 (.130)
2.70 (.106)
OFFSET STYLE 1.
OFFSET STYLE 2.
0.45
OFFSET STYLE 5.
0.20
0.81
0.95
OFFSET STYLE 3.
0.80
0.45
0.20
0.95
