參數資料
| 型號： | 9-1393792-1 |
| 元件分類： | 射頻繼電器 |
| 英文描述： | RF RELAY, DPDT, MOMENTARY, 0.017A (COIL), 9VDC (COIL), 150mW (COIL), 3A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 7/12頁 |
| 文件大?。?/td> | 1892K |
| 代理商： | 9-1393792-1 |
108-98007 Rev A
All specifications subject to change. Consult Tyco Electronics for latest specifications.
4 of 12
Telecom-, Signal and RF Relays
D2n V23105 Relay
AXICOM

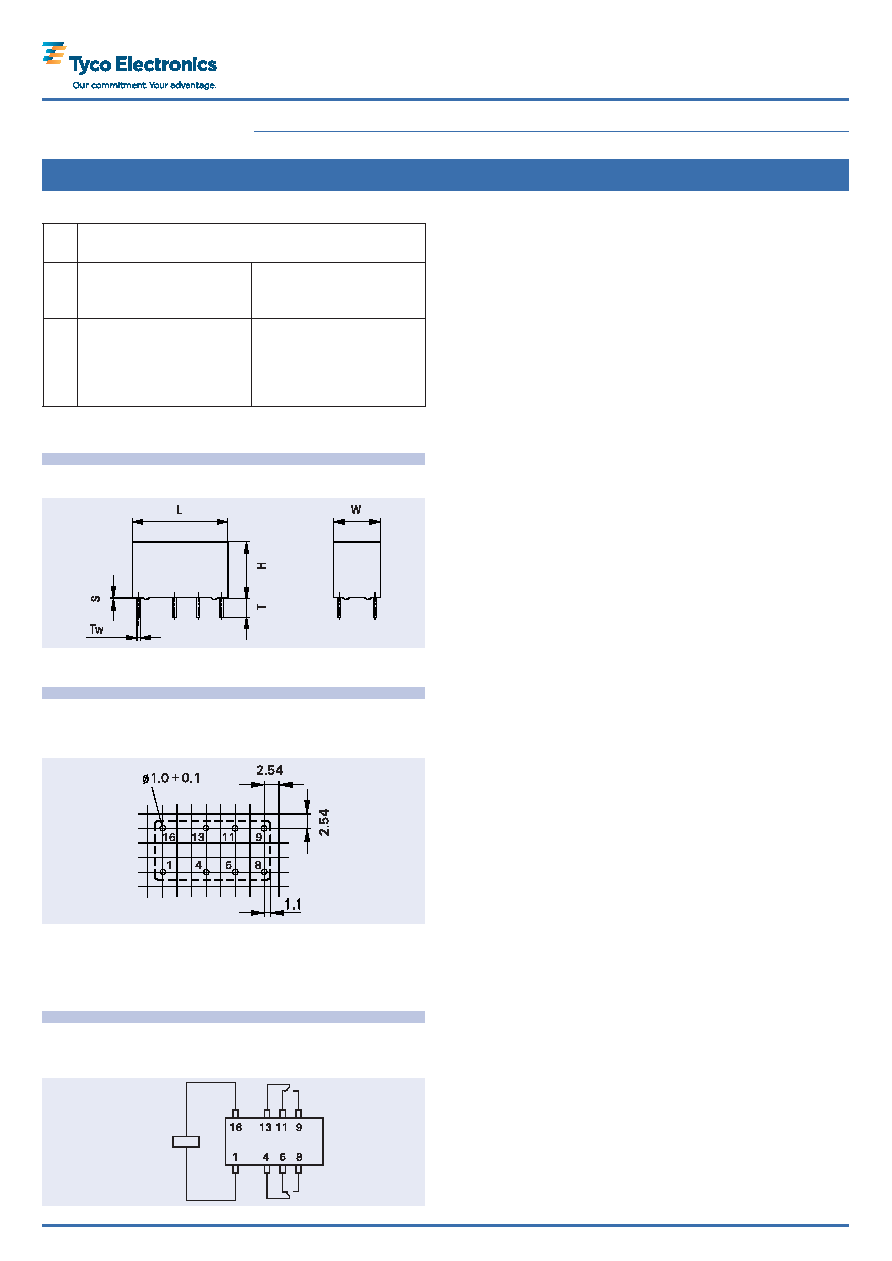

Dimensions
Dimensions in mm
THT
mm
inch
L
W
H
20.2 + 0.05/-0.02
10 + 0.05/-0.02
11 + 0.1/-0.2
0.795 + 0.002/-0.0008
0.393 + 0.002/-0.0008
0.433 + 0.004/-0.008
T
T1
T2
S
Tw
3.1 ± 0.3
N / A
7.62 ± 0.15
0.55
0.5
0.122 ± 0.011
N / A
0.3 ± 0.005
0.021
0.020
THT Version
Mounting hole layout
View onto the component side of the PCB (top view)
Terminal assignment
Relay – top view
Basic grid 2.54 mm
