108-98007 Rev A
All specifications subject to change. Consult Tyco Electronics for latest specifications.
8 of 12
Telecom-, Signal and RF Relays
D2n V23105 Relay
AXICOM
Contact Data
Number of contacts and type
2 changeover contacts
Contact assembly
single contacts
Contact material
Silver-nickel, gold-covered
Limiting continuous current at max. ambient temperature
3 A
Maximum switching current
3 A
Maximum swichting voltage
220 Vdc
250 Vac
Maximum switching capacity
60 W, 125 VA
Thermoelectric potential
< 10 V
Minimum switching voltage
100 V
Initial contact resistance / measuring condition: 10 mA / 20 mV
< 100 mΩ
Electrical endurance
at 230 Vac / 0.5 A
at 6 Vdc / 0.1 A
at 30 Vdc / 1 A
at 30 Vdc / 2 A
typ. 3.0 x 105 operations
typ. 2.0 x 106 operations
typ. 5.0 x 105 operations
typ. 1.0 x 105 operations
Mechanical endurance
typ. 15.0 x 106 operations
UL contact ratings
30 Vdc / 1.0 A
100 Vdc / 0.3 A
125 Vac / 0.5 A for 150 mW and 200 mW coil
125 Vac / 1.0 A for 400 mW and 500 mW coil

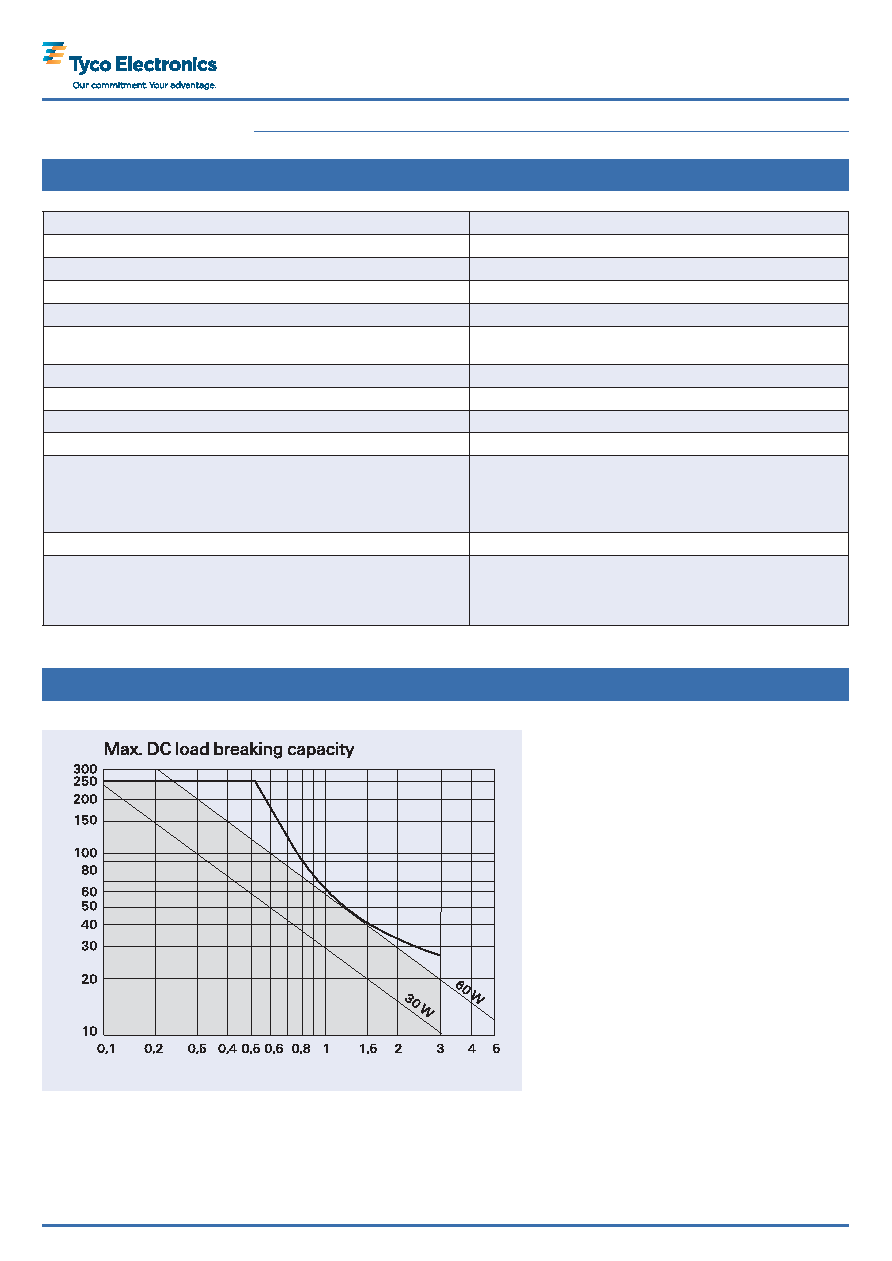

Max. DC Load Breaking Capacity
DC
Voltage
[Vdc]
DC current [A]
