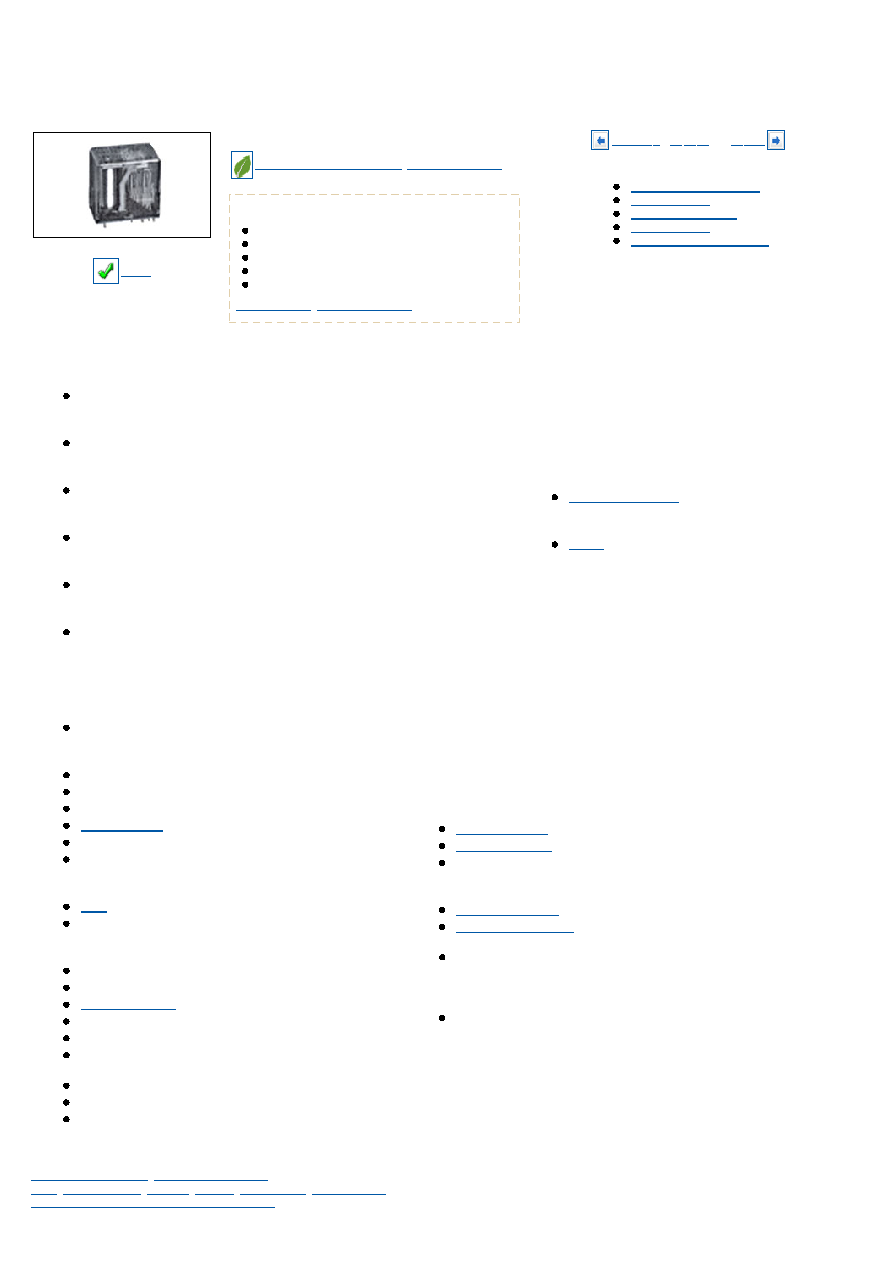

9-1393808-6 Product Details
9-1393808-6
Active
C om m u n ication s / S ign al PC Board Re lays
Converted to EU RoHS/ELV Compliant
(Statement of Compliance)
Product Highlights:
V23154/Cradle Relay N Series
DC Actuating System
Input Voltage = 24 VDC
Contact Arrangement = 6 Form A, 6PST-NO, 6 N/O
Contact Current Rating = 2 Amps.
View all Features | Find Similar Products
Previous 1 ... 16 17 18 [19] 20 Next
Quick Links
Check Pricing & Availability
Search for Tooling
Product Feature Selector
Compare Products
Contact Us About This Product
Documentation & Additional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Related Products:
Tooling
Product Features
(Ple ase u se th e Produ ct Drawin g for all de sign activity)
Product Type Features:
Termination Type = Solder/Plug-In Terminals
Electrical Characteristics:
Actuating System = DC
Input Voltage (VDC) = 24
Contact Current Rating (Amps.) = 2
Coil Resistance (?) = 890
Coil Power, Nominal (mW) = 650
Dielectric Between Coil and Contacts (V rms) = 500
Body Related Features:
Series = V23154/Cradle Relay N
Polarized = No
Contact Related Features:
Mounting Options = Socket
Enclosure = Dust Protected
FCC Part 68 Isolation = No
Approved Standards = None
Contact Material = Silver, Gold Overlay
Approx. Dimensions (L x W x H) (mm [in]) = 30.00 x 19.00 x 30.00 [1.181
x .748 x 1.181]
Compatible Socket = With
Contact Type = Bifurcated
Pin Configuration = Industry Standard
Configuration Related Features:
Contact Arrangement = 6 Form A, 6PST-NO, 6 N/O
Coil Magnetic System = Non Polarized, Monostable
Coil Suppression Diode = Without
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Wave solder capable to 240C, Wave solder
capable to 260C, Wave solder capable to 265C
RoHS/ELV Compliance History = Converted to comply with RoHS
directive
Other:
Brand = Axicom
