DECIBEL PRODUCTS
A Division of Allen Telecom Inc.
8635 Stemmons Freeway P. O. Box 569610 Dallas, Texas 75356-9610
214 / 631-0310 Fax: 214 / 631-4706
Model Number
932DD65T6N-M
932DD65T6E-M
Terminations
Type N-Female
7-16 DIN ("E")
Frequency Range
1850 - 1990 MHz
Gain
15.5 dBd (17.6 dBi)
in the polarization plane
Electrical Downtilt
6°
Null Fill
First lower null is less than 18 dB down
from max. First upper side lobe
suppressed.
VSWR
1.4 : 1
Beamwidth
(3dB from max)
Horizontal:
Vertical:
65°
5.5°
Polarization
+45° and -45°, independently
Front-to-Back Ratio
> 25 dB
Isolation
> 28 dB
> 25 dB
downlink
uplink
Max. Input Power
250 Watts
Application
PCS; Each array is broadband permitting
the use of the antenna as Rx1 and Rx2 or
as Rx1, and Tx/Rx2 duplexed.
Weight
17 lb (7.7 kg)
Wind Area
3.1 ft (0.29 m)
Wind Load
124 lbf (552N) 55.7 kp (at 100 mph)
Max. Wind Speed
165 mph (266 km/h)
Material
Reflector:
Radiators:
Radome:
Mounting Hdw:
Pass. Aluminum
PCB
PVC, UV Resistant
Galvanized Steel
Color, Radome
Light Gray
Mounting
DB390 pipe mount kit, included.
Downtilt Bracket
(Optional)
DB5098
Weather Protection
Fully protected by backplate and radome.
Lightning Protection
All metal parts grounded.
Packing Size
77" x 10" x 6" (196 x 25 x 15 cm)
Shipping Weight
25 lbs (11.3 kg)
PCS Diversity Master, Dual Slant (+45°/-45°) Polarized, High Gain
6° Electrical Downtilt Panel Antenna with 65° Horizontal 3 dB Coverage, 1850-1990 MHz
Specifications are for reference only.
099125-010-PRE 8/99-B

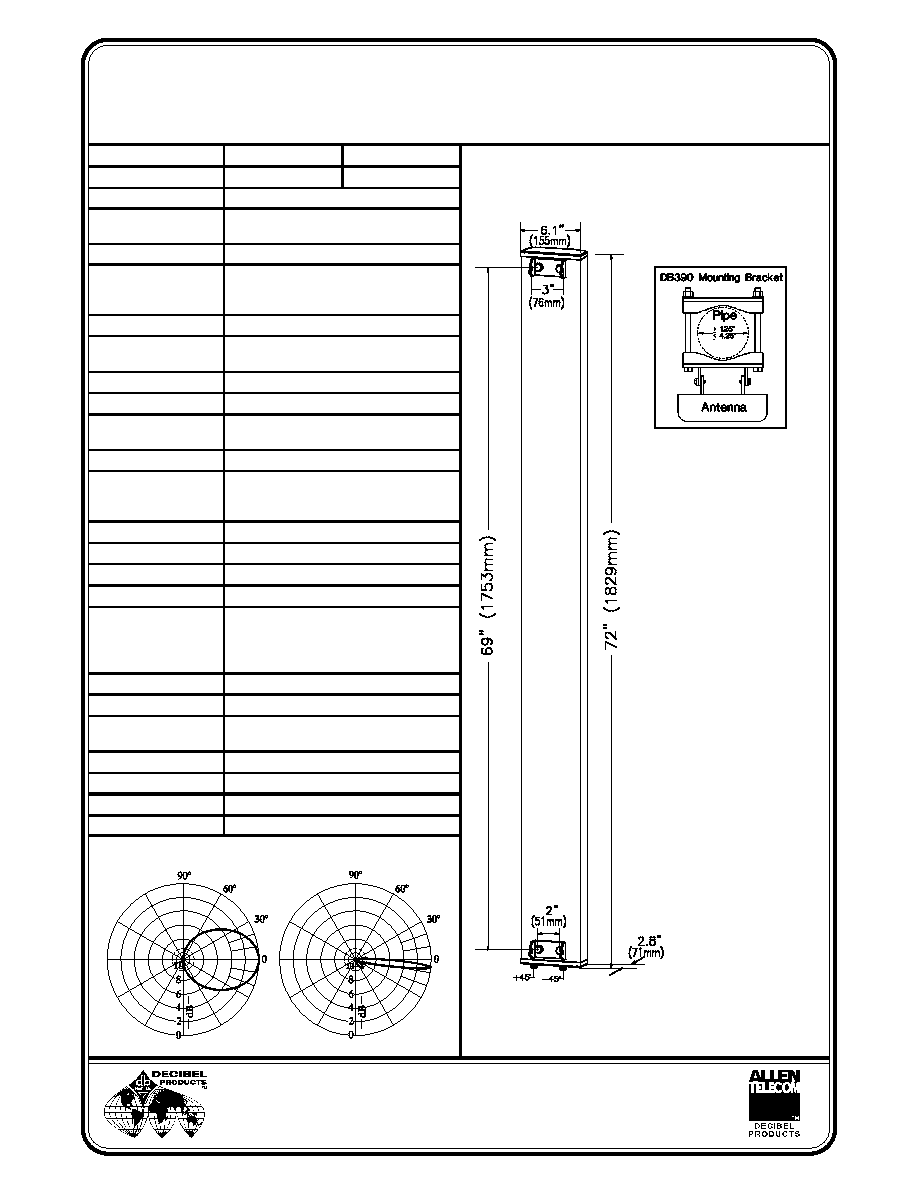

932DD65T6(N or E)-M
Vertical
Horizontal
PRELIMINARY
(applicable to each polarization plane)
Antenna Patterns
15.5 dBd (17.6 dBi) in
the polarization plane,
directional panel antenna
with 65° horizontal 3 dB
beamwidth for each of the
two vertical arrays housed
in one radome. One array
has a +45°, the other a
-45° polarization plane.
