1999 May 26
2
Philips Semiconductors
Product specication
Schottky barrier diode
BAT17
FEATURES
Low forward voltage
Small SMD package
Low capacitance.
APPLICATIONS
UHF mixer
Sampling circuits
Modulators
Phase detection.
DESCRIPTION
Planar Schottky barrier diode in a small SOT23 plastic SMD package.
PINNING
PIN
DESCRIPTION
1
anode
2
not connected
3
cathode

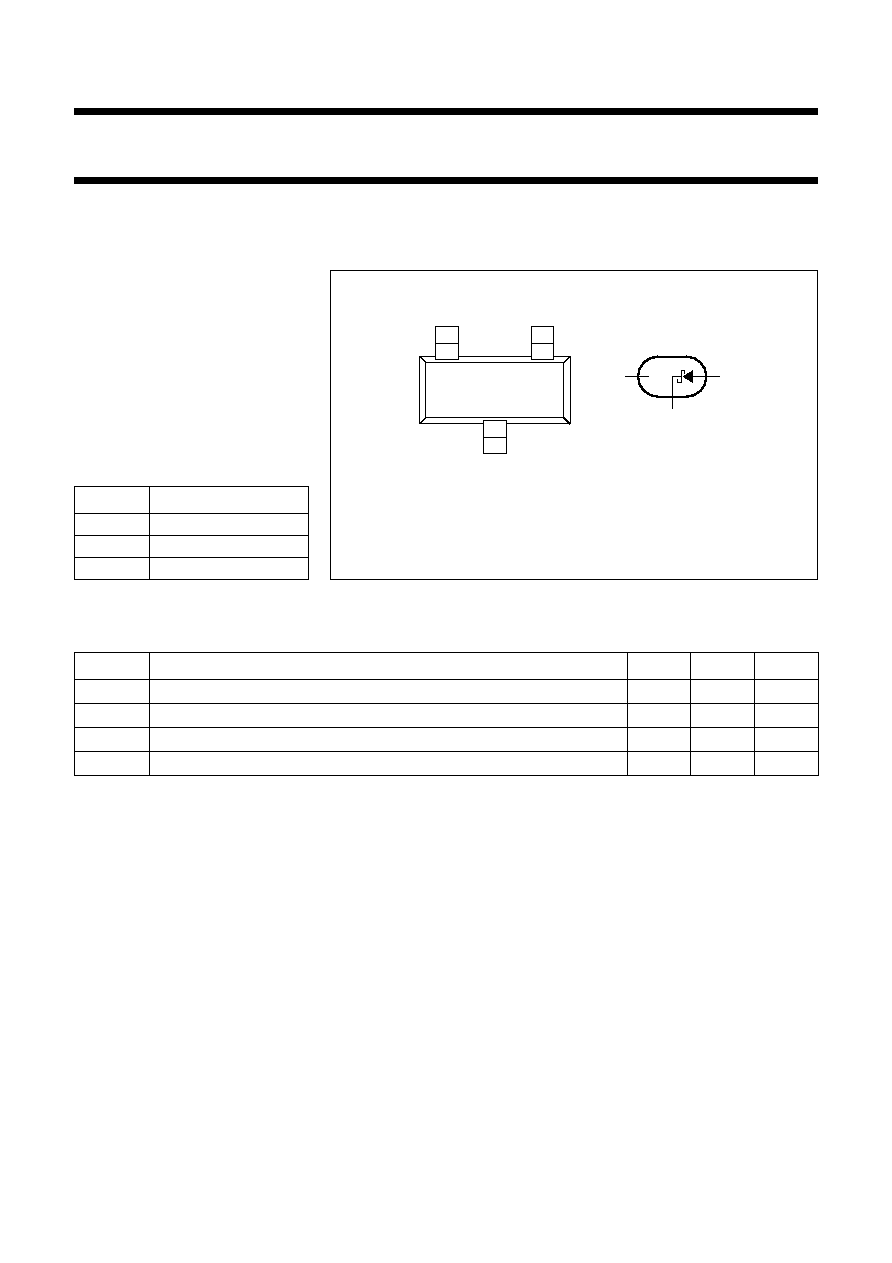

Fig.1 Simplified outline (SOT23) and symbol.
handbook, halfpage
21
3
MAM171
2
n.c.
1
3
Marking code: A3p = made in Hong Kong; A3t = made in Malaysia
.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
PARAMETER
MIN.
MAX.
UNIT
VR
continuous reverse voltage
4V
IF
continuous forward current
30
mA
Tstg
storage temperature
65
+150
°C
Tj
junction temperature
100
°C
