1998 Nov 25
2
Philips Semiconductors
Product specication
VHF variable capacitance double diode
BB804
FEATURES
Selected capacitance range
Small plastic SMD package
C8: 26 pF; ratio: 1.7
Low series resistance.
APPLICATIONS
Electronic tuning in FM radio
applications.
DESCRIPTION
The BB804 is a variable capacitance
double diode with a common cathode,
fabricated in planar technology, and
encapsulated in the SOT23 small
plastic SMD package.
MARKING
TYPE NUMBER
CODE
BB804
SF5
BB804W
SF2
PINNING
PIN
DESCRIPTION
1
anode (a1)
2
anode (a2)
3
common cathode

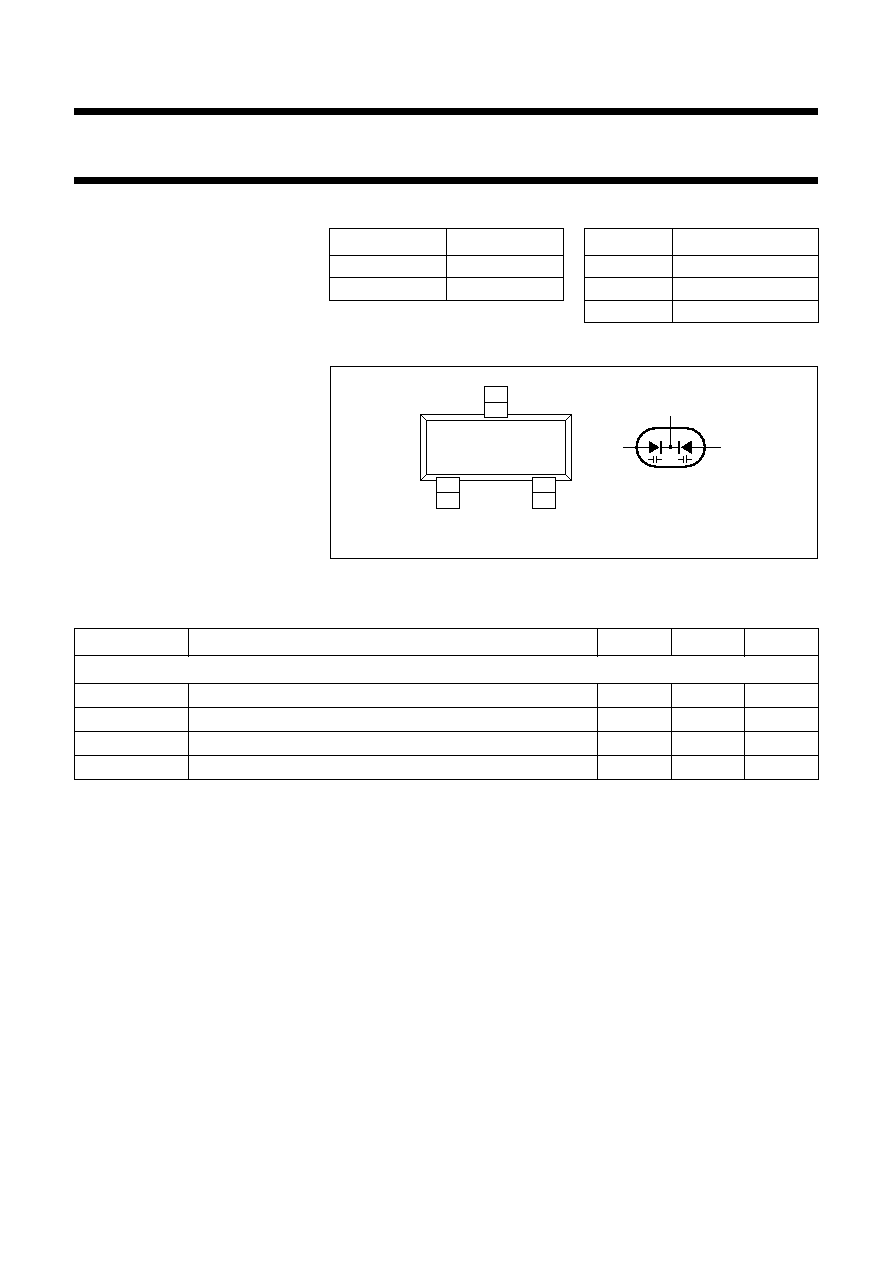

Fig.1 Simplified outline (SOT23) and symbol.
handbook, halfpage
2
1
3
MAM169
2
1
3
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
PARAMETER
MIN.
MAX.
UNIT
Per diode
VR
continuous reverse voltage
18
V
IF
continuous forward current
50
mA
Tstg
storage temperature
55
+150
°C
Tj
operating junction temperature
55
+125
°C
