Philips Semiconductors
Product specification
SA614A
Low power FM IF system
1997 Nov 07
3

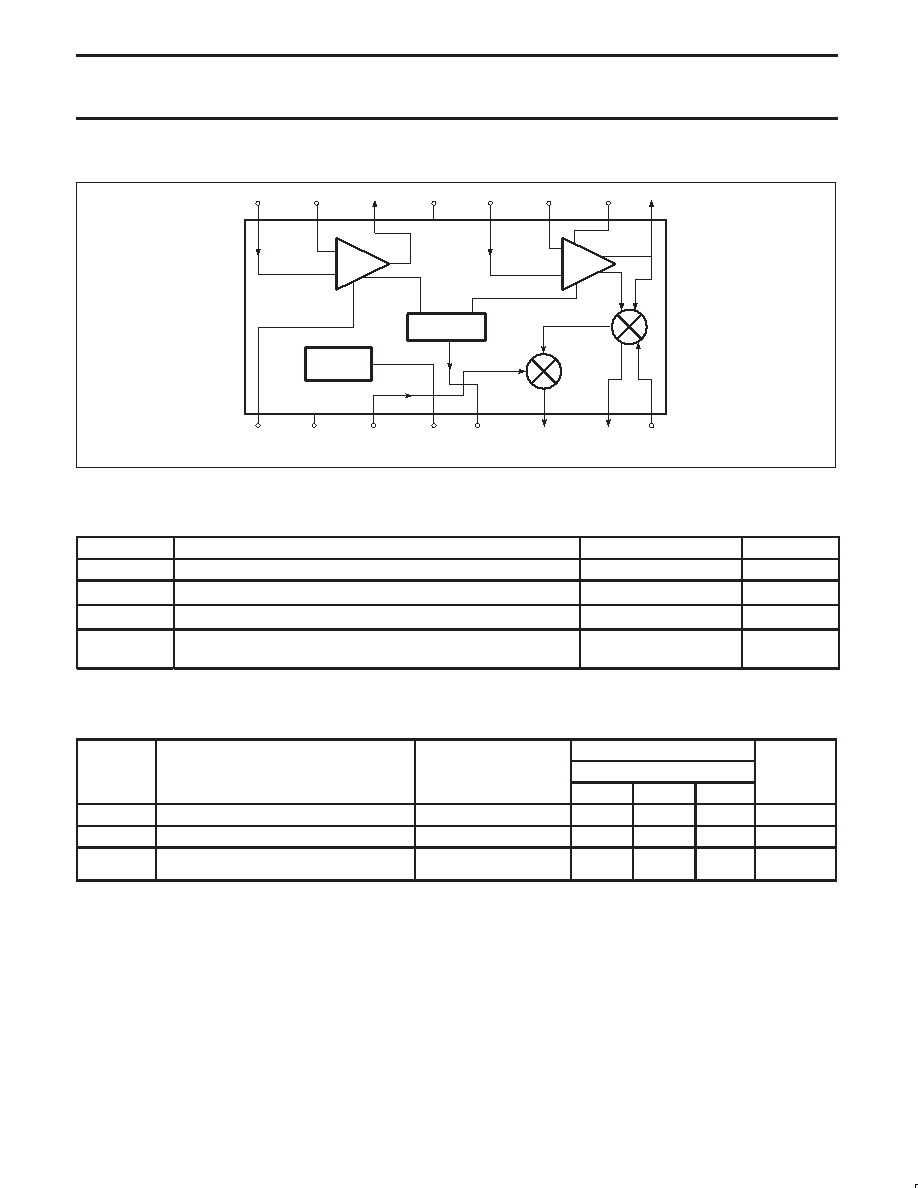

BLOCK DIAGRAM
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SIGNAL
VOLTAGE
IF
AMP
LIMITER
REGULATOR
STRENGTH
GND
VCC
GND
MUTE
QUAD
DET
LIMITER
SR00324
Figure 2. Block Diagram
ABSOLUTE MAXIMUM RATINGS
SYMBOL
PARAMETER
RATING
UNITS
VCC
Single supply voltage
9
V
TSTG
Storage temperature range
-65 to +150
°C
TA
Operating ambient temperature range SA614A
-40 to +85
°C
θJA
Thermal impedance
D package
N package
90
75
°C/W
DC ELECTRICAL CHARACTERISTICS
VCC = +6V, TA = 25°C; unless otherwise stated.
LIMITS
SYMBOL
PARAMETER
TEST CONDITIONS
SA614A
UNITS
MIN
TYP
MAX
VCC
Power supply voltage range
4.5
8.0
V
ICC
DC current drain
2.5
3.3
4.0
mA
Mute switch input threshold
(ON)
(OFF)
1.7
1.0
V
