1996 Jun 07
2
Philips Semiconductors
Product specication
Fast soft-recovery
controlled avalanche rectiers
BYW95 series
FEATURES
Glass passivated
High maximum operating
temperature
Low leakage current
Excellent stability
Guaranteed avalanche energy
absorption capability
Available in ammo-pack
Also available with preformed leads
for easy insertion.
DESCRIPTION
Rugged glass SOD64 package,
using a high temperature alloyed
construction. This package is
hermetically sealed and fatigue free
as coefficients of expansion of all
used parts are matched.
Fig.1 Simplified outline (SOD64) and symbol.

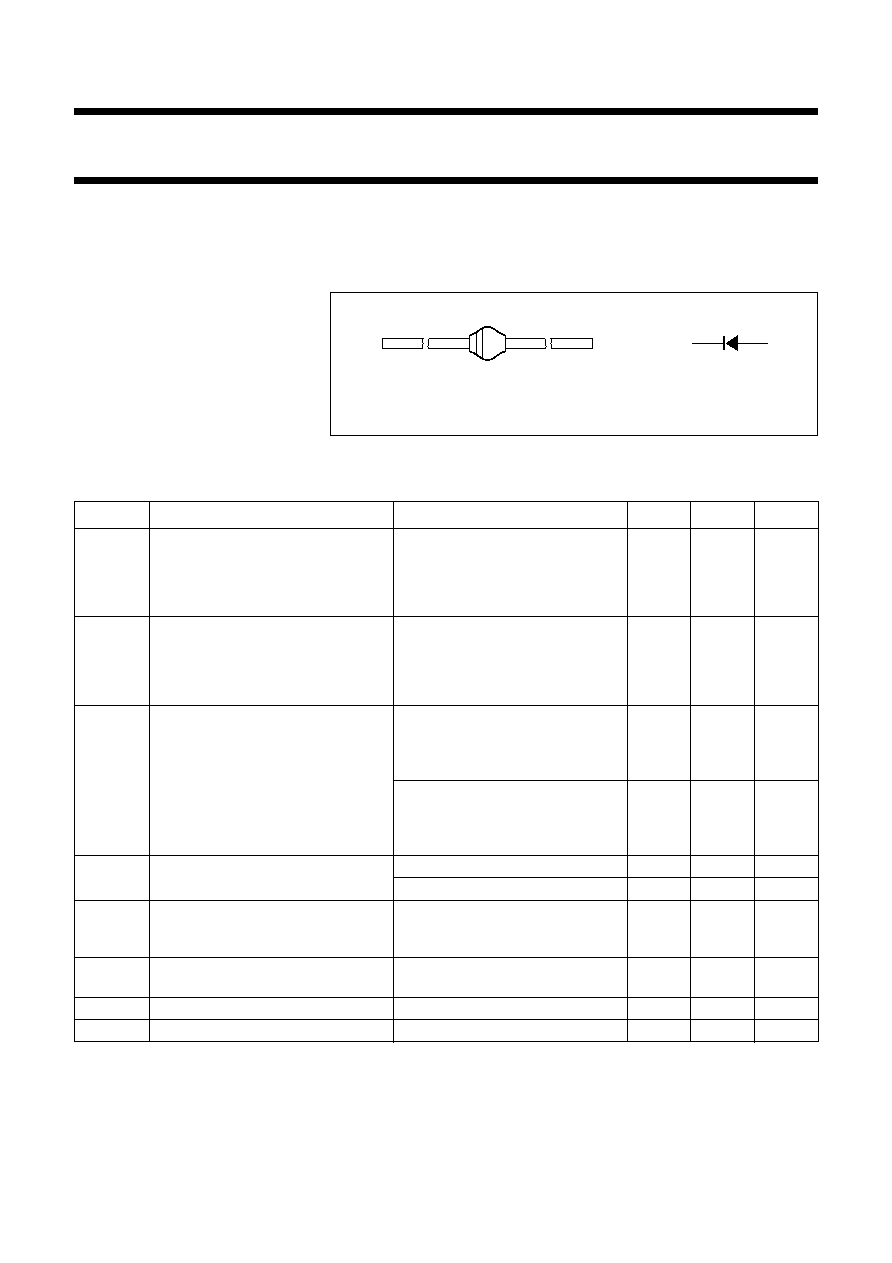

2/3 page (Datasheet)
MAM104
ka
,
,
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VRRM
repetitive peak reverse voltage
BYW95A
200
V
BYW95B
400
V
BYW95C
600
V
VR
continuous reverse voltage
BYW95A
200
V
BYW95B
400
V
BYW95C
600
V
IF(AV)
average forward current
Ttp =60 °C; lead length = 10 mm
see Fig.2;
averaged over any 20 ms period;
see also Fig.6
3.00
A
Tamb =65 °C; PCB mounting (see
Fig.11); see Fig.3;
averaged over any 20 ms period;
see also Fig.6
1.25
A
IFRM
repetitive peak forward current
Ttp =60 °C; see Fig.4
30
A
Tamb =65 °C; see Fig.5
13
A
IFSM
non-repetitive peak forward current
t = 10 ms half sine wave;
Tj =Tj max prior to surge;
VR =VRRMmax
70
A
ERSM
non-repetitive peak reverse
avalanche energy
L = 120 mH; Tj =Tj max prior to
surge; inductive load switched off
10
mJ
Tstg
storage temperature
65
+175
°C
Tj
junction temperature
see Fig.7
65
+175
°C
