1998 Sep 15
2
Philips Semiconductors
Product specication
UHF variable capacitance diode
BB134
FEATURES
Excellent linearity
Excellent matching to 0.5% DMA
Very small plastic SMD package
C28: 1.9 pF; ratio: 10
Low series resistance.
APPLICATIONS
Electronic tuning in UHF television
tuners
VCO.
DESCRIPTION
The BB134 is a variable capacitance
diode, fabricated in planar
technology, and encapsulated in the
SOD323 very small plastic SMD
package.
The excellent matching performance
is achieved by a direct matching
assembly procedure. The unmatched
type, BB135 has the same
specification.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
PARAMETER
MIN.
MAX.
UNIT
VR
continuous reverse voltage
30
V
IF
continuous forward current
20
mA
Tstg
storage temperature
55
+150
°C
Tj
operating junction temperature
55
+125
°C

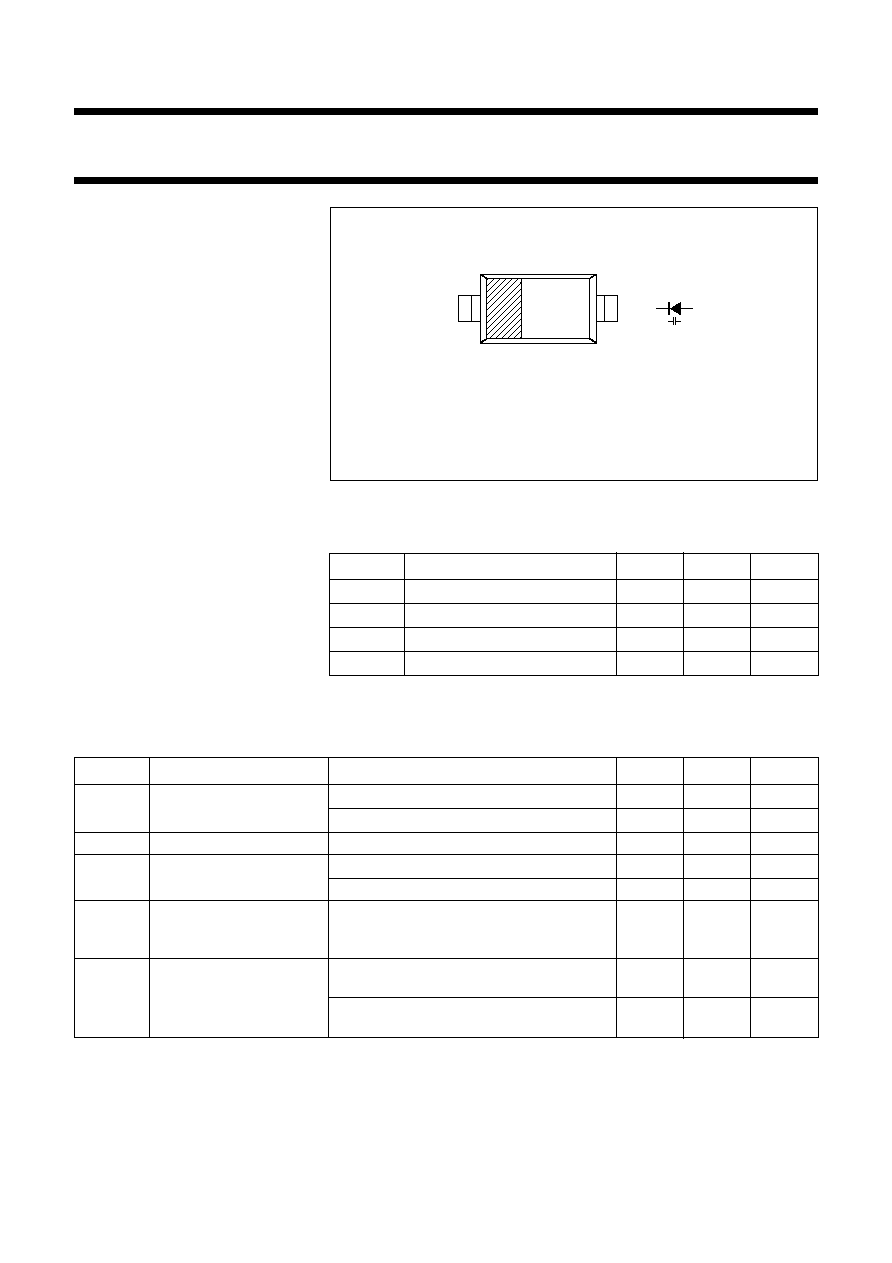

Fig.1 Simplified outline (SOD323) and symbol.
Marking code: P4.
Cathode side indicated by a bar.
handbook, 4 columns
ka
MAM130
ELECTRICAL CHARACTERISTICS
Tj =25 °C unless otherwise specied.
Note
1. VR is the value at which Cd = 9 pF.
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
IR
reverse current
VR = 30 V; see Fig.3
10
nA
VR =30V; Tj =85 °C; see Fig.3
200
nA
rs
diode series resistance
f = 470 MHz; note 1
0.75
Cd
diode capacitance
VR = 0.5 V; f = 1 MHz; see Figs 2 and 4
17.5
21
pF
VR = 28 V; f = 1 MHz; see Figs 2 and 4
1.7
2.1
pF
capacitance ratio
f = 1 MHz
8.9
12
capacitance matching
VR = 0.5 to 28 V; in a sequence of 4 diodes
(gliding)
0.5
%
VR = 0.5 to 28 V; in a sequence of 15 diodes
(gliding)
2%
C
d 0.5V
()
C
d28V
()
----------------------
C
d
C
d
----------
