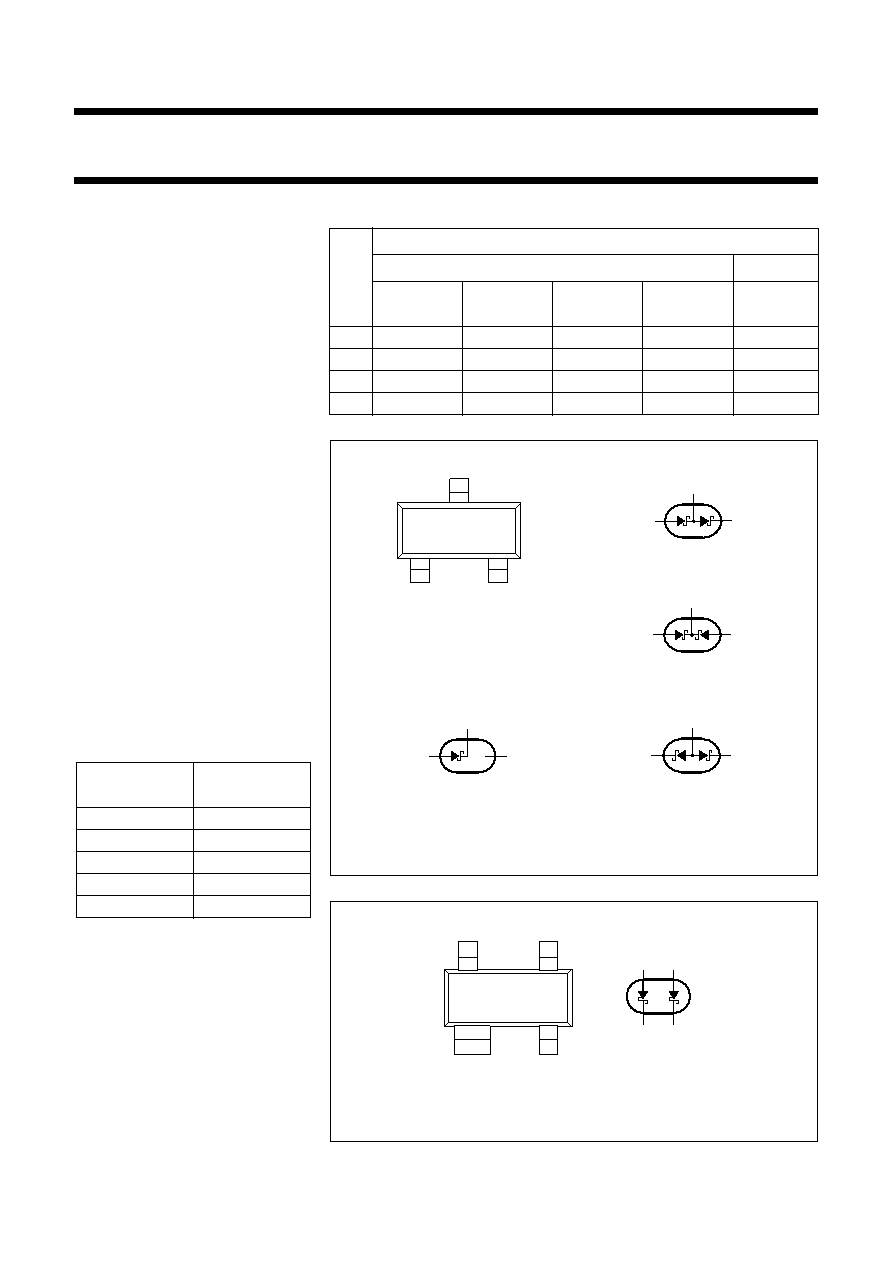

2001 Oct 11
2
Philips Semiconductors
Product specication
Schottky barrier (double) diodes
BAS70 series
FEATURES
Low forward current
High breakdown voltage
Guard ring protected
Small plastic SMD package
Low diode capacitance.
APPLICATIONS
Ultra high-speed switching
Voltage clamping
Protection circuits.
DESCRIPTION
Planar Schottky barrier diodes with an
integrated guard ring for stress
protection. Single diodes and double
diodes with different pinning are
available.
The diodes BAS70, BAS70-04,
BAS70-05 and BAS70-06 are
encapsulated in a SOT23 small
plastic SMD package. The BAS70-07
is encapsulated in a SOT143B small
plastic SMD package.
PINNING
PIN
DESCRIPTION
SOT23
SOT143B
BAS70
(see Fig.1b)
BAS70-04
(see Fig.1c)
BAS70-05
(see Fig.1d)
BAS70-06
(see Fig.1e)
BAS70-07
(see Fig.2)
1a1
a1
k1
2
n.c.
k2
a2
k2
3k1
k1,a2
k1,k2
a1,a2
a2
4
a1
Fig.1 Simplified outline (SOT23) and symbols.
d. BAS70-05.
e. BAS70-06.
b. BAS70 single diode.
a. Simplified outline SOT23.
c. BAS70-04
handbook, 2 columns
2
1
3
MGC482
Top view
handbook, 2 columns
1
3
2
n.c.
MGC483
handbook, 2 columns
MGC484
12
3
handbook, 2 columns
MGC485
12
3
handbook, 2 columns
MGC486
12
3
Fig.2 Simplified outline (SOT143B) BAS70-07 and symbol.
handbook, halfpage 43
2
1
Top view
MAM194
2
3
4
1
MARKING
Note
1.
= p: Made in Hong Kong.
= t: Made in Malaysia.
= W: Made in China.
TYPE NUMBER
MARKING
CODE(1)
BAS70
73
BAS70-04
74
BAS70-05
75
BAS70-06
76
BAS70-07
77
