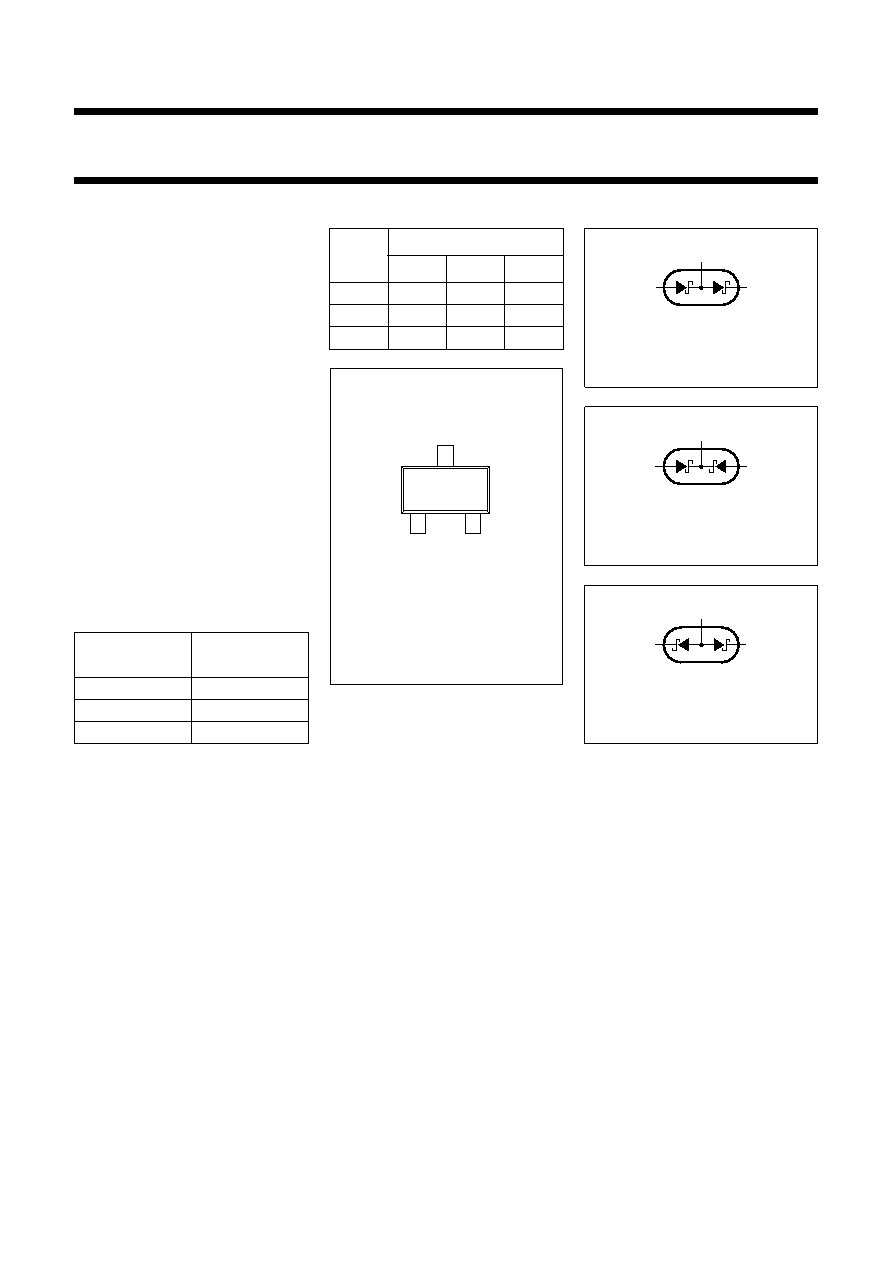

1998 Nov 10
2
Philips Semiconductors
Preliminary specication
Schottky barrier double diodes
1PS89SB14; 1PS89SB15;
1PS89SB16
FEATURES
Power dissipation comparable to
SOT23
Low forward voltage
Guard ring protected
Ultra small SMD package.
APPLICATIONS
Ultra high speed switching
Voltage clamping
Protection circuits
Blocking diodes.
DESCRIPTION
Planar Schottky barrier double diodes
encapsulated in an ultra small plastic
SMD SC-89 (SOT490) package.
PINNING
PIN
1PS89SB..
14
15
16
1a1
a1
k1
2k2
a2
k2
3k1,a2
k1,k2
a1,a2
Fig.1
Simplified outline
(SC-89; SOT490) and
pin configuration.
fpage
12
Top view
MBK837
3
Fig.2
1PS89SB14 diode
configuration (symbol).
3
12
MLC358
Fig.3
1PS89SB15 diode
configuration (symbol).
3
12
MLC359
Fig.4
1PS89SB16 diode
configuration (symbol).
3
12
MLC360
MARKING
TYPE NUMBER
MARKING
CODE
1PS89SB14
44
1PS89SB15
43
1PS89SB15
45
