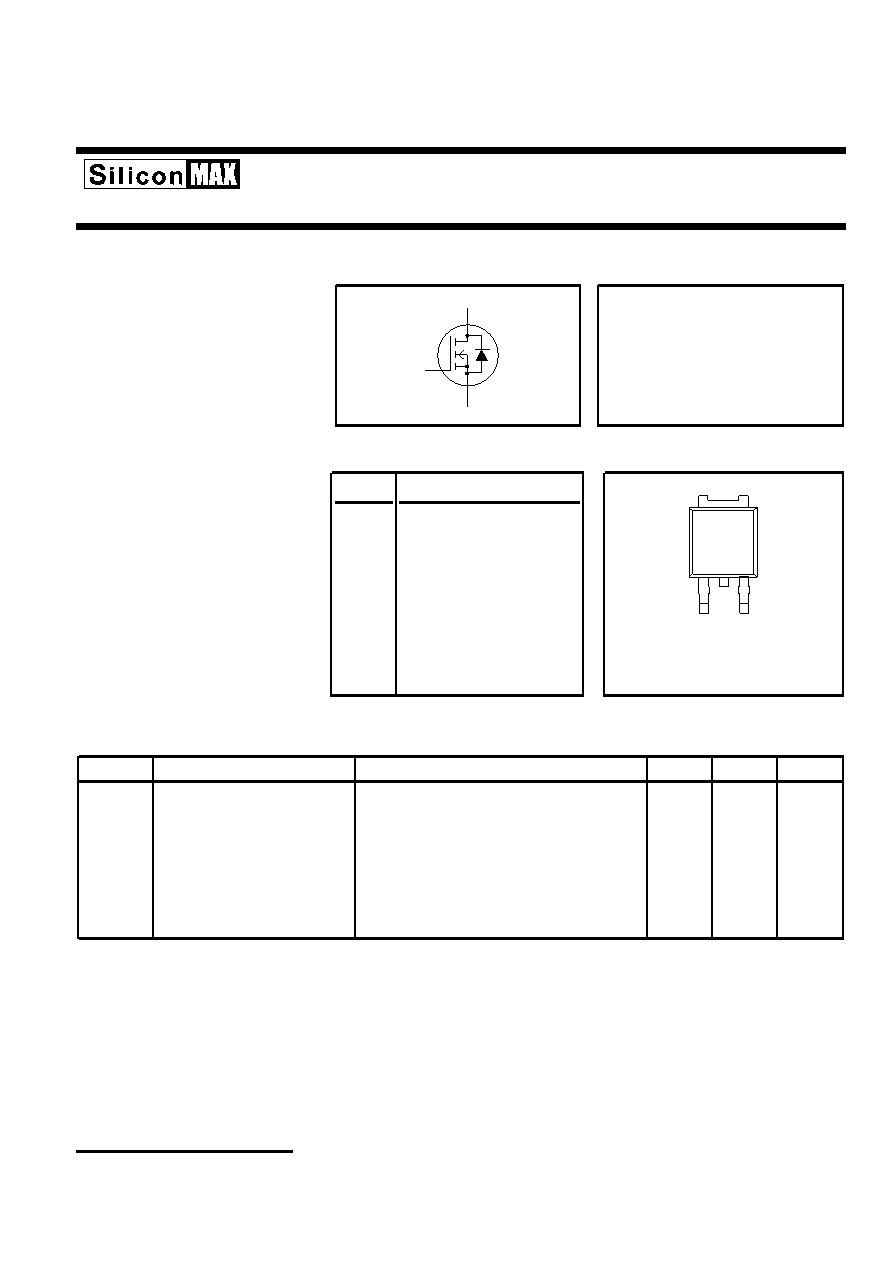

Philips Semiconductors
Product specification
N-channel TrenchMOS
transistor
PSMN063-150D
FEATURES
SYMBOL
QUICK REFERENCE DATA
’Trench’ technology
Very low on-state resistance
V
DSS = 150 V
Fast switching
Low thermal resistance
I
D = 29 A
R
DS(ON) ≤ 63 m
GENERAL DESCRIPTION
PINNING
SOT428 (Dpak)
SiliconMAX products use the latest
PIN
DESCRIPTION
Philips
Trench
technology
to
achieve
the
lowest
possible
1
gate
on-state
resistance
in
each
package at each voltage rating.
2
drain
1
Applications:-
3
source
d.c. to d.c. converters
switched mode power supplies
tab
drain
The PSMN063-150D is supplied in
the
SOT428
(Dpak)
surface
mounting package.
LIMITING VALUES
Limiting values in accordance with the Absolute Maximum System (IEC 134)
SYMBOL PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
V
DSS
Drain-source voltage
T
j = 25 C to 175C
-
150
V
DGR
Drain-gate voltage
T
j = 25 C to 175C; RGS = 20 k
-
150
V
GS
Gate-source voltage
-
± 20
V
I
D
Continuous drain current
T
mb =
25 C; V
GS = 10 V
-
29
A
T
mb = 100 C; VGS = 10 V
-
20
A
I
DM
Pulsed drain current
T
mb = 25 C
-
116
A
P
D
Total power dissipation
T
mb = 25 C
-
150
W
T
j, Tstg
Operating junction and
- 55
175
C
storage temperature
d
g
s
1
2
3
tab
1 It is not possible to make connection to pin 2 of the SOT428 package.
August 1999
1
Rev 1.000
