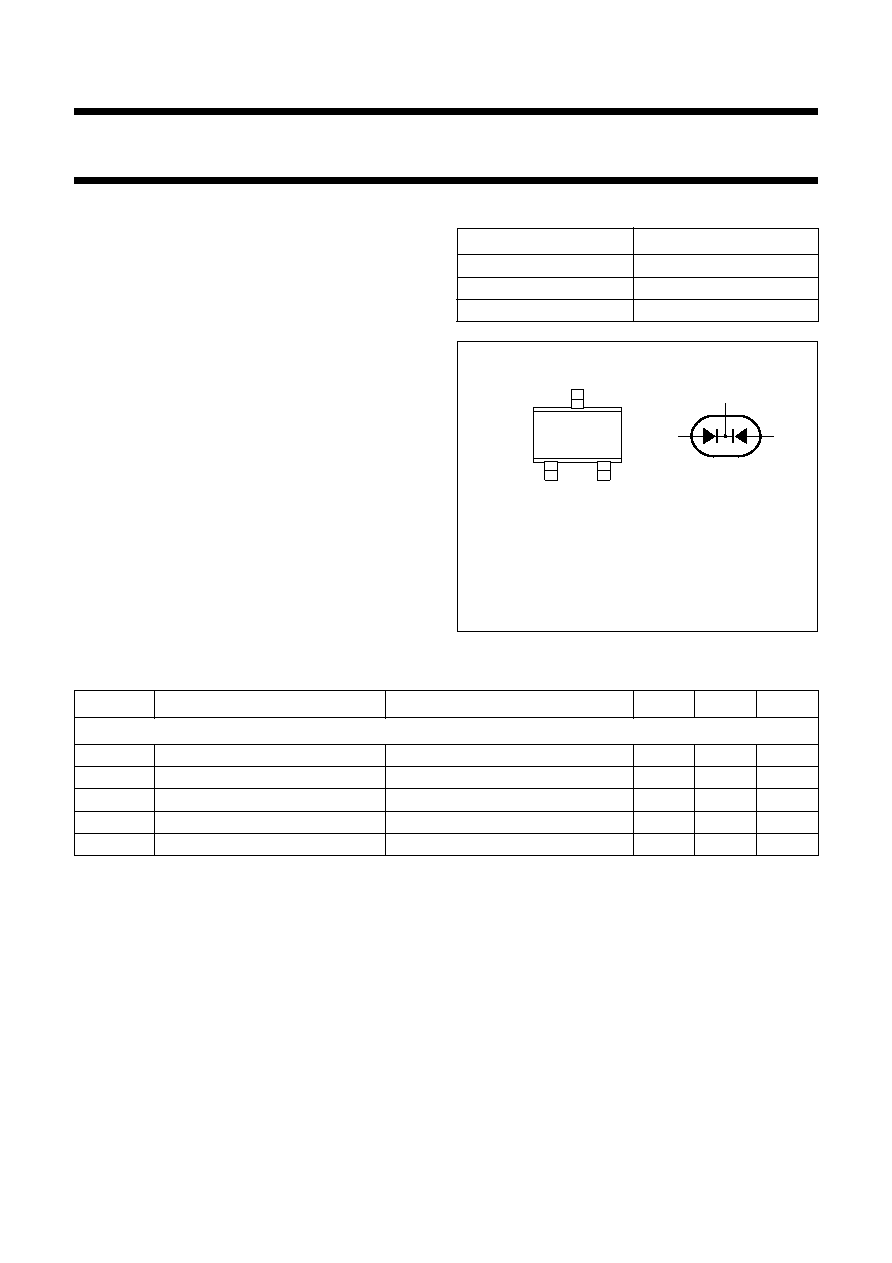

2000 Jul 13
2
Philips Semiconductors
Product specication
Silicon PIN diode
BAP64-05W
FEATURES
High voltage, current controlled
RF resistor for RF attenuators and switches
Low diode capacitance
Low diode forward resistance
Low series inductance
For applications up to 3 GHz.
APPLICATIONS
RF attenuators and switches.
GENERAL DESCRIPTION
Two planar PIN diodes in common cathode configuration
in a SOT323 small SMD plastic package.
PINNING
PIN
DESCRIPTION
1
anode (a1)
2
anode (a2)
3
common cathode
handbook, halfpage
3
2
1
Top view
MAM382
2
1
3
Marking code: 5W-
Fig.1 Simplified outline (SOT323) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
Per diode
VR
continuous reverse voltage
100
V
IF
continuous forward current
100
mA
Ptot
total power dissipation
Ts =90 °C
240
mW
Tstg
storage temperature
65
+150
°C
Tj
junction temperature
65
+150
°C
