1995 Sep 05
5
Philips Semiconductors
Preliminary specication
Multistandard VIF-PLL and
FM-PLL demodulator
TDA9806

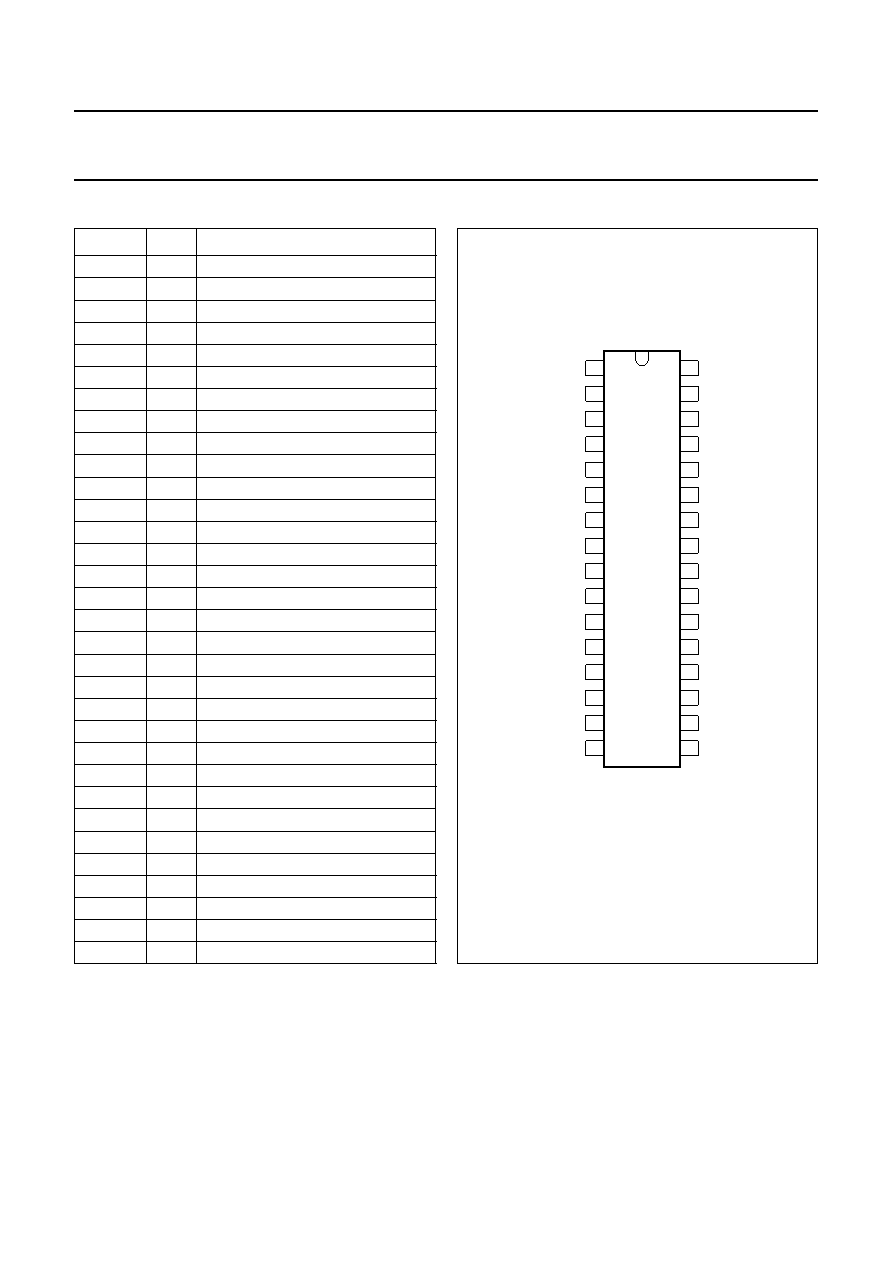

PINNING
SYMBOL
PIN
DESCRIPTION
Vi VIF1
1
VIF differential input signal voltage 1
Vi VIF2
2
VIF differential input signal voltage 2
n.c.
3
not connected
n.c.
4
not connected
n.c.
5
not connected
TADJ
6
tuner AGC takeover adjust (TOP)
TPLL
7
PLL loop lter
n.c.
8
not connected
n.c.
9
not connected
Vo CVBS
10
CVBS output signal voltage
n.c.
11
not connected
VoAF
12
audio voltage frequency output
DEEMI
13
de-emphasis input
DEEMO
14
de-emphasis output
CDEC
15
decoupling capacitor
n.c.
16
not connected
ViFM
17
sound intercarrier input voltage
n.c.
18
not connected
TAGC
19
tuner AGC output
Vo(int)
20
sound intercarrier output voltage
Vo(vid)
21
composite video output voltage
Vi(vid)
22
video buffer input voltage
AFC
23
AFC output
VCO1
24
VCO1 reference circuit for 2fPC
VCO2
25
VCO2 reference circuit for 2fPC
Cref
26
1
2VP reference capacitor
GND
27
ground
CVAGC
28
VIF AGC capacitor
VP
29
supply voltage
n.c.
30
not connected
n.c.
31
not connected
n.c.
32
not connected
Fig.2 Pin configuration.
handbook, halfpage
TDA9806
MHA053
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
V
TADJ
T
V
n.c.
V
C
GND
n.c.
C
VCO2
VCO1
AFC
V
TAGC
n.c.
o AF
DEEM I
DEEM O
C DEC
o CVBS
PLL
i VIF2
i VIF1
P
VAGC
ref
Vi FM
o(int)
o(vid)
i(vid)
