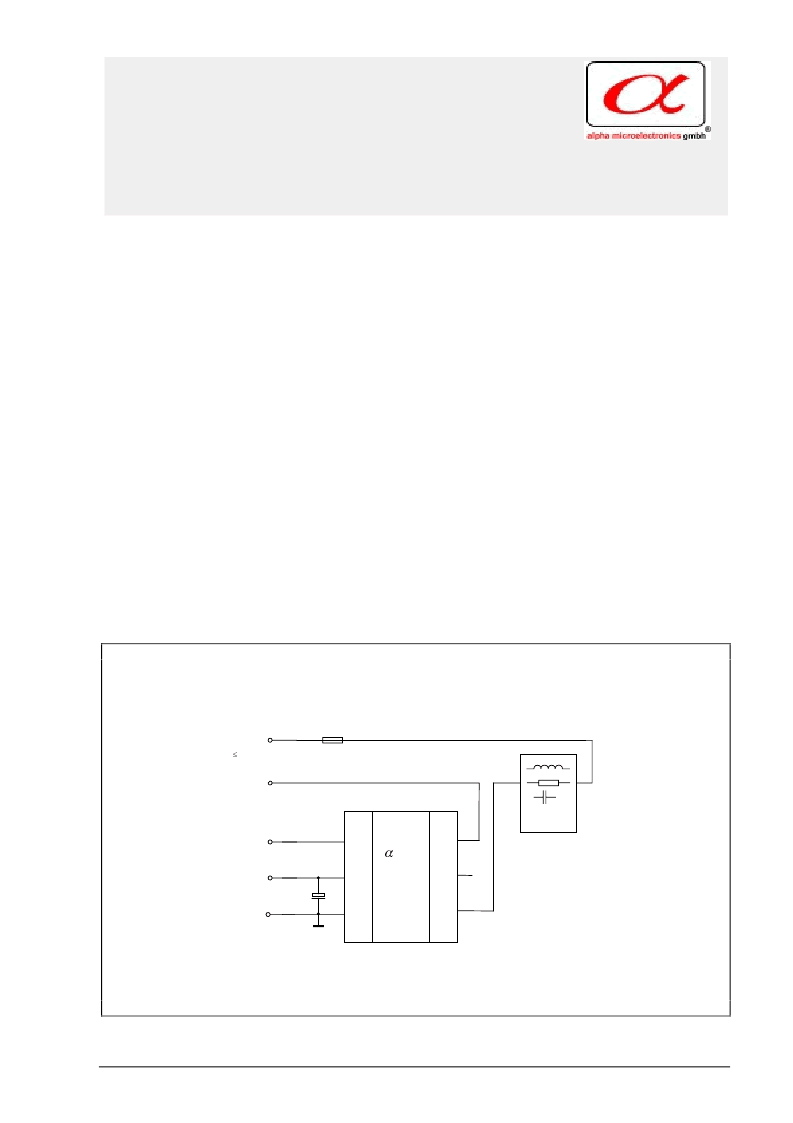

June 1999
alpha microelectronics gmbh
Description
The integrated circuit
ú
1510 is used to switch
arbitrary loads on AC lines.
These loads may be inductivities, capacities or
resistances.
The circuit has a CMOS/TTL input with schmitt
trigger character.
Integrated functions protect the circuit versus short
circuit and overtemperature.
Features
q
Small switch-ON-resistance < 15
W
q
Stand-by power dissipation < 0.02W
q
Minimum external components
q
ESD-protected input
q
Integrated short circuit and overtemperature
protection
q
Temperature range
q
Package SOP12LP
0°C ... +70°C
1510BT
Applications
q
General switching element for analog voltages
q
Electronic switch for power supply engines,
relays, magnetic valves, etc.
Typical Application
ú
1510 - electronic switch for loads on AC-lines
240VAC
IN
VDS
ú
1510
SW3
SW1
GND
Fuse
SW2
Load
VDS
IN
GND
Analog Switch IC
ú
1510
Preliminary Data Sheet
