13
See http://www.antenex.com for product additions and more product details
With
dual band antennas, you will experience out-
standing performance on both the VHF and UHF bands. Our
manufacturing techniques exercise tight control over all the
parameters necessary to build a mobile gain antenna for out-
standing performance on two nonharmonically related frequen-
cies. We have fully tested these antennas for both VSWR and
radiation efciency against popular competitive brands and we
are condent that they will deliver as much or more signal and
range than any competitive model regardless of price.
Dual Band & Special Applications
Ordering Guide - Clear, Easy & Sensible!
ADB450S = Black Low Prole Base Disguise Antenna, 450-470 MHz, Spring.
AD
Antenna Style
A = Low Prole Base Antenna
AD = Disguise Antenna (Cellular Look-Alike)
AHAM = Ham Scanner Antenna
ASCAN = Public Safety Scanner Antenna
C = Tall Coil Base Dual Band Antenna
B
Finish
Blank = Chrome Finish
B = Black Finish
450
Frequency
Frequency component of part number in bold below:
144/440
150-174
150/450
Blank
Open Coil
Blank = Open Phasing Coil
C = Closed Phasing Coil
S
Spring Option
S = Spring Option
Technical Data - Product Features & Information
Gain:
See model.
Frequency Range: See model.
VSWR:
<1.5:1 at center frequency.
Maximum Power:
200 watts
Impedance:
50 ohms
Mounting Base:
High temperature molded ABS with threaded brass insert.
Radiator:
17-7ph stainless steel with a centerless ground nish
or black chrome plate. Type 302 with an electropolished
or black chrome plate nish for the disguise series.
Coil Form:
3 dimensional precision machined delrin.
on C style dual band antennas.
Phasing Coils:
Silver plated tempered brass.
Contacts:
Gold plated push pin.
Mounts to:
3/4” hole, 3/8” hole, magnetic and mini-trunk mounts.
The Q27S mounts directly through the vehicle.

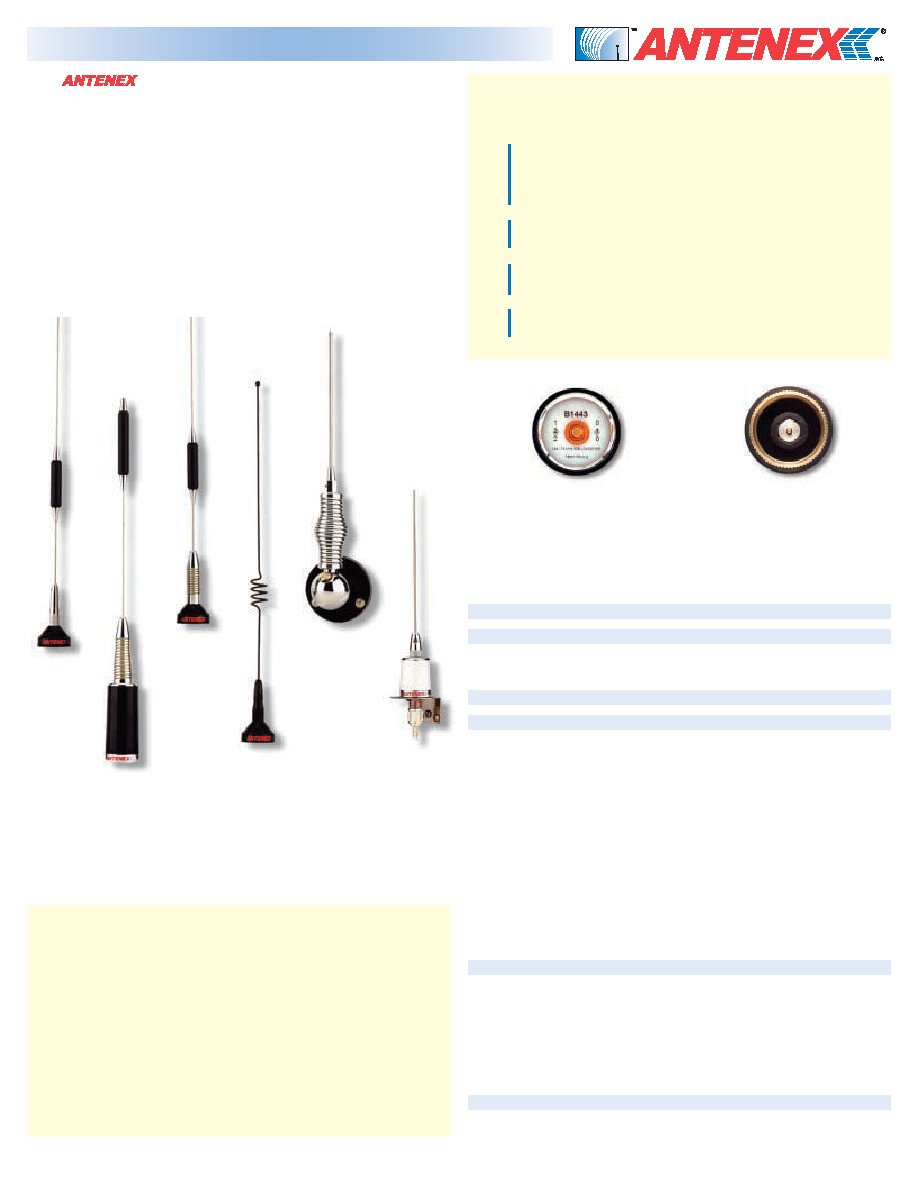

A150/450C
C150/450CS
ASCANCS
ADB150
Q27S
Model
Frequency
Gain
Radiator
MSRP
DUAL BAND ANTENNAS
Chrome Models
A150/450C
150-174/450-470 Unity Closed Collinear
30.51
C144/440C
144-148/440-450 2/5dB Closed Collinear
50.20
C150/450C
150-174/450-470 2/5dB Closed Collinear
50.20
C144/440CS 144-148/440-450 2/5dB Closed Collinear
60.18
C150/450CS 150-174/450-470 2/5dB Closed Collinear
60.18
Black Models
AB150/450C 150-174/450-470 Unity Closed Collinear
36.05
CB144/440C 144-148/440-450 2/5dB Closed Collinear
63.87
CB150/450C 150-174/450-470 2/5dB Closed Collinear
63.87
CB144/440CS 144-148/440-450 2/5dB Closed Collinear
80.13
CB150/450CS 150-174/450-470 2/5dB Closed Collinear
80.13
DISGUISE ANTENNAS (CELLULAR LOOK-ALIKE)
Chrome Model
AD150
150-174 MHz
Unity Short 1/4 Wave
27.60
Black Model
ADB150
150-174 MHz
Unity Short 1/4 Wave
32.85
SAIL BOAT MAST ANTENNA
MAV1602
4 ft. No ground plane model
43.50
SCANNER ANTENNAS
Chrome Model
ASCANC
150/450/800
Rx Only Closed Collinear
30.51
Black Model
ABSCANC
150/450/800
Rx Only Closed Collinear
35.88
Model
Description
MSRP
SPRING OPTION FOR ABOVE MODELS THAT BEGIN WITH “A”
AS
Chrome Spring for above add...
9.79
ASB
Black Spring for above add...
15.97
Other Models
Q27S
27-54 MHz Full Length Quarterwave
104.97
Stainless Steel Spring
Q27PT20PI
Q27 Wiring Harness, 20’RG58A/U Crimp
13.01
PL259 installed
Push Pin Contact
for “B” & “C” Models
Base Contact
on “A” Models
MAV1602
