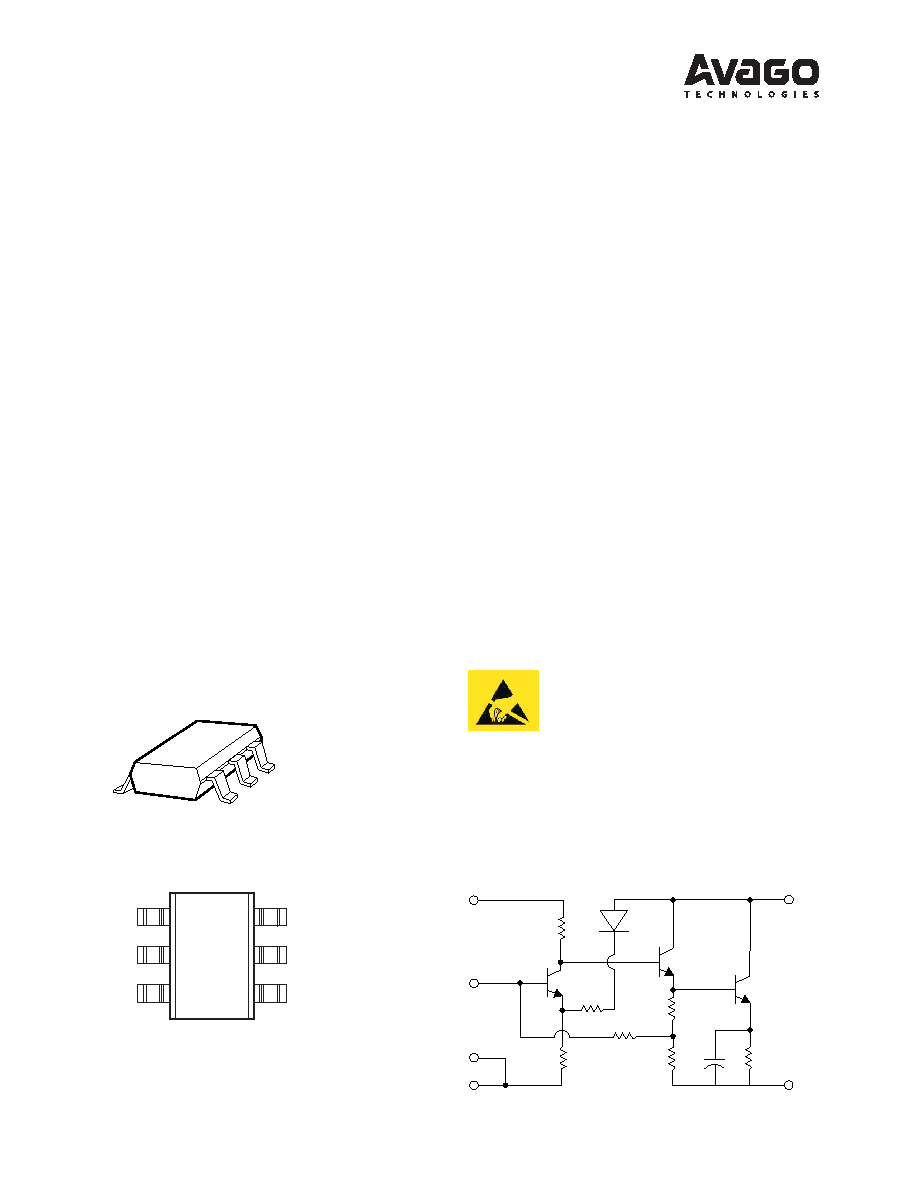

ABA-31563
3.5 GHz Broadband Silicon RFIC Amplifier
Data Sheet
Description
Avago’sABA-31563isaneconomical,easy-to-use,internally
50Ω matched, silicon monolithic broadband amplifier
that offers excellent gain and broadband response
from DC to 3.5 GHz. Packaged in an ultra-miniature
SOT-363 package, it requires half the board space of
a SOT-143 package.
At 2 GHz, the ABA-31563 offers a small-signal gain of
21.5 dB, output P1dB of 2.2 dBm and 13.1 dBm output
third order intercept point. It is suitable for use as
wideband applications. They are designed for low cost
gain blocks in cellular applications, DBS tuners, LNB and
other wireless communication systems.
ABA-31563 is fabricated using Avago’s HP25 silicon
bipolar process, which employs a double-diffused single
polysilicon process with self-aligned submicron emitter
geometry. The process is capable of simultaneous high
f
T and high NPN breakdown (25 GHz fT at 6V BVCEO). The
process utilizes industry standard device oxide isolation
technologies and submicron aluminum multilayer
interconnect to achieve superior performance, high
uniformity, and proven reliability.
Features
Operating Frequency DC ~ 3.5GHz
21.5 dB Gain
VSWR < 2.0 throughout operating frequency
2.2 dBm Output P1dB
13.1 dBm Output IP3
3.8 dB Noise Figure
Unconditionally Stable
Single 3V Supply (Id = 14 mA)
Lead-free
Applications
Amplifier for Cellular, Cordless, Special Mobile Radio,
PCS, ISM, Wireless LAN, DBS, TVRO, and TV Tuner
Applications
Surface Mount Package
SOT-363/SC70
Pin Connections and Package Marking
Simplified Schematic
Note:
Top View. Package marking provides orientation
and identification. “x” is the date code.
Attention:
Observe precautions for handling electrostatic
sensitive devices.
ESD Machine Model (Class A)
ESD Human Body Model (Class 1B)
Refer to Avago Application Note A004R:
Electrostatic Discharge Damage and Control.
Vcc
GND 3
1Kx
Input
GND 1
GND 2
Output
& Vcc
Vcc
Ground 1
Ground 2
Ground 3
RF
Input
RF
Output
& Vcc
