611 Industrial Way West, Eatontown, NJ 07724
tel: 732-460-0212 fax: 732-460-0214
sales@advanced-control.com
www.advanced-control.com
Frequency Range (min)
2 – 4
GHz
Sensitivity (min)
800
mV/mW
Flatness vs. Frequency (max)
0.2
±dB
Typical TSS
-51
dBm
Typical VSWR
2.3:1
Ratio
Nominal Video Capacitance
20
pF
NOTES:
Maximum input power: +14dBm (3dB guardband for +17dBm possible burnout)
Sensitivity is measured into an open circuit load (>10k ohm).
VSWR is measured at or below -20dBm input power level.
Video capacitance is used for RF bypass. This value can be changed if required for video response time. Contact the factory for more information.
ENVIRONMENTAL SPECIFICATIONS:
SCREENING:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Internal Visual per MIL-STD-883, Method 2017
Operating Temp: -55°C to +100°C
Temperature Cycle: -65°C to +100°C, 10 cycles
Storage Temp: -65°C to +100°C
Humidity: MIL-STD-202F, M103, Cond B
OPTIONAL HIGH-REL SCREENING (Ref MIL-PRF-38534):
Shock: MIL-STD-202F, M213, Cond B
Stabilization Bake per MIL-STD-883, Method 1008
Altitude: MIL-STD-202F, M105, Cond B
Temperature Cycle per MIL-STD-883, Method 1010
Vibration : MIL-STD-202F, M204, Cond B
Constant Acceleration per MIL-STD-883, Method 2001
Thermal Shock: MIL-STD-202F, M107, Cond A
Burn-in per MIL-STD-883, Method 1015
Temperature Cycle: MIL-STD-202F, M105C, Cond D
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009

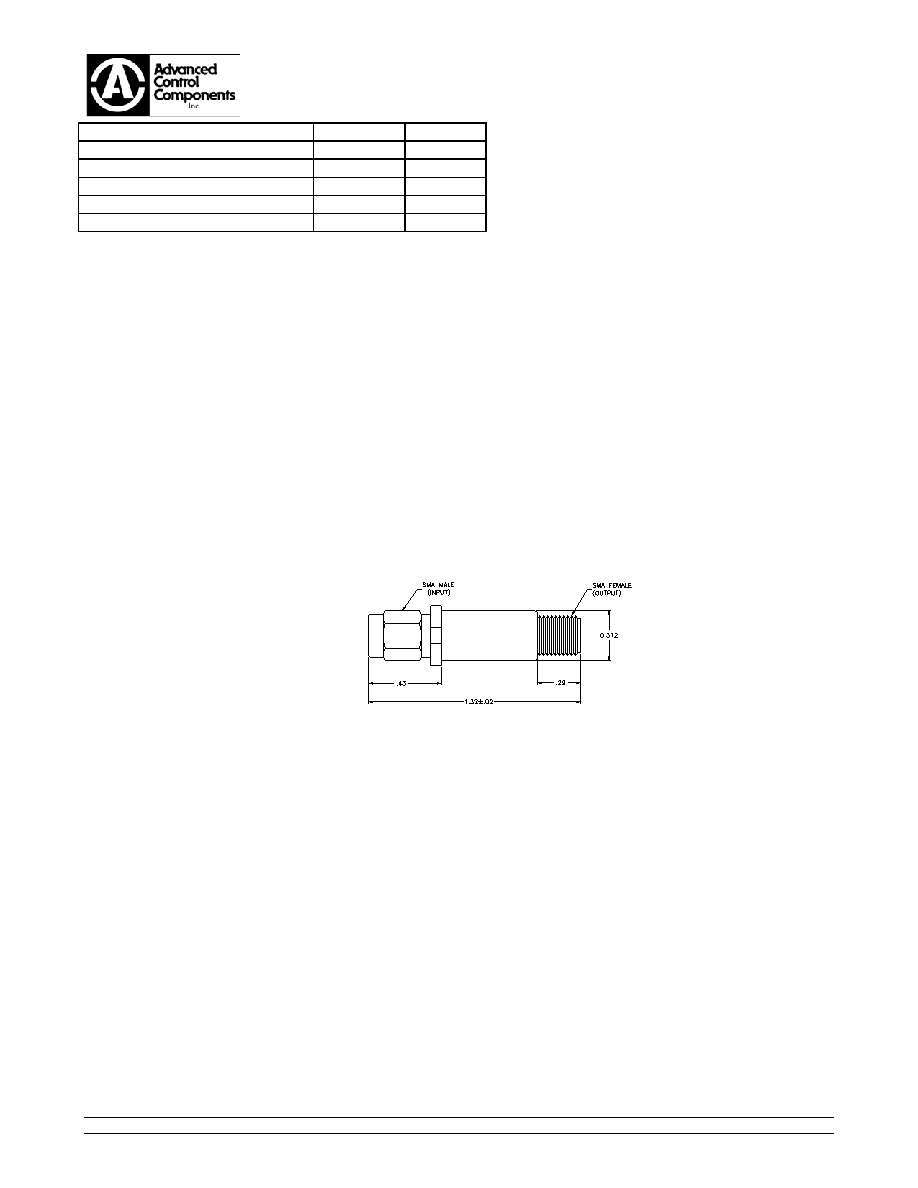

STANDARD CASE STYLE C3
(Optional Case Styles – C15)
PART NUMBER ORDERING INFORMATION:
Add desired polarity suffix: “N” for Negative, “P” for Positive (Ex: ACSP-1502N)
Add desired case style suffix: “C3” (Ex: ACSP-1502NC3)
Add “R” suffix: Reverse Connector Configuration (Ex: ACSP-1502NC3R) (SMA Female Input/SMA Male Output)
Add “-RC” suffix: RoHS-compliant (Ex: ACSP-1502NZC3-RC)
0109
ACTP-1502
COAXIAL TUNNEL DIODE DETECTORS
